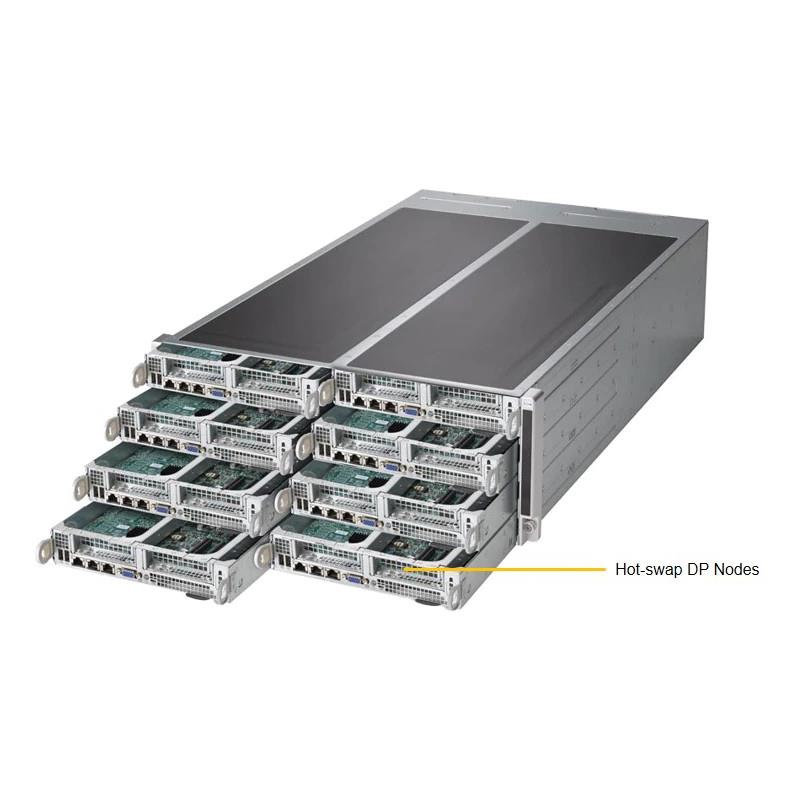

Supermicro SYS-F618R3-FT+ Twin Barebone Dual CPU, 8-Node
Server 4U Rackmount FatTwin with 8 Systems (Nodes) - Each Node Supports : Up to two Intel Xeon E5-2600 v4/v3 series - Supports up to 2TB ECC 3DS LRDIMM DDR4 up to 2400MHz memory in 16x 288-pin sockets - On-Board (per Node) : SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, 2x Gigabit Ethernet, VGA - Included (per Node) : 2x 3.5in Fixed SATA HDD Bays, 2x Riser Cards (1x RSC-R1UFF-E8R, 1x RSC-R1UFF-E8), 2x Heatsinks (SNK-P0047PS) - System includes : 2000W Redundant 80 Plus Platinum Level Certified Power Supply (4x PWS-2K04A-1R), 8x MBD-X10DRFF-IG Motherboard, 1x CSE-F418IF2-R2K04BP 4U Chassis - (Black) Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x8, 1x PCI-E 2.0 x4, or 2x PCI-E 3.0 x8 (optional)
4. I/O ports: 2 GbE, 1 Built-in video, 2 USB 3.0 ports
5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6. 2x 3.5" fixed drives
7. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-F618R3-FT+ Twin Barebone Dual CPU, 8-Node
| Motherboard | ||
| Motherboard | Super X10DRFF-IG | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per node) | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports | |
| VGA | 1x VGA port | |
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F418IF2-R2K04BP | |
| Dimensions and Weight | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 29" (737mm) | |
| Package | 28.35" (W) x 14.95" (H) x 42.38" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 200 lbs (90.72 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| 2x Network activity LEDs | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1x PCI-E 3.0 x8, 1x PCI-E 2.0 x4, or 2x PCI-E 3.0 x8 (optional) | |
| Drive Bays (per node) | ||
| Fixed | 2x 3.5" fixed drives | |
| System Cooling | ||
| Fans | 8x 8cm 9.5k RPM Rear fans | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vdc (UL/cUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
| +12V | Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | |
| Max: 83.3A / Min: 0A (100-127 Vac) | ||
| Max: 150A / Min: 0A (200-220 Vac) | ||
| Max: 165A / Min: 0A (220-230 Vac) | ||
| Max: 166.7A / Min: 0A (230-240 Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F618R3-FT+ (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRFF-IG | 8 | Super X10DRFF-IG Motherboard | |
| Motherboard / Chassis | CSE-F418IF2-R2K04BP | 1 | 4U Chassis | |
| Backplane | BPN-ADP-F418L | 8 | BPN;SASADP;SAS827-H8;H8DTT;cable req | |
| Cable 1 | CBL-0484L | 16 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-PWCD-0578 | 4 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Cable 3 | CBL-PWEX-0708 | 8 | 8 Pin to 2 SATA Power cable 55cm and 65cm. 18AWG,RoHS/REACH | |
| Manual | MNL-1765-QRG | 1 | Quick Reference Guide for F618R3-FT+ / FTPT+ | |
| Riser Card | RSC-R1UFF-E8 | 8 | RSC-R1UFF-E8 | |
| Riser Card | RSC-R1UFF-E8R | 8 | RSC-R1UFF-E8R | |
| Heatsink / Retention | SNK-P0047PS | 16 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| * Power Supply | PWS-2K04A-1R | 4 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH | |
| * Backplane | BPN-PDB-F418 | 2 | Fat Twin Mid-plane; support 2x PS; 4x MB hot-swap & over-current connection; Front panel connection and 4X PWM fan control | |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Power Supply | PWS-1K62P-1R | $ 377.50 | 0 | 1620W Platinum power supply | ||
| Riser Card | RSC-88-F1 and RSC-88-F2 | 0 | Dual slot PCIe Gen3 x8 riser card | |||
| Riser Bracket | MCP-120-00094-0N | $ 33.50 | 0 | Riser bracket | ||
| Cable | CBL-OTHR-0758 | 0 | 2x CBL-OTHR-0758 per dual x8 riser card set | |||
| Motherboard | X10DRFF-CTG | 0 | SAS3 onboard version, with Broadcom 3008 | |||
| Cable | CBL-SAST-0757 | $ 25.00 | 0 | INT MINI SAS HD to SAS 29px2 + 8p 2x4(5,12V) GPU PWR BLK | ||
| Software | SFT-OOB-LIC • | 8 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 8 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
