| System Memory |
| DIMM Sizes | 2GB, 4GB, 8GB |
| Memory Capacity | 2 DIMM slots |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1600MHz |
| Max total memory up to 8GB only |
| Memory Type | 1600/1333/1066 MT/s non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMs |
| Memory Voltage | 1.35V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI) |
| Quad LAN with Intel® Ethernet Controller I210-AT |
| SATA | SoC controller for 2 SATA3 (6 Gbps) ports |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Audio | ALC 888S HD Audio |
| Graphics | 0 ASPEED AST2400 BMC port(s) |
| 0 SoC port(s) |
| Intel HD Graphics via SoC |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| DOM | 1 Super DOM (Disk on Module) ports |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 7 USB 2.0 port(s) (4 via header; 2 rear; 1 Type A) |
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s) |
| Serial Port | 2 COM Port(s) (2 header) |
| TPM | 1 TPM Header |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Software | SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | SuperDoctor 5, IPMIView for Linux/Windows |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| UEFI 2.3.1 |
| BIOS Type | AMI UEFI |
| Product SKUs |

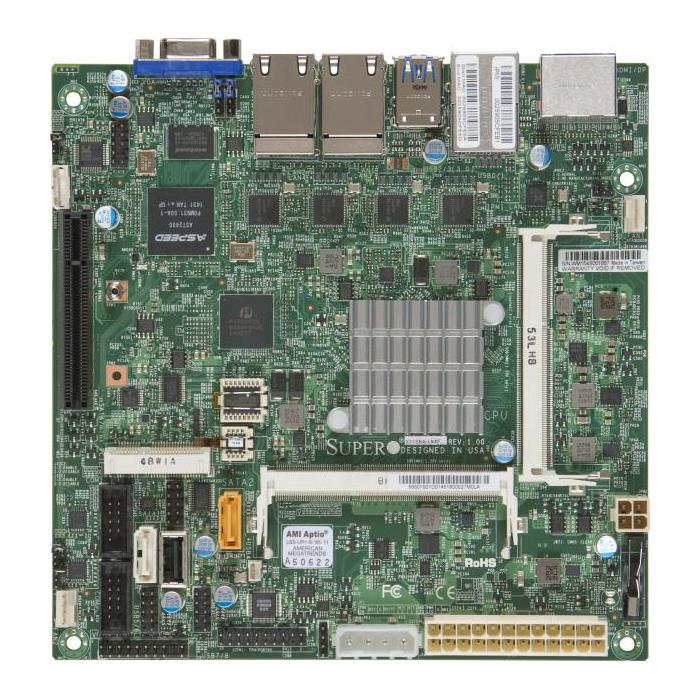

| Product SKUs | MBD-X11SBA-LN4F |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | Intel® Pentium™ Processor N3710 |
| Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDP |
| Core | Up to 4 cores, 4 threads / 2MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 2.0 x1 (in x8 slot) |
| 1 Mini-PCIe with mSATA support |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages |
| LED | Standby alert LED |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| FAN | 2x 4-pin fan headers (up to 2 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication |
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
