- Supermicro X11SBA-LN4F Motherboard Mini-ITX Intel Pentium N3710 SoC (System on Chip) Socket FCBGA 1170

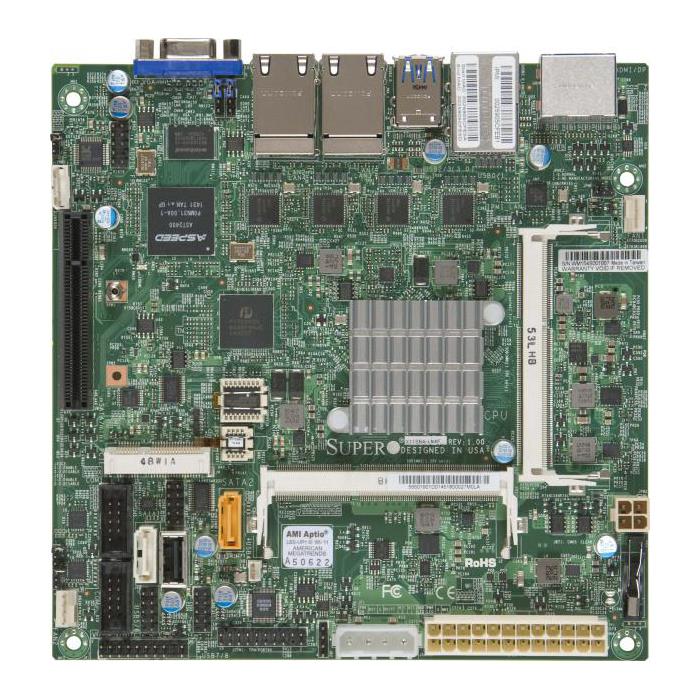

Supermicro X11SBA-LN4F Motherboard Mini-ITX Intel Pentium N3710 SoC (System on Chip) Socket FCBGA 1170
Handles up to 8GB DDR3-1600 in 2 SO-DIMM slots
Includes 1x PCIe 2.0 x1 slot, 1x Mini-PCIe slot (mSATA support)
Offers 2x SATA3 ports, SoC controller for 2 SATA3 (6 Gbps) ports
Embedded Intel Pentium N3710 processor, supports up to 6W TDP
Motherboard Mini-ITX Intel Pentium N3700 SoC (System on Chip) Socket FCBGA 1170 - Supports up to 8GB DDR3 SO-DIMM 1600MHz (2 slots) - On-Board : SATA 3.0 6Gbps from Intel® SoC, IPMI 2.0, 4x Gigabit LAN, HD Audio, VGA - MBD-X11SBA-LN4F-O (Retail Box)
1. Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
2. Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
3. 1 PCIe 2.0 x1 (in x8), 1 Mini-PCIe (mSATA support)
4. Quad GbE LAN with Intel® i210-AT
5. Supports 12V DC power input
6. System-on-Chip
7. 1 HDMI, 1 DP, Intel HD Graphics, VGA port for BMC
8. 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
9. I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
10. IPMI 2.0 with dedicated Port and KVM
Extra Specifications for Supermicro X11SBA-LN4F Motherboard Mini-ITX Intel Pentium N3710 SoC (System on Chip) Socket FCBGA 1170
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Capacity | 2 DIMM slots | |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1600MHz | ||
| Max total memory up to 8GB only | ||
| Memory Type | 1600/1333/1066 MT/s non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMs | |
| Memory Voltage | 1.35V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI) | |
| Quad LAN with Intel® Ethernet Controller I210-AT | ||
| SATA | SoC controller for 2 SATA3 (6 Gbps) ports | |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Audio | ALC 888S HD Audio | |
| Graphics | 0 ASPEED AST2400 BMC port(s) | |
| 0 SoC port(s) | ||
| Intel HD Graphics via SoC | ||
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) port(s) | |
| DOM | 1 Super DOM (Disk on Module) ports | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 7 USB 2.0 port(s) (4 via header; 2 rear; 1 Type A) | ||
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s) | |
| Serial Port | 2 COM Port(s) (2 header) | |
| TPM | 1 TPM Header | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Software | SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | SuperDoctor 5, IPMIView for Linux/Windows | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| UEFI 2.3.1 | ||
| BIOS Type | AMI UEFI | |
| Product SKUs | ||
| Product SKUs | MBD-X11SBA-LN4F | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor | ||
| CPU | Intel® Pentium™ Processor N3710 | |
| Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDP | ||
| Core | Up to 4 cores, 4 threads / 2MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 2.0 x1 (in x8 slot) | |
| 1 Mini-PCIe with mSATA support | ||
| PC Health Monitoring | ||
| Voltage | VBAT, System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages | |
| LED | Standby alert LED | |
| CPU / System Overheat LED | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| FAN | 2x 4-pin fan headers (up to 2 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication | ||
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector | |
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
