- Supermicro CSE-113MFAC2-605CB Server Chassis 1U Rackmount

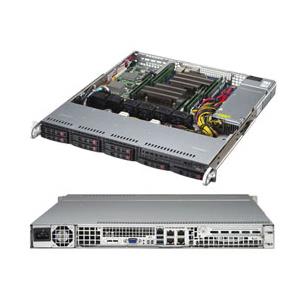

Supermicro CSE-113MFAC2-605CB Server Chassis 1U Rackmount
Includes 1 full-height expansion slot
Offers 8x 2.5" hot-swap SAS/SATA drive bays
Chassis accepts ATX 12" x 10" motherboard sizes
Equipped with 600W Platinum level power supply with PMBus
Rackmount 1U with 600W Power Supply Platinum Level Certified, for motherboard up to Dual or Single Intel or AMD processor - Includes : 8x 2.5in Hot-Swap SAS / SATA Bays, 1 Full-Height / Full-length Expansion Slot, 1x Optional slim DVD-ROM drive bay, Rails Kit - SC113MFAC2-605CB (Black)
1. •1U Chassis for motherboard support size: ATX 12" x 10"
2. 8 x 2.5" hot-swap SAS/SATA drive bay
3. 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
4. 1U 600W platinum efficiency multiple output power supply w/PMBus
5. 1 full height expansion slot(s)
6. 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling
Extra Specifications for Supermicro CSE-113MFAC2-605CB Server Chassis 1U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 600W platinum efficiency multiple output power supply w/PMBus | |
| Power Efficiency | 92% | |
| Total Output Power and Input | 600W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 49A / Min: 0.5A (100Vac - 240Vac) | |
| +5V | Max: 18A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 1U Chassis for motherboard support size: ATX 12" x 10" | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 19.98" (507 mm) | |
| Gross Weight | 29.5 lbs (13.38 kg) | |
| Packaging (W x H x L) | 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1 full height expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 2.5" hot-swap SAS/SATA drive bay | |
| Backplane | ||
| Backplane | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Systems Cooling | ||
| Fans | 4 x 40x28mm PWM fan(s) | |
| Optional 2 x fans for AOC cooling | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Air Shroud | MCP-310-19007-0N | $ 21.50 | 0 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | ||
| Air Shroud | MCP-310-19009-0N | $ 18.50 | 0 | SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB | ||
| Air Shroud | MCP-310-19015-0N | $ 20.00 | 0 | SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH | ||
| 2.5" HDD Bracket | MCP-290-00036-0B | $ 20.00 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| Mounting Rail | CSE-PT52L | $ 59.00 | 0 | Sliver chassis rail set for SC813M,515,113M | ||
| Tray(s) | MCP-220-00087-0B | $ 34.00 | 0 | Black USB tray for slim DVD bay |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
