| Main Specifications |

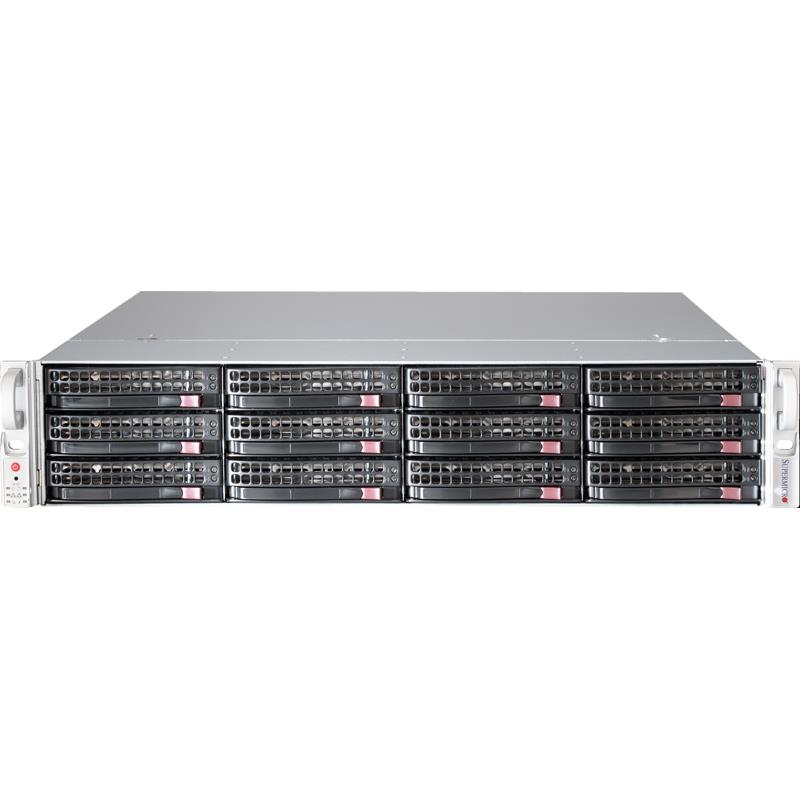

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89mm) x Width 17.2" (437mm)x Depth 25.5" (647mm) |
| Color | Black |
| Form Factor | 2U chassis |
| Weight | 60 lb (27.22 kg) |
| PC Health Monitoring |
| LED | N/A |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| Drive Bays |
| Hot-swap | Up to 12 x 3.5" hot-swap HDD bays for JBOD solution |
| System Cooling |
| Fans | 3 x 80x38mm hot-swap cooling fan |
| FAN-0126L4, FAN-0126L4, FAN-0126L4 |
| SAS / SATA Backplane |
| SAS / SATA Backplane | BPN-SAS3-826EL1 (SAS3 12Gb/s single expander backplane, with LSI SAS3 expander, support 12x 3.5" SATA3/SAS2/SAS3 drives, with 4x mini-SAS3 HD connectors) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 740W (1+1) Redundant high-efficiency power supply with PMBus |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
| Operating Environment (System) |
| Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Temperature Range | -40C ~ 60C (-40F ~ 140F) |
| Operating Temperature Range | 5C ~ 35C (41F ~ 95F) |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Standard Parts List |
| Accessory | CSE-PTJBOD-CB3 |
| Chassis | CSE-826BE1C-R741JBOD |
| Power Distributor | PDB-PT826-8824 |
| Rear Window/Kit | MCP-240-82608-0N, MCP-240-82608-0N, MCP-240-82608-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29001-0N, MCP-310-29001-0N, MCP-310-29001-0N |
| Backplane | BPN-SAS3-826EL1 |
| Mounting Rails | MCP-290-00053-0N, MCP-290-00053-0N, MCP-290-00053-0N |
| Parts List |
| Cables | CBL-CDAT-0601, CBL-SAST-0532, CBL-NTWK-0587 |
| Power |
| Power | PWS-741P-1R, PWS-920P-SQ, PWS-920P-SQ |
