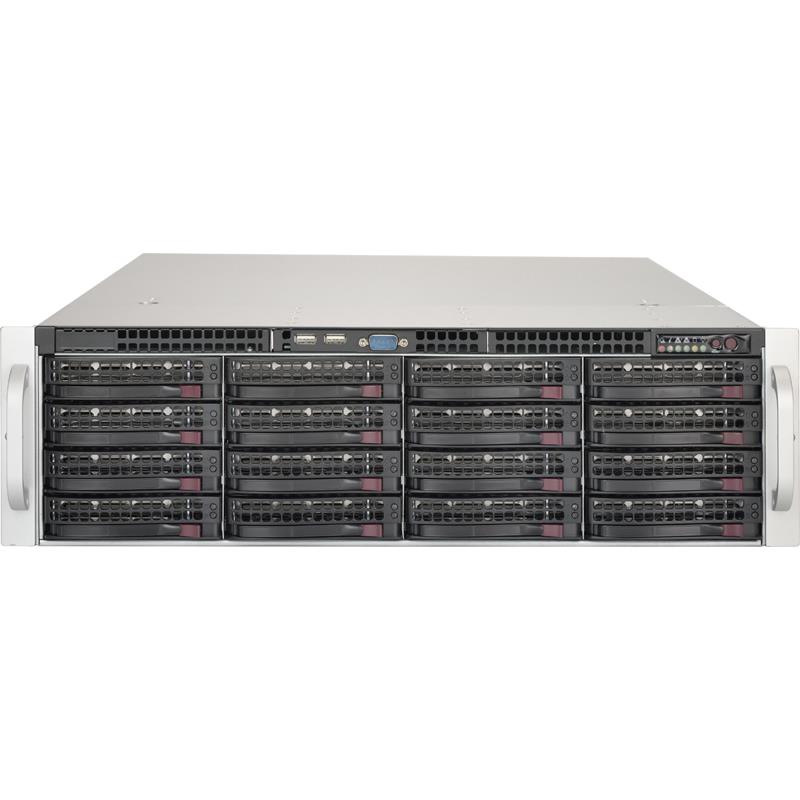

Supermicro CSE-836BE1C-R1K03JBOD Server Chassis 3U Rackmount

• Ideal for Cloud backup
• 3U Storage JBOD Chassis
• 5 hot-plug redundant cooling fans
• Up to 16 x 3.5 hot-swap HDD bays

Rackmount 3U Storage JBOD Chassis - Includes : 16x 3.5in Hot-Swap HDD bays, Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput, 4x Mini-SAS HD ports for Internal / External Cascading Expander, 1x IPMI port for Remote System Power on/off or wake-on-LAN and system monitoring, Rails Kit, 1000W Redundant 80 Plus Titanium Level Certified Power Supply - (Black)

• 5 hot-plug redundant cooling fans
• 1000W (1+1) 96% efficient Titanium level power supplies
• 3U Storage JBOD Chassis with capacity 16 x 3.5 hot-swappable HDDs bays
• Cloud Backup, Data Replication, or High Density Archive Storage Applications
• Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
• 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
• 1x IPMI port for Remote System Power on/off, wake-on-LAN and system monitoring 5. Support NTP for time synchronization & RTC battery backup

Extra Specifications for Supermicro CSE-836BE1C-R1K03JBOD Server Chassis 3U Rackmount

Main Specifications
Dimensions (WxDxH)	Height 5.2" (132mm)x Width 17.2" (437mm)x Depth 25.5" (647mm)
Color	Black
Form Factor	3U chassis
Device Type	SuperChassis
Weight	80 lb (36.29 kg)
PC Health Monitoring
LED	N/A
Front Panel
Buttons	Power On/Off button, System Reset Button, Unit Identification (UID) button
LEDs	1 Network Activity LEDs
Drive Bays
Hot-swap	Up to 16 x 3.5" hot-swap HDD bays for JBOD solution
Peripheral Drives	MCP-290-00007-01, MCP-290-00007-01
SAS / SATA Backplane
SAS / SATA Backplane	BPN-SAS3-836EL1 (SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" drive slots connected through 4 mini-SAS3 HD cable connectors)
System Cooling
Fans	2x 8cm hot-swap exhaust fans & air shroud
	3x 8cm hot-swap redundant PWM cooling fans
	FAN-0126L4, FAN-0125L4, FAN-0126L4, FAN-0125L4, MCP-340-00036-0N, MCP-340-00038-0N
Operating Environment (System)
Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Temperature Range	-40C ~ 60C (-40F ~ 140F)
Operating Temperature Range	5C ~ 35C (41F ~ 95F)
Environmental Parameters
Operating Humidity	5 - 95% (non-condensing)
Power Supply
Certification	80PLUS Titanium Level Certified
Power Supply	1000W Titanium Level (96%) High-efficiency AC-DC Redundant power supplies with PMBus and I2C
	PWS-920P-SQ, PWS-1K03A-1R
Regulatory (Power Supply)
Power Supply Safety / EMC	USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant
Parts List - (Items Included)
Air Shroud	MCP-310-39001-0N, MCP-310-39001-0N
Backplane	BPN-SAS3-836EL1
Mounting Rails	MCP-410-00007-0N, MCP-290-00053-0N, MCP-290-00053-0N, MCP-410-00007-0N, MCP-290-00115-0N, MCP-290-00113-0N
Parts List
Cables	CBL-0296L, CBL-NTWK-0587, CBL-SAST-0532, CBL-CDAT-0601, CBL-0160L, CBL-0088L, CBL-0071L, CBL-0071L, CBL-0263L
Standard Parts List
Chassis	CSE-836BE1C-R1K03JBOD
Drive Tray	MCP-290-83605-0N, MCP-220-00007-01, MCP-220-00007-01, MCP-220-00075-0B, MCP-220-00075-0B, MCP-290-83605-0N, MCP-220-00024-1B, MCP-220-00081-0N
Fan Holder	MCP-320-00035-0N, MCP-320-00034-0N, MCP-320-00017-0N
Accessory	CSE-PTJBOD-CB3
Power Distributor	PDB-PT826-8824
Rear Window	MCP-240-83605-0N, MCP-240-83605-0N

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
