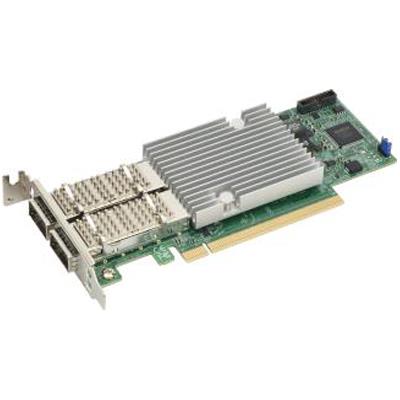

Supermicro AOC-S100G-B2C Network Adapter Compact Size Low-Profile Card Dual QSFP28 Connectors 100GbE
Thermal Sensor for asset management
Broadcom BCM57508 Ethernet controller
Dual QSFP28 for high-speed 100GbE connectivity
PCI-E 4.0 x16 (backward compatible with PCI-E 3.0 x16)
Network Adapter Base on Broadcom NetXtreme E-Series BCM57508 100Gbps Controller, Dual QSFP28 Connectors, PCI-E 4.0 x 16 (16GT/s) Interface Backward Compatible to PCI-E 3.0 x16, Compact size Low-Profile Standard Form Factor - RoHS Compliant 6/6 (AOC-S100G-B2C-O)
Dual Port QSFP28 Connector
Low-Profile, Short Length Standard Form Factor
PCI-E 4.0 x16 backward compatible to PCI-E 3.0 x16
Broadcom BCM57508 Ethernet Controller
Asset Management Feature with thermal sensor
IEEE 1588 PTP and IEEE 802.1AS
Energy Efficient Ethernet IEEE Std 802.2az
Truflow
NPAR
Low Latency RDMA over Converged Ethernet (RocE v1 and v2)
VxLAN, NVGRE and Geneve
NetQueue, VMQueue and MultipleQueue
Jumbo Frames up to 9600-Bye
NC-SI for IPMI support
Extra Specifications for Supermicro AOC-S100G-B2C Network Adapter Compact Size Low-Profile Card Dual QSFP28 Connectors 100GbE
| Main Specifications | ||
| Device Type | 100Gb/s Ethernet Adapter | |
| Form Factor | Compact size low-profile standard form factor | |
| Interface | PCI-E 4.0 x 16 (16GT/s) interface | |
| Dimensions (WxDxH) | 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |
| Connectivity | ||
| Connectors | Dual Port QSFP28 Connector | |
| Networking | ||
| Host Interface | PCI-E v4.0 (16GT/s), Function level Rest (FLR) support, Message Signal Interrupt (MSI-X) | |
| Networking Features | Jumbo Frames (up to 9600-byte), 802.3x flow control, Link Aggregation (802.3ad), Virtual LANs 802.1q VLAN tagging, Configurable Flow Acceleration, IEEE 1588 and Time Sync, RDMA over Converged Ethernet (RoCE) | |
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS) | |
| Flow Processing | Flow Processing Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT, Mirroring | |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue, Support for 128 Virtual Functions, VXLAN, NVGRE, Geneve, Edge Virtual Bridging (EVB) | |
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb), Enhanced transmission selection (ETS; IEEE802.1Qau), Quantized congestion Notification (QCN; IEEE802.1Qau), Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz), 8 traffic classes per port; fully DCB compliant per 802.1Qbb | |
| Manageability | Network Controller Sideband Interface (NC-SI), PXE and iSCSI boot, Asset Management with Thermal Sensors | |
| Specification | ||
| NIC partitioning (NPAR) | 8 Physical Functions, Partitioning control via sideband communication, Stateless offload configuration per partition, VEB/VEPA support | |
| RDMA over Converged Ethernet (RoCE) | RoCEv1 and RoCEv2, Data Center Bridging with RoCE, Up to 126 outstanding RDMA Reads or Atomics, Congestion Avoidance (RoCE flows tracking and rate adjustment) | |
| Operating Conditions | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Power | ||
| Power Savings | ACPI compliant power management, PCI Express Active State Power Management (ASPM), Ultra low-power mode, Pass-through Energy Efficient Ethernet (IEEE802.3az-2010) | |
| Power Consumption | 19.51W (MAX) | |
| Miscellaneous | ||
| Environmental Compliance | RoHS Compliant 6/6 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
