| Motherboard |

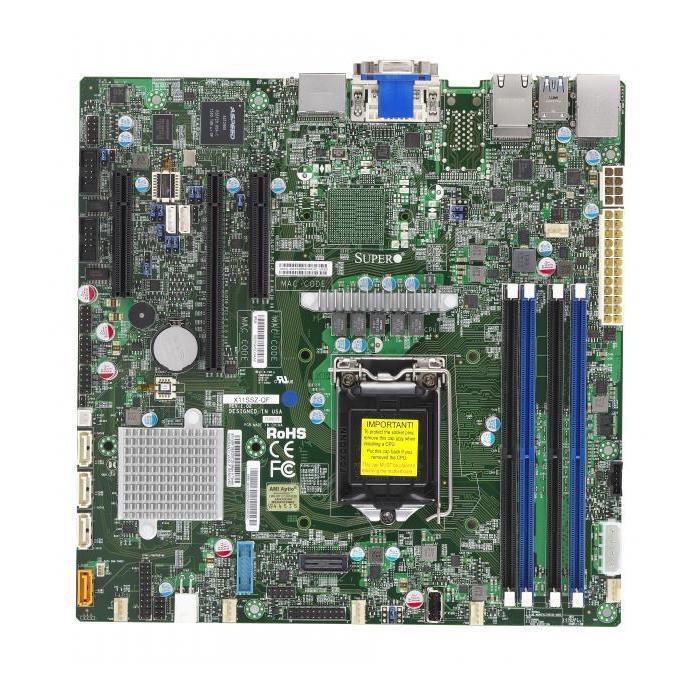

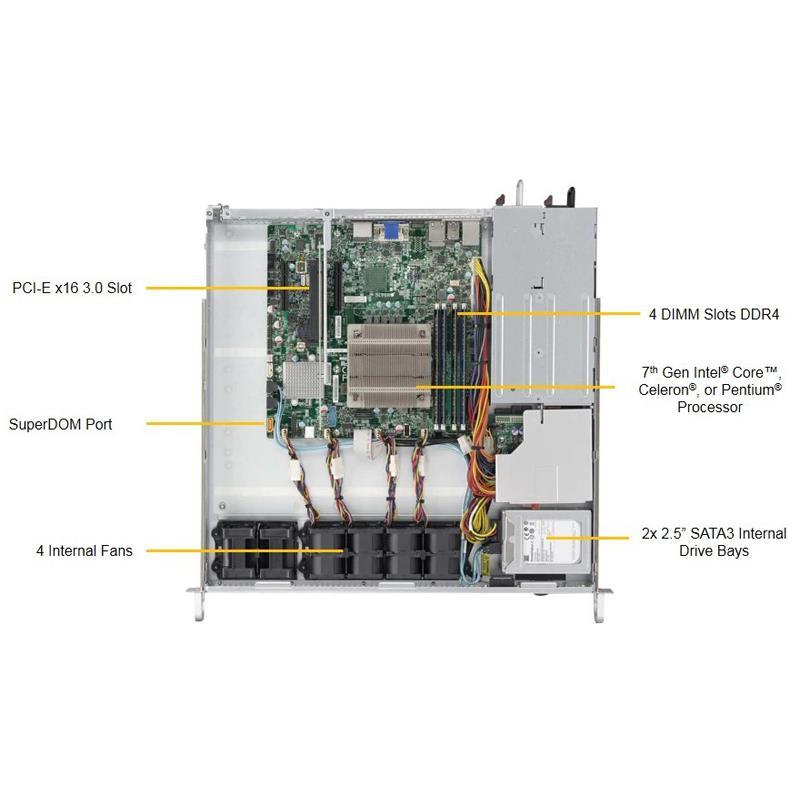

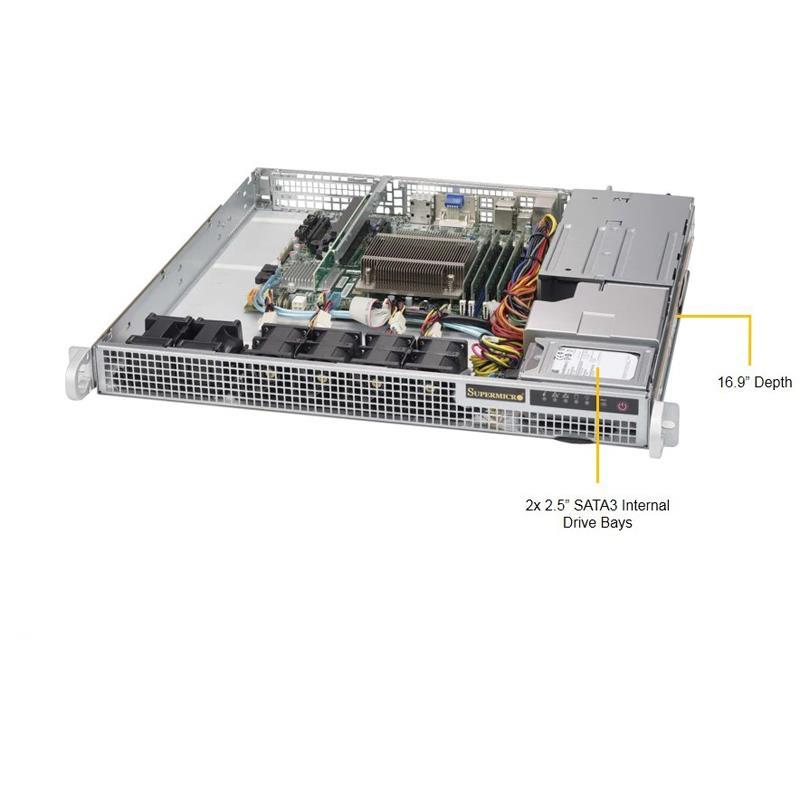

| Motherboard | Super X11SSZ-QF |
| Processor/Cache |
| CPU | Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP |
| Single Socket H4 (LGA 1151) |
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors |
| System Memory |
| Memory Capacity | 4x 288-pin DDR4 DIMM slots |
| Up to 64GB DDR4 Non-ECC UDIMM |
| Memory Type | 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | Intel® Q170 Express chipset |
| SATA | SATA3 (6Gbps) via Intel® Q170 Express controller |
| RAID 0, 1 support |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers |
| Audio | RealTek ALC 888S High Definition Audio |
| Video | ASPEED AST2400 BMC and Intel HD Graphics 530 |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) ports; RAID 0, 1 |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear) |
| 3 USB 2.0 ports (2 rear + 1 Type A) |
| Video/Display | 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400 |
| 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM |
| Serial Port / Header | 2 serial headers |
| SuperDOM | 1 SuperDOM (Disk on Module) port with built-in power |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 3.0 |
| UEFI 2.3.1 |
| Management |
| Software | Watch Dog |
| NMI |
| AMT |
| IPMI 2.0 with KVM support |
| vPro |
| SuperDoctor® 5 |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Keyboard Wakeup from Soft-Off |
| CPU Fan auto-off in sleep mode |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-514-407C-1P |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 16.9" (429mm) |
| Package | 8" (H) x 24" (W) x 24" (D) |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) |
| Net Weight: 17.6 lbs (8 kg) |
| Available Colors | Black |
| Front Panel |

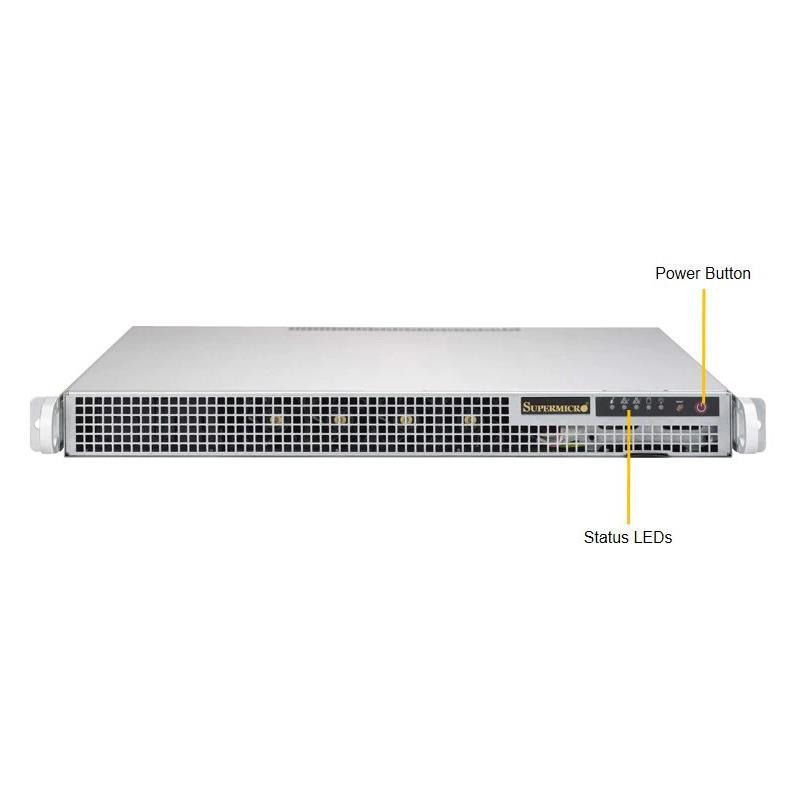

| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| 2 Network activity LEDs |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 (in x16 slot) |
| Drive Bays |
| Internal | 2 Fixed 2.5" SATA3 drive bays |
| System Cooling |
| Fans | 4x 40x56mm PWM fan; 2x fans for AOC cooling |
| Power Supply |
| Power Supply | 400W Platinum level power supply with PMBus and I2C |
| AC Input | 400W: 100-240 V, 50-60 Hz |
| DC Output +5V standby | 3 Amp |
| DC Output +12V | 33 Amp |
| Certification | Platinum Level |
| PC Health Monitoring |
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Total of 6 fan headers supporting up to 6 fans |
| 6 fans with tachometer status monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I 2 C temperature sensing logic |
| Thermal Monitor 2 (TM2) support |
| PECI |
| LED | UID/Remote UID |
| Suspend static indicator LED |
| System Information LED |
| Other Features | Chassis intrusion detection |
| Chassis intrusion header |
| RoHS, Halogen Free |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product SKUs |
| Product SKUs | SuperServer 1019S-M2 (Black) |
