- Supermicro SYS-5029S-TN2 Mini-Tower Single Intel Processor Barebone

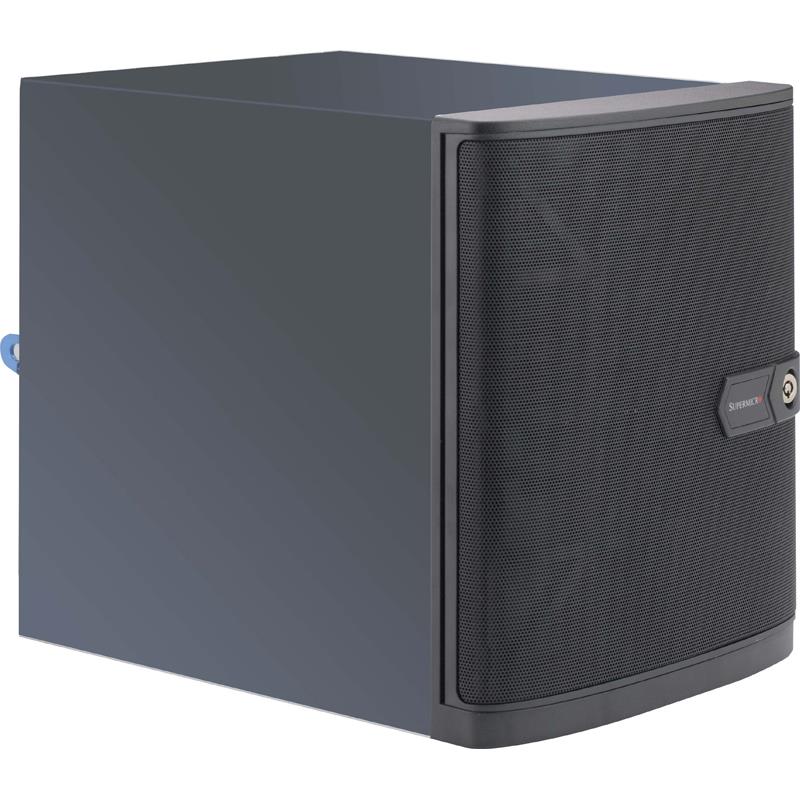

Supermicro SYS-5029S-TN2 Mini-Tower Single Intel Processor Barebone
• Embedded, Compact Mini Tower
• 3 Independent Displays
• M.2 slot, vPro
Mini Tower Socket H4 (LGA 1151) for Intel 7th/6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors - Supports up to 32GB DDR4 Non-ECC UDIMM up to 2133MHz (2x 260-pin DDRRDd4 SODIMM slots) - On-Board : SATA3 6Gbps Controller (RAID), 2x Gigabit LAN, HD Audio - Includes : 4x 3.5in Hot-swap drive bays, 2x 2.5in internal drive bays, Optionally 1x slim DVD-ROM drive bay (shared with 1x 2.5in internal drive bay), 1U 250W Flex ATX Multi-output Bronze Power Supply - MBD-X11SSV-Q + CSE-721TQ-250B Mini Tower Chassis (Black)
This product is no longer available.
1. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
2. 4 Hot-swap 3.5" drive bays, 2 fixed 2.5" drive bays, support total of 5 hard drives
3. 1 PCI-E 3.0 x16 slot, 1 Mini-PCIe with mSATA support, 1 M.2 (M key 2242/2280 PCI-E 3.0 x4)
4. Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2400MHz; 2 DIMM slots
5. 1 GbE LAN with Intel® i210-AT 1 GbE LAN with Intel® PHY i219LM
6. HDMI, DP (Display Port), DVI-I, 3 Independent Displays
7. 350W Flex ATX Multi-output Gold Power Supply
8. 7-year life cycle
Extra Specifications for Supermicro SYS-5029S-TN2 Mini-Tower Single Intel Processor Barebone
| Motherboard | ||
| Motherboard | Super X11SSV-Q | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) | |
| Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDP | ||
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors | |
| System Memory | ||
| Memory Capacity | 2x 260-pin DDR4 SODIMM slots | |
| Up to 32GB DDR4 Non-ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | Intel® Q170 Express Chipset | |
| SATA | Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10 | |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers | ||
| Audio | RealTek ALC 888S High Definition Audio | |
| Input / Output | ||
| Serial ATA | 5 SATA 3.0 ports (6Gbps) including 1 mSATA | |
| Raid 0, 1, 5, 10 | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 4 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (front) | ||
| 1 USB 2.0 Type A | ||
| Audio | 2 port jack | |
| Video/Display | 1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays | |
| Serial Port / Header | 2 COM ports (2 rear) | |
| DOM | SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM 20-pin Header | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| AMT | ||
| vPro | ||
| SuperDoctor® 5 | ||
| Chassis | ||
| Form Factor | Mini Tower | |
| Model | CSE-721TQ-350B | |
| Dimensions and Weight | ||
| Height | 9.45" (240mm) | |
| Width | 8.27" (210mm) | |
| Depth | 11" (279mm) | |
| Weight | Gross Weight: 15 lbs (6.8 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 slot | |
| 1 Mini-PCIe with mSATA support | ||
| M.2 | M key 2242/2280 PCI-E 3.0 x4 | |
| Drive Bays | ||
| HDD | 4 Hot-swap 3.5" drive bays | |
| 2 internal 2.5" drive bays | ||
| Peripheral | 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" drive bay) | |
| Power Supply | ||
| Power Supply | 350W Flex ATX Multi-output Power Supply | |
| AC Voltage | 100 - 240V, 50 - 60Hz | |
| +5V | Max:15 Amp; Min:0.2 Amp | |
| +12V | Max:28 Amp; Min:0.1 Amp @100V-240V | |
| -12V | Max: 0.3 Amp Min: 0.05 Amp | |
| +3.3V | Max: 10 Amp Min: 0.1 Amp | |
| 5VSB | Max: 2 Amp Min: 0.05 Amp | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS | |
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 3.0 | ||
| UEFI 2.3.1 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5029S-TN2 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSV-Q | 1 | Super X11SSV-Q Motherboard | |
| Motherboard / Chassis | CSE-721TQ-350B | 1 | Mini Tower Chassis | |
| Backplane | CSE-SAS-733TQ | 1 | 4x3.5\" SAS2/SATA3 backplane w/SES-II | |
| Cable 1 | CBL-0473L | 4 | SATA,INT,ROUND,ST-ST,21CM,30AWG | |
| Cable 2 | CBL-0157L | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG | |
| Parts | MCP-260-00070-1N | 1 | Standard I/O Shield for X11SSV-Q with EMI Gasket | |
| Power Supply | PWS-353-1H | 1 | 1U Flex ATX 350W Multi-output Gold Power Supply |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| DVD-RW | DVM-TEAC-DVDRW-SBT3 | 0 | BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS/REACH,PBF | |||
| DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD kit | ||
| CPU Heatsink Fan | SNK-P0046A4 | $ 41.50 | 0 | 2U ACTIVE CPU HS FOR INTEL LGA1156 | ||
| Power Cable | CBL-PWEX-0645 | $ 18.50 | 0 | Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
