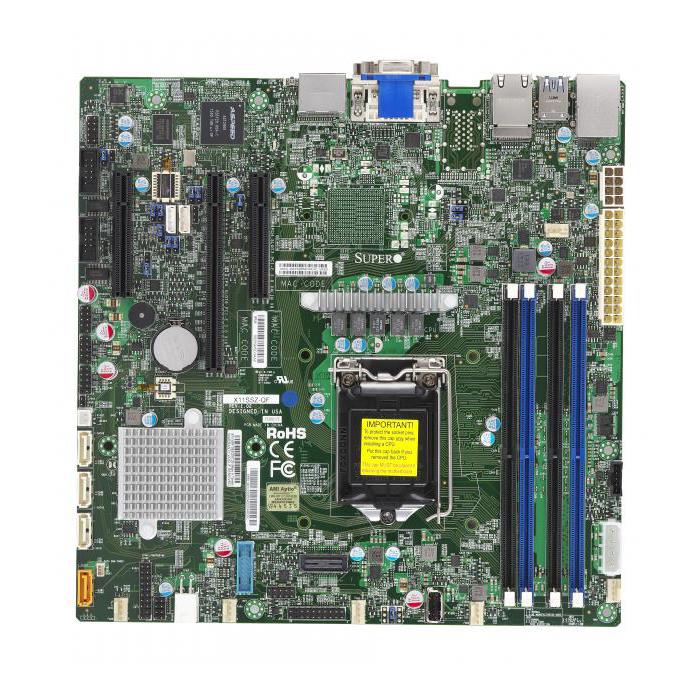

Supermicro X11SSZ-QF Motherboard for 6th Gen Core i7/i5/i3
4 SATA3 (6Gbps) ports with RAID 0/1/5/10
Remote management via IPMI and AMT vPro
Intel Q170 Express chipset for enterprise features
I/O: 2 DP, 1 DVI-I, VGA for BMC, SATA DOM, 2 COM, TPM 1.2, HD Audio
Motherboard micro-ATX Socket H4 (LGA 1151) for Intel 6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors - Supports up to 64GB DDR4 Non-ECC UDIMM up to 2133MHz (4x 288-pin slots) - On-Board : SATA3 6Gbps from Intel® Q170 (RAID), IPMI 2.0, 2x Gigabit LAN, HD Audio, VGA - MBD-X11SSZ-QF-O (Retail Box)
1. Supports 12V DC power input
2. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
3. Intel® Q170 Express chipset
4. Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
5. 1 PCIe 3.0 x16 2 PCIe 3.0 x4 (in x8 slot)
6. Dual GbE LAN w/ Intel i219LM + i210AT
7. 4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
8. I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
9. 2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
10. IPMI, AMT vPro
Extra Specifications for Supermicro X11SSZ-QF Motherboard for 6th Gen Core i7/i5/i3
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Memory Capacity | 4 DIMM slots | |
| Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | Intel® Q170 Express | |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT | |
| Single LAN with Intel® PHY I219LM LAN controller | ||
| SATA | Intel® Q170 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| 1 Intel® HD Graphics port(s) | ||
| 3 Independent Displays, VGA is from BMC. | ||
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) port(s) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 3.2 Gen1 port(s) (2 via header) | ||
| 9 USB 2.0 port(s) (2 rear; 6 via header; 1 Type A) | ||
| Video Output | 1 VGA port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s) | |
| Serial Port | 2 COM Port(s) (2 header) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 3.0 | ||
| UEFI 2.3.1 | ||
| BIOS Type | AMI UEFI | |
| Product SKUs | ||
| Product SKUs | MBD-X11SSZ-QF | |
| Physical Stats | ||
| Form Factor | Micro-ATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | Intel® Celeron®, Intel® Pentium®, Intel® 6th Generation Core™ i3 series, Intel® 7th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series | |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP | ||
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors | |
| Expansion Slots | ||
| PCIe | 2 PCIe 3.0 x4 (in x8 slot) | |
| 1 PCIe 3.0 x16 (in x16 slot), | ||
| Management | ||
| Software | SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0 , AMT, vPro, Watchdog | |
| System Management Software | SuperDoctor 5, IPMIView for Linux/Windows | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 1.2V (VDIMM), +5V standby, +5V, +3.3V, +12V, +1.8V | |
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| +5V Standby alert LED | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| I2C temperature sensing logic | ||
| FAN | 6x 4-pin fan headers (up to 6 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication | ||
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology | |
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
