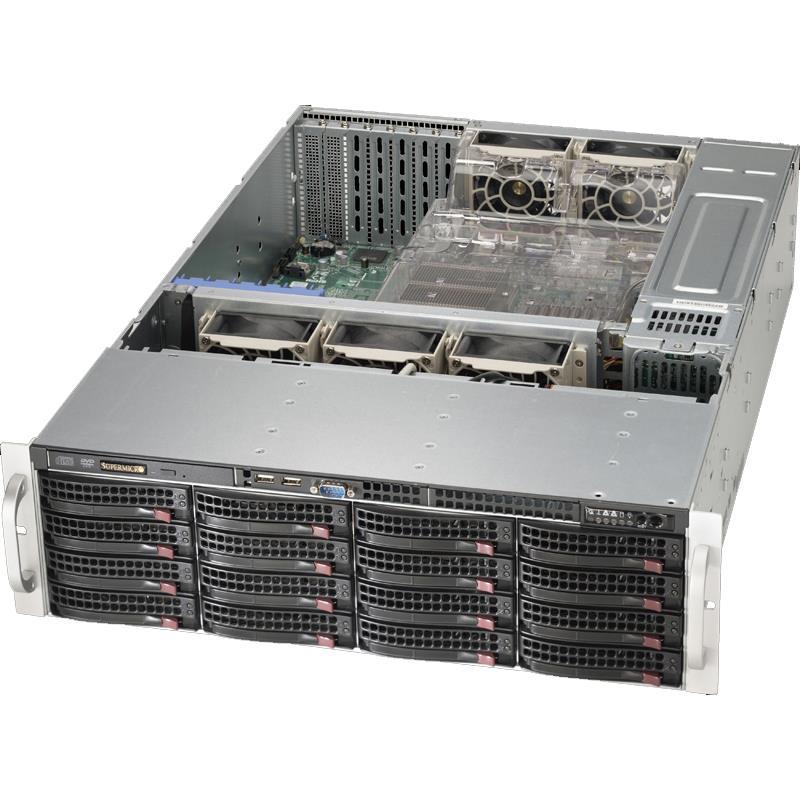

Supermicro CSE-836BE2C-R1K03B Server Chassis 3U Rackmount
• Support Intel and AMD processors
• 2x hot-swap exhaust fans & air shroud
• Chassis supports motherboard E-ATX/ATX
• 16-port SAS 12Gbps dual-expander backplane
Rackmount 3U w/ Redundant 1000W Titanium Level Power Supply - Includes : 16x 3.5in Hot-Swap SAS/SATA Drive bays w. SES2, Dual SAS3 (E2C) expander solutions, 7 full-height & full-length expansion slot(s) - Can be configured as "JBOD or Headunit" - (Black)
1. 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX
2. 16 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
3. 16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
4. 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
5. 7 full-height & full-length expansion slot(s)
6. 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud
Extra Specifications for Supermicro CSE-836BE2C-R1K03B Server Chassis 3U Rackmount
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 800W with Input 100 - 127Vac | |
| 1000W with Input 200 - 240Vac | ||
| 1000W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Gold Finger (19 Pair Connector) | |
| +12V | Max: 66.7A / Min: 0A (100Vac - 127Vac) | |
| Max: 83A / Min: 0A (200Vac - 240Vac) | ||
| Max: 83A / Min: 0A (200Vdc - 240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6A | |
| PDB-PT826-8824 | ||
| O/P: 12V/135 | ||
| +5V Max: 40A | ||
| +3.3V Max: 24A | ||
| Product SKUs | ||
| Product SKUs | CSE-836BE2C-R1K03B | |
| Form Factor | ||
| Form Factor | 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 5.2" (132 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 75 lbs (34.02 kg) | |
| Net Weight | 36 lbs (16.33 kg) | |
| Packaging (W x H x L) | 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Full-height, Full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | Optional 2x 2.5" hot-swap drive bay | |
| 16x 3.5" hot-swap drive bay | ||
| Backplane | ||
| Backplane | 16-Port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| System Information LED | ||
| Power Fail LED | ||
| Systems Cooling | ||
| Fans | 2x 8cm hot-swap exhaust fan(s) & air shroud | |
| 3x 8cm hot-swap redundant PWM cooling fan(s) | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| UL/CB | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
