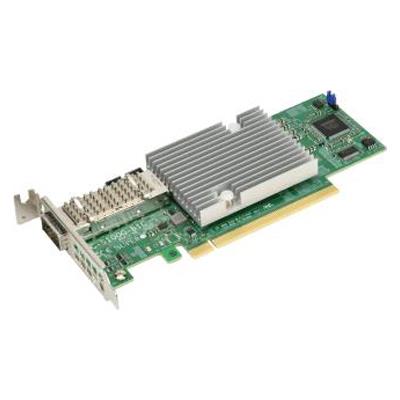

Supermicro AOC-S100G-B1C Network Controller Compact Size Low-Profile QSFP28 Connector 100Gbps
PCI-E 3.0 x16 for fast data transfer
Thermal Sensor for asset management
Broadcom BCM57454 Ethernet controller
Single QSFP28 for high-speed 100GbE connectivity
Add-on Card Based on the Broadcom BCM57454 Controller, Low profile, Standard Short-Length Form Factor, Standard PCI-E Gen 3.0 x16 Host Interface, Single QSFP28 Connector, Operate At Up To 100Gb/s, RoHS Compliant 6/6 - (AOC-S100G-B1C-O)
Single QSFP28 Connector
Low-Profile, Short-Length Standard Form Factor
PCI-E 3.0 x16
Broadcom BCM57454 Ethernet Controller
Asset Management Feature with thermal sensor
IEEE 1588 PTP and IEEE 802.1AS
Energy Efficient Ethernet IEEE Std 802.2az
Truflow
NPAR
Low Latency RDMA over Converged Ethernet (RocE v1 and v2)
VxLAN, NVGRE and Geneve
NetQueue, VMQueue and MultipleQueue
Jumbo Frames up to 9600-Byte
NC-SI for IPMI support
Extra Specifications for Supermicro AOC-S100G-B1C Network Controller Compact Size Low-Profile QSFP28 Connector 100Gbps
| Specification | ||
| NIC partitioning (NPAR) | 16 Physical Functions | |
| Partitioning control via sideband communication | ||
| Stateless offload configuration per partition | ||
| VEB/VEPA support | ||
| RDMA over Converged Ethernet (RoCE) | RoCEv1 and RoCEv2 | |
| Data Center Bridging with RoCE | ||
| Up to 126 outstanding RDMA Reads or Atomics | ||
| Congestion Avoidance (RoCE flows tracking and rate adjustment) | ||
| Operating Conditions | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Typical Power Consumption: 17.8W (preliminary) | ||
| Host Interface | MCTP over SMBus | |
| Function level Rest (FLR) support | ||
| Message Signal Interrupt (MSI-X) | ||
| PCI-E v3.0 (8GT/s) | ||
| MCTP over PCIe VDM | ||
| Networking Features | Jumbo Frames (up to 9600-byte) | |
| 802.3x flow control | ||
| Link Aggregation (802.3ad) | ||
| Virtual LANs 802.1q VLAN tagging | ||
| Configurable Flow Acceleration | ||
| IEEE 1588 and Time Sync | ||
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload | |
| Large Send Offload | ||
| Receive Segment Coalescing | ||
| TCP segmentation Offload | ||
| Large Receive Offload | ||
| Receive Side Scaling (RSS) | ||
| Transmit Side Scaling (TSS) | ||
| Flow Processing | Exact/Wildcard Match Flow Lookup | |
| VLAN insertion/deletion | ||
| NAT/NAPT | ||
| Mirroring | ||
| Virtualization Features | NetQueue, VMQueue, and Multiqueue | |
| Support for 128 Virtual Functions | ||
| VXLAN | ||
| NVGRE | ||
| Geneve | ||
| Edge Virtual Bridging (EVB) | ||
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb) | |
| Enhanced transmission selection (ETS; IEEE802.1Qau) | ||
| Quantized congestion Notification (QCN; IEEE802.1Qau) | ||
| Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) | ||
| 8 traffic classes per port; fully DCB compliant per 802.1Qbb | ||
| Manageability | Network Controller Sideband Interface (NC-SI) | |
| PXE and iSCSI boot | ||
| Asset Management with Thermal Sensors | ||
| Power Savings | ACPI compliant power management | |
| PCI Express Active State Power Management (ASPM) | ||
| Ultra low-power mode | ||
| Pass-through Energy Efficient Ethernet (IEEE802.3az-2010) | ||
| Physical Dimensions | 167.65mm x 68.90mm | |
| Broadcom BCM57454 single-port 100Gbps controller | ||
| Add-on Card | ||
| Add-on Card | The Supermicro is a leading-edge 100GbE controller featuring the Broadcom BCM57454 chipset. With features such as VxLAN, NVGRE, Geneve and RoCE, this card offers high degree of flexibility and performance for any data center or high performance computing workload. The support of RoCE provides CPU offload, delivering low-latency and high efficiency over Ethernet networks. Supermicro Asset Management and thermal detection provide an extra layer of controller health management and peach of mind. The Supermicro high performance 100GbE adapter solution is an excellent solution in your data centers and high performance computing infrastructure. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6 | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-S100G-b1C.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-S100G-b1C.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, click on the Broadcom folder, and select the 100G folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
