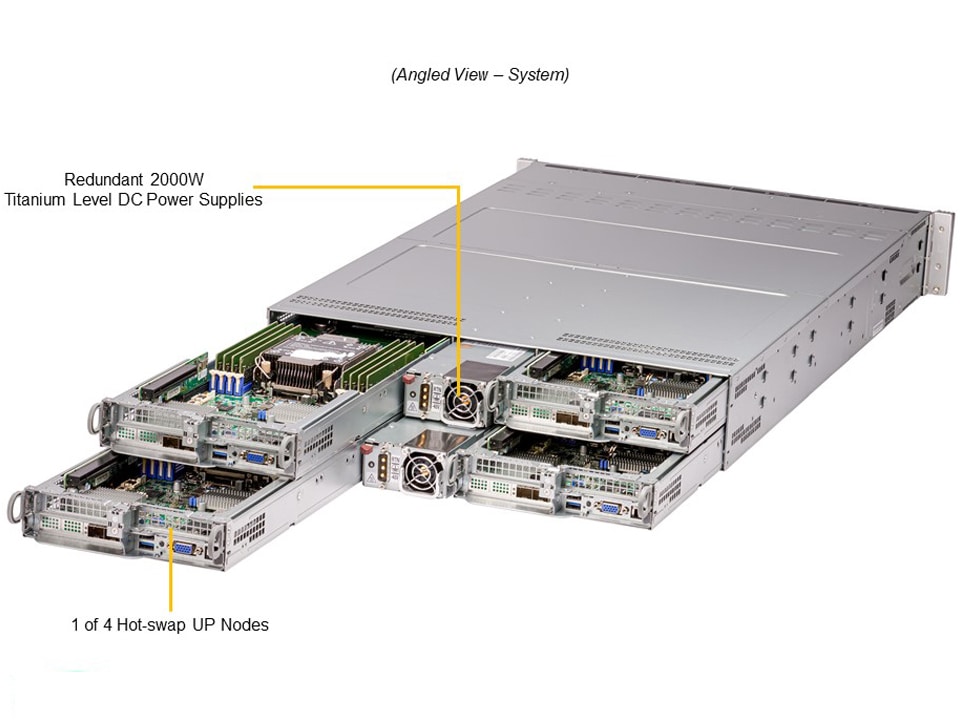

Supermicro SYS-210TP-HPTRD IoT Server 2U Barebone Single Intel Xeon Scalable Processors 3rd Generation
• Multi-Access Edge Computing (MEC)
• VRAN/ORAN for Telecom
• Enterprise Edge
Barebone 2U Rackmount SuperServer Four Nodes, Each Node Supports: Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Up to 32C/64T, Up to 48MB Cache, Intel C621A, Up to 2TB in 8 DIMM slots, RDIMM/LRDIMM, On-Board : Controller for SATA3 (6 Gbps), 6x 2.5in Hot-swap SATA Drive Bays, 2x NVMe M.2 2280/22110, 2x 10GbE SFP+ onboard, 1 RJ45 Dedicated IPMI LAN port, 2000W DC 48V Power Supply - (SYS-210TP-HPTRD + X12SPT-PT)
1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
2. Intel® C621A Chipset
3. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
4. 2 PCIe Gen4 x16 HHHL slot (per node)
5. 2 NVMe M.2 2280/22110 (per node) Front hot-swappable 2.5” HDD/SSD tray (6 tray per node)
6. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
7. 1+1 Redundant 2000W DC Power Supplies (per system)
8. Intel® X710 Dual port 10G SFP+ onboard
Extra Specifications for Supermicro SYS-210TP-HPTRD IoT Server 2U Barebone Single Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12SPT-PT | |
| Processor (per Node) | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Single Socket P+ (LGA-4189) | ||
| Support CPU TDP 85-270W | ||
| Please contact Supermicro Technical Support for supporting conditions of high power (TDP >240W) processors. | ||
| Cores | Up to 32C/64T; Up to 48MB Cache | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices (per Node) | ||
| SATA | SATA3 (6Gbps) | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10 GbE SFP+ (LAN1 shared with IPMI) | ||
| USB | 2 USB 3.2 Gen1 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| Others | SFP+ support 1GbE/10GbE | |
| System BIOS | ||
| BIOS Type | AMI 32MB UEFI | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode for power recovery | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support, PEPI | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217HQ+-R2K04BP4 | |
| Dimensions and Weight | ||
| Height | 3.5" (88mm) | |
| Width | 17.25" (438mm) | |
| Depth | 28.75" (730mm) | |
| Package | 9.8" (H) x 20.7" (W) x 38" (D) | |
| Weight | Net Weight: 70 lbs (31.8 kg) | |
| Gross Weight: 90 lbs (40.8 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| System information (overheat/UID) LED | ||
| Network activity LED | ||
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 6x 2.5" hot-swap SATA drive bays | |
| M.2 | 2 M.2 NVMe | |
| M-Key, 2280/22110 | ||
| System Cooling | ||
| Air Shroud | 4 Air Shroud(s) Air Shroud(s) | |
| Power Supply | ||
| Total Output Power | 2000W : (-45) - (-66) Vdc | |
| Dimension (W x H x L) | 76 x 40 x 360 mm | |
| +12V | Max: 166.6A | |
| 5V SB | Max: 6A | |
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Non-operating Temperature: 0°C to 70°C (-40°F to 158°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-210TP-HPTRD | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPT-PT | 4 | Super X12SPT-PT Motherboard | |
| Motherboard / Chassis | CSE-217HQ+-000NBP4 | 1 | 2U Chassis | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
