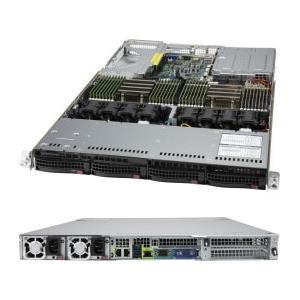

Supermicro AS-1024US-TNR A+ Server 1U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Virtualization
• Cloud Computing
• High End Enterprise Server
Barebone 4U Rackmount SuperServer, Supports Dual Socket SP3, Supporting AMD EPYC 7003/7002 Series Processors. Up to 8TB in 32 DIMM slots, RDIMM/LRDIMM, System on Chip (SoC), On-Board: Controller SATA3 (6 Gbps) ports, 24x 2.5in Hot-Swap SAS/SATA Drive Bays, 2x 2.5in SATA Supported Natively, 4x 2.5in NVMe Gen4 Supported Natively, Network Controller : Provided Via Riser Card, 1x RJ45 Dedicated IPMI LAN port, 2000W Power Supply - (AS -4124GS-TNR+ / H12DSG-O-CPU)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.
1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: Must bundle with optional Ultra Riser Card 2 PCI-E 4.0 x16 (FH / 9.5"L) slots 1 PCI-E 4.0 x16 (LP) slot 1 PCI-E 4.0 x16 (internal proprietary LP slot) * [ Details ] * Ultra Riser Card must be bundled in order to enable this slot
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Flexible Ultra Riser/Network options – see Optional Parts List
6. Drive Bays: 4 hot-swap 3.5" SATA3 by default or 4 NVMe (via optional drive tray) or 4 SAS3 (via optional SAS kit)
7. 1000W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1024US-TNR A+ Server 1U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | H12DSU-iN | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| Note | * Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| NVMe | NVMe (16GT/s) | |
| Network Connectivity | Flexible Ultra Riser/Network options – see Optional Parts List | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||

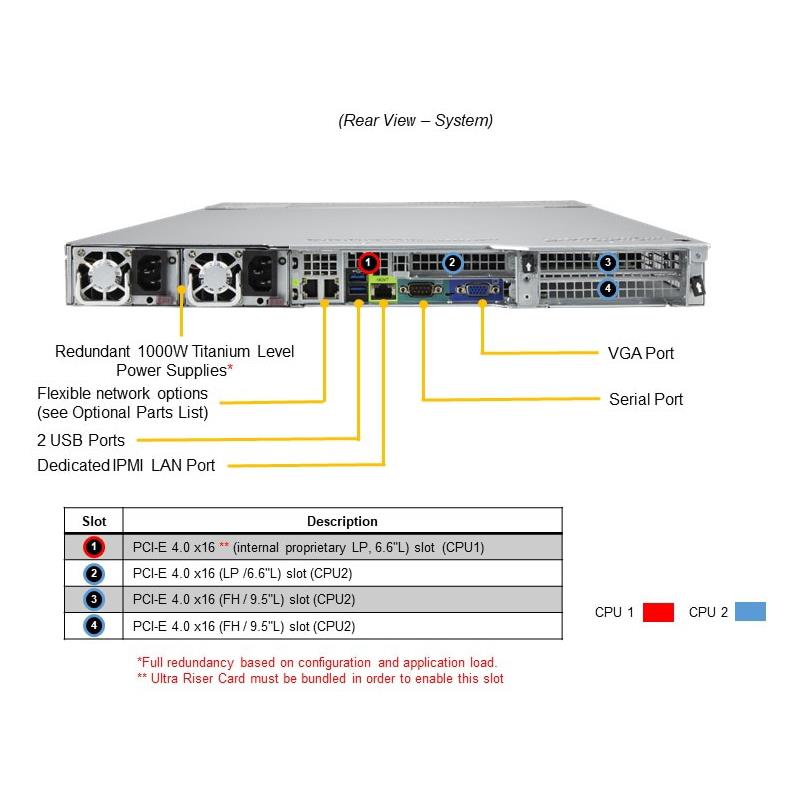

| Expansion Slots | ||
| 1U | 2 PCI-E 4.0 x16 (FH/HL 9.5") slots | |
| 1 PCI-E 4.0 x16 (LP) slot | ||
| 1 PCI-E 4.0 x16 (internal proprietary LP slot) * | ||
| Input / Output | ||
| SATA | 4 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Flexible Ultra Riser/Network options – see Optional Parts List | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| SAS | 4 SAS3 ports support via optional SAS kit | |
| NVMe | 4 NVMe support via optional drive tray | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-819UTS-R1K02P-A | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Package | 7.8" (H) 23.66" (W) 37.13" (D) | |
| Weight | Net Weight: 26 lbs (11.8 kg) | |
| Gross Weight: 41 lbs (18.6 kg) | ||

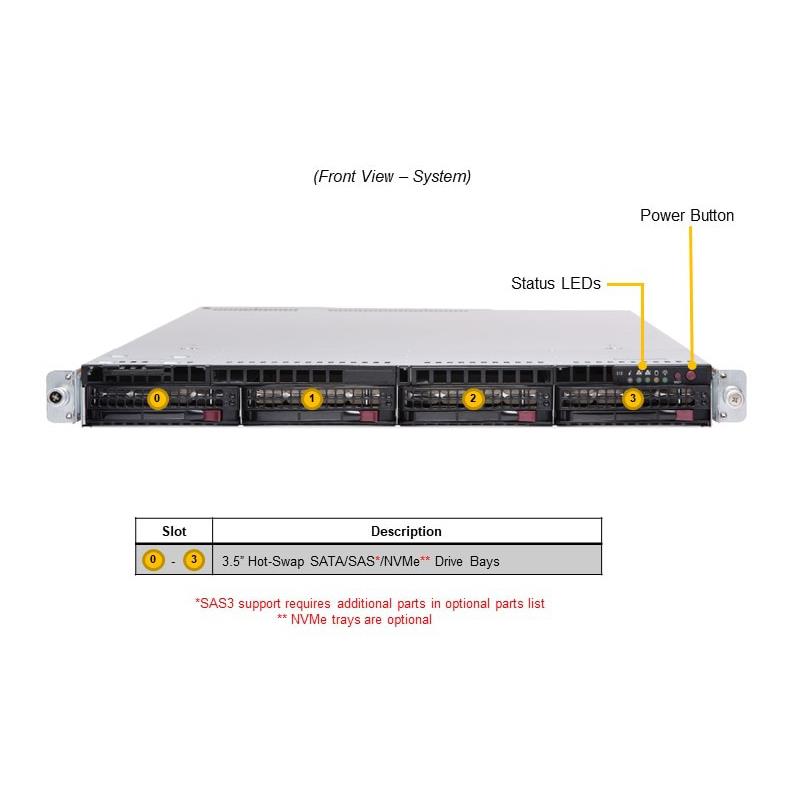

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| Backplane | ||
| HDD Backplane | Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD | |
| System Cooling | ||
| Fans | 8 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I²C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) * | ||
| Note | * Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. | |
| Product SKUs | ||
| Product SKUs | A+ Server 1024US-TNR | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H12DSU-iN | 1 | Super H12DSU-iN Motherboard | |
| Chassis | CSE-819UTS-R1K02P-A | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-PWEX-0650 | 1 | 8 Pin Female to 2x RA(Right Angle) Big 4 Pin Female Power | |
| Cable 2 | CBL-SAST-1252-85 | 1 | Slimline x8 (LE) to 2x Oculink x4 (STR),INT,55/44CM,85 | |
| Cable 3 | CBL-SAST-1255-85 | 1 | Slimline x8 (LE) to 2x Oculink x4 (STR),INT,55/44CM,85 O | |
| Cable 4 | CBL-SAST-1277-100 | 1 | Slimline X8 (LE) to 4x SATA,INT,P0 520mm,P1 440mm,P2 52 | |
| Parts | MCP-160-11901-0B | 1 | 1U Ultra Mylar cable channel for X12 | |
| Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| * Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH | |
| * FAN | FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Ultra Riser Card Kit(s) | AOC-URG4N4 (no LAN)* | 0 | 1U Ultra Riser with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Kit(s) | AOC-URG4N4-m2TS | 0 | 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Kit(s) | AOC-URG4N4-B2XT** | 0 | 1U Ultra Riser 2-port 10GbE RJ45, Broadcom BCM57416, 1 PCI-E 4.0 x16 (internal), 4 NVMe ports (2x SlimSAS x8) | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR / 16DD | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-S3808L-L8IT | $ 397.50 | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | ||
| Storage Control Card and Cable(s) | AOC-S3908L-H8IR-16DD | $ 695.50 | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 31.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray | ||
| Optional Kit for NVMe Solution | MCP-220-00116-0B | $ 33.50 | 0 | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive) | ||
| Optional Kit for NVMe Solution | MCP-220-00138-0B | $ 43.00 | 0 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab | ||
| DVD Kits | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit | ||
| USB Port Tray (FDD Slot) | MCP-220-00129-0B | $ 38.00 | 0 | Black 2x USB 3.0 port tray in slim FDD bay | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 113.00 | 0 | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)+Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | $ 113.00 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED+Slim DVD Size Drive Kit w/Status LED | ||
| Ultra 1U Front Bezel | CSE-PTFB-813L | $ 25.50 | 0 | SC813 Front Bezel, PB Free | ||
| Ultra 1U Front Bezel | CSE-PTFB-813LB | $ 27.00 | 0 | Black SC813 Front Bezel, PB Free | ||
| Ultra 1U Front Bezel | MCP-210-11601-0B | $ 31.00 | 0 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) | ||
| 1U Cable Management Arm | MCP-290-00165-0N | 1 | 1U Supermicro Cable Management Arm 3rd Gen (optimize for Ultra) | |||
| M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| M.2 by AOC | AOC-SLG4-2H8M2 | $ 224.00 | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665H | $ 43.00 | 0 | Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| SATADOM | SSD-DM128-SMCMVN1 | $ 147.00 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
| SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
| SATADOM | SSD-DM064-SMCMVN1 | $ 89.50 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | SSD-DM032-SMCMVN1 | $ 75.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
| SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
| SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
| SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Optional Power Supply | PWS-1K62A-1R | $ 438.50 | 0 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | ||
| Power Cable Retention Clip | CBL-0459L | $ 15.50 | 2 | AC Power Cord Latch Clamp |
