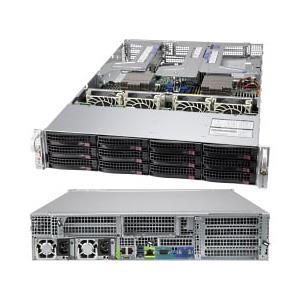

Supermicro AS-2024US-TNR A+ Server 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Virtualization
• Cloud Computing
• High End Enterprise Server
• Hyperconverged Storage
• Flexible Networking Options
Barebone 2U Rackmount SuperServer, Supports Dual Socket SP3, Supporting AMD EPYC 7003/7002 Series Processors. Up to 8TB in 32 DIMM slots, SDRAM, System on Chip (SoC), On-Board: Controller SATA3 (6 Gbps) ports, NVMe (16GT/s), 12x 3.5in Hot-swap SATA3 Drive Bays, Optional Networking, 1x RJ45 Dedicated IPMI LAN port, 1600W Power Supply - (CSE-829U2TS-R1K62P3-T + H12DSU-iN) - AS -2024US-TNR
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.
1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: Must bundle with optional Ultra Riser Card 1 PCI-E 4.0 x16 (FH, 10.5" L) slot, 1 PCI-E 4.0 x16 (FH, 9.5" L) slot, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x16 (FH, 10.5" L) slot * , 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot * (with AOC-2UR668G4 this slot will become PCI-E 4.0 x16), 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot * [ Details ] * Ultra Riser Card must be bundled in order to enable this slot
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Flexible Ultra Riser/Network options – see Optional Parts List
6. 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe via optional tray or 12 SAS3 via optional SAS kit
7. 1600W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2024US-TNR A+ Server 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | H12DSU-iN | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| Note | * Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| NVMe | NVMe (16GT/s) | |
| Network Connectivity | Flexible Ultra Riser/Network options – see Optional Parts List | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Expansion Slots | ||
| 2U | 1 PCI-E 4.0 x16 (FH, 9.5" L) slot | |
| 1 PCI-E 4.0 x16 (LP) slot | ||
| 1 PCI-E 4.0 x16 (FH, 10.5" L) slot | ||
| 1 PCI-E 4.0 x16 (FH, 10.5" L) slot * | ||
| 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot * (with AOC-2UR668G4 this slot will become PCI-E 4.0 x16) | ||
| 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot * | ||
| Input / Output | ||
| SATA | 12 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Flexible Ultra Riser/Network options – see Optional Parts List | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| SAS | 12 SAS3 ports support via optional SAS kit | |
| NVMe | 4 NVMe support via optional tray | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-829U2TS-R1K62P3-T | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.46" (723mm) | |
| Package | 9.96" (H) 24.60" (W) 45.43" (D) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 12 SATA3 by default | |
| 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe via optional kit or 12 SAS3 via optional SAS kit | ||
| or 8 SATA3 + 4 NVMe via optional kit | ||
| or 12 SAS3 via optional SAS kit | ||
| Backplane | ||
| HDD Backplane | Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD | |
| System Cooling | ||
| Fans | 4 heavy-duty PWM fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I²C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) * | ||
| Note | * Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. | |
| Product SKUs | ||
| Product SKUs | A+ Server 2024US-TNR | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H12DSU-iN | 1 | Super H12DSU-iN Motherboard | |
| Chassis | CSE-829U2TS-R1K62P3-T | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS | |
| Cable 1 | CBL-PWEX-0673 | 2 | 8 Pin Female to 2x Big 4 Pin Female Power, 65/70CM, 18AWG,Ro | |
| Cable 2 | CBL-SAST-1245-85 | 1 | Slimline x8 (LE) to Slimline x8 (LE),48CM,85 OHM,RoHS | |
| Cable 3 | CBL-SAST-1247-85 | 1 | Slimline x8 (LE) to Slimline x8 (LE),47CM,85 OHM,RoHS | |
| Cable 4 | CBL-SAST-1253-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),42/53CM,100 OHM | |
| Cable 5 | CBL-SAST-1269F-100 | 1 | Slimline x4 (RA) to Slimline x4 (STR),70CM,100 OHM,RoHS | |
| Riser Card | RSC-W2-66G4 | 1 | 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| *Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| *FAN | FAN-0206L4 | 4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5"; HDD tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Ultra Riser Card Kit(s) | AOC-2UR668G4 (no LAN)* | 0 | 2U Ultra Riser with 2x PCI-E 4.0 x16 and 1x PCI-E 4.0 x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Kit(s) | AOC-2UR68G4-m2TS | 0 | 2U Ultra Riser 2-port 25GbE SFP28, Mellanox CX-6 LX, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR / 16DD | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-SAS3-9361-16I | 0 | MegaRAID SAS 9361-16i | |||
| Storage Control Card and Cable(s) | AOC-S3616L-L16IT | $ 458.50 | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP | ||
| Storage Control Card and Cable(s) | AOC-S3808L-L8iT | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3816L-L16iT | 0 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
| Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD | 0 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| CacheVault(s) | BTR-CVPM05 | $ 264.00 | 0 | Cache Vault for 3908/3916 controller | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00118-0B | $ 31.50 | 0 | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray. | ||
| Optional Kit for NVMe solution | MCP-220-00116-0B | $ 33.50 | Up to 4 | Black gen-5 3.5"-to-2.5" NVMe drive tray, Orange tab (for hotswap NVMe drive) | ||
| Optional Kit for NVMe solution | MCP-220-00138-0B | $ 43.00 | Up to 4 | Black gen-5.5 tool-less NVMe 3.5"-to-2.5" drive tray, Orange tab | ||
| Additional HDD Kit | MCP-240-82922-0N-OEM | $ 147.00 | 0 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U | ||
| 2U Cable Management Arm | MCP-290-00128-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen | |||
| Ultra 2U Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | - | ||
| M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| M.2 by AOC | AOC-SLG3-2H8M2 | $ 188.00 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
| GPU Kit | SNK-P0062P | $ 52.00 | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | ||
| GPU Kit | MCP-310-00091-0B | $ 31.50 | 1 | Ultra 2U GPU Air Shroud Kit for AMD | ||
| Riser Card | RSC-W2-8888G4 | $ 83.50 | 0 | 2U LHS WIO Riser card with four PCI-E 4.0 x8 slots,HF,RoHS | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665H | $ 43.00 | 0 | Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| SATADOM | SSD-DM128-SMCMVN1 | $ 147.00 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
| SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
| SATADOM | SSD-DM064-SMCMVN1 | $ 89.50 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | SSD-DM032-SMCMVN1 | $ 75.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
| SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
| SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
| SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
