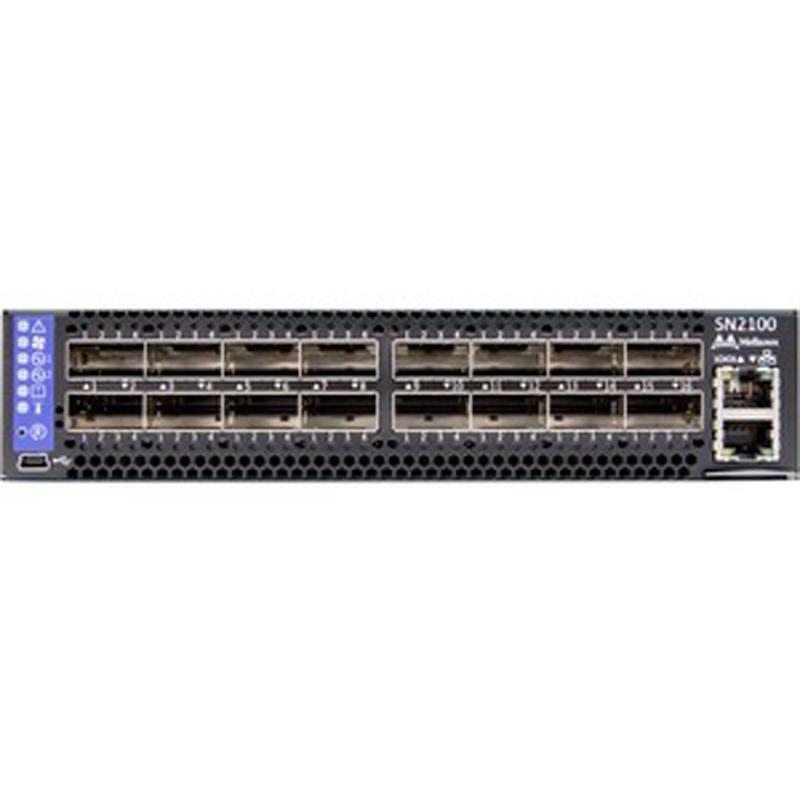

  2. NVIDIA MSN2100-CB2FO 100GbE Open Ethernet Switch with ONIE Offers 16-QSFP28 Ports Reversible Airflow (Optional)
NVIDIA MSN2100-CB2FO 100GbE Open Ethernet Switch with ONIE Offers 16-QSFP28 Ports Reversible Airflow (Optional)

NVIDIA MSN2100-CB2FO 100GbE Open Ethernet Switch with ONIE Offers 16-QSFP28 Ports Reversible Airflow (Optional)

  • Up to 256K shared forwarding entries

  • Consistent and low cut-through latency

  • Comprehensive Layer-2, Layer-3 and RoCE

  • Accommodates 16 ports running at 100GbE

NVIDIA 100GbE 1U Open Ethernet Switch, Spectrum-Based, with ONIE, 16x 100GbE ports, 32x 50Gbe ports, 16x 40GbE ports, 64x 25GbE ports, 64x 10GbE ports, 1 RJ45, 1 Mini USB, 2 power supplies (AC), x86 CPU, short depth, Reversible Airflow (Optional), Rail Kit must be purchased separately

$ 9,003.00$ 9,003.009003.0USD

$ 9,003.00

Option not available

FREE SHIPPING

    This combination does not exist.

    Add to Cart

    The SN2100 carries a unique design to accommodate the highest rack performance. Its design allows side-by-side placement of two switches in a single 1RU slot of a 19” rack, delivering high availability to the hosts. The SN2100 accommodates 16 ports running at 100GbE, with throughput of 3.2Tb/s and a 2.38Bpps processing capacity.


    Bare metal including ONIE image, installable with any ONIE-mounted OS. ONIEbased platforms utilize the advantages of Open Networking and the NVIDIA Spectrum ASIC capabilities.


    • Freedom of NOS choice, no vendor lock-in

    • Forms a predictable data center

    • Zero packet loss (learn more)

    • Future proof solution, enhanced scalability

    • Supports speeds of 1/10/25/40/50 and 100GbE

    Extra Specifications for NVIDIA MSN2100-CB2FO 100GbE Open Ethernet Switch with ONIE Offers 16-QSFP28 Ports Reversible Airflow (Optional)

    Main Specifications
    Device TypeOpen Ethernet Switch
    Form Factor1U form factor
    Dimensions (WxDxH)1.72x7.87x20 in
    Weight10 lbs (4.5kg)
    TypeReversible Airflow Option
    Processor
    Host ProcessorATOM x86
    Storage Controller
    Onboard Memory/CacheSystem Memory: 8GB, SSD Memory: 16GB, Packet Buffer: 16MB
    Networking
    Throughput3.2Tb/s
    Packet Per Second2.38Bpps
    Latency300ns
    Software / System Requirements
    OS SupportONIE
    Expansion / Connectivity
    Expansion / Connectivity16x 100GbE ports, 32x 50Gbe ports, 16x 40GbE ports, 64x 25GbE ports, 64x 10GbE ports, 1x 100/100 Mgmt Port, 1x RJ45, 1x Mini USB
    Power Supply
    Power SupplyFrequency: 50-60Hz, Input range: 100-264 AC, Input current 4.5-2.9A
    Typical Power (ATIS)94W
    Environmental
    Operating EnvironmentOperating Environment 32 - 104 F (0 - 40 C)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Miscellaneous
    Compliant StandardsRoHS Compliant
    Mounting KitRail Kit must be purchased separately
