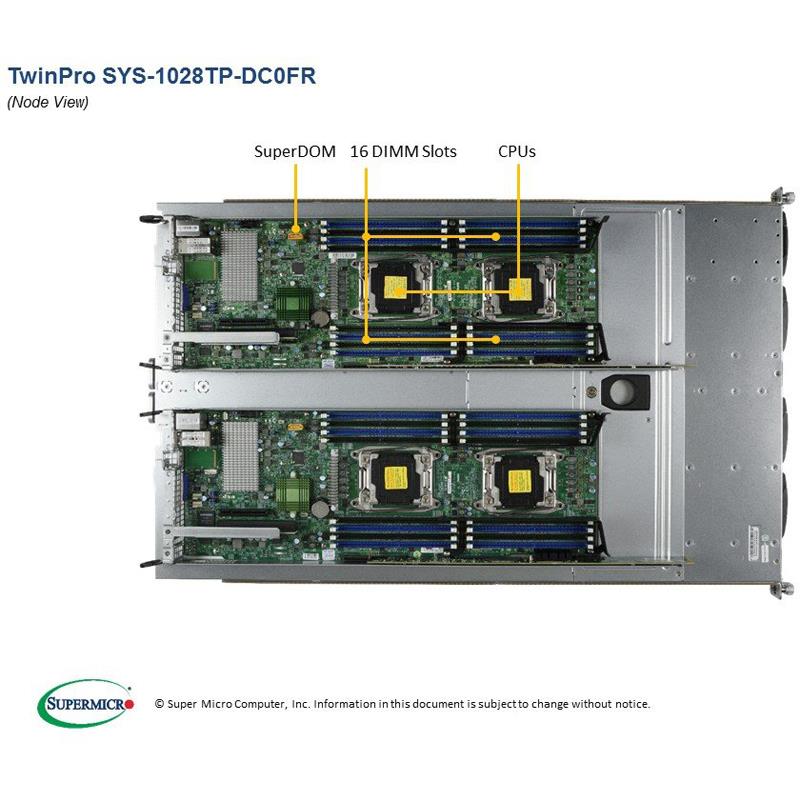

| Motherboard (Two per System) |
| Motherboard (Two per System) | Super X10DRT-PIBF |
| Processor/Cache (per Node) |
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory (per Node) |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices (per Node) |
| Chipset | Intel® C612 chipset |
| Infiniband | Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller |
| SAS | Broadcom 3008 SAS3 (12Gbps) controller; SW RAID 0, 1, 10 support |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Intel® i350 Dual Port Gigabit Ethernet |
| Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 BMC |
| Input / Output (per Node) |
| SAS | 4x SAS3 (12Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| Infiniband | 1x external QSFP Infiniband connector |
| USB | 2x USB 3.0 ports (rear) |
| VGA | 1x VGA port |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header (internal) |
| Others | 1x SATADOM support on the motherboard |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-809H-R1K05 |
| Dimensions and Weight |
| Width | 17.2" (437mm) |
| Height | 1.7" (43mm) |
| Depth | 28.25" (718mm) |
| Weight | Gross Weight: 48.1 lbs (21.9 kg) |
| Net Weight: 33.5 lbs (15.2 kg) |
| Package (HxWxD) | 8" (203mm) x 29.6" (752mm) x 38.4" (975mm) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button/LED |
| LEDs | Power status LED |
| Universal Information (UID) LED |
| Network activity LED |
| Expansion Slots (per Node) |
| PCI-Express | 1x PCI-E 3.0 x16 Low-profile slot |
| 0 Slot | 1x "0 slot" (x16) |
| Drive Bays (per Node) |
| Hot-swap | 4x 2.5" Hot-swap SAS3 drive bays |
| System Cooling (per Node) |
| Fans | 3x heavy duty counter rotating fans with air shroud and optimal fan speed control |
| PowerStick Power Supply |
| PowerStick Power Supply | 1000W 1U Redundant Power Supplies with PMBus |
| Total Output Power | 800W: 100 – 127Vac |
| 1000W: 200 – 240Vac |
| Dimension (W x H x L) | 38 x 40 x 360 mm |
| Input | 100-127Vac / 9-7.5A / 50-60Hz |
| 200-240Vac / 6-5A / 50-60Hz |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) |
| Max: 83A / Min: 0A (200-240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | Gold Finger Connector (16 Power Pin, 14 Signal Pin) |
| Certification | Titanium Level |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| SMBIOS 2.3 |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer 1028TP-DC0FR (Black) |
