| Motherboard |
| Motherboard | Super X11SBA-LN4F |
| Processor/Cache |
| CPU | Socket FCBGA1170 |
| Intel® Pentium® Processor N3710 |
| CPU TDP 6W |
| 1.6-2.4GHz, 2MB |
| System Memory |
| Memory Capacity | 2x 204-pin SO-DIMM slot |
| Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel) |
| Memory Type | 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs |
| DIMM Sizes | 4GB, 2GB |
| Memory Voltage | 1.35 V |
| On-Board Devices |
| Chipset | Intel® N3710 System on Chip |
| SATA | SATA 3.0 (6Gbps) from Intel® SoC |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Quad Gigabit Ethernet LAN ports with Intel® I210-AT |
| Graphics | Aspeed AST2400 BMC |
| Input / Output |
| Serial ATA | 2x SATA3 (6Gbps) ports |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports (rear) |
| 2x USB 2.0 ports (rear) |
| Display | 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays) |
| DOM | 1x SuperDOM (Disk on Module) port with built-in power |
| Others | TPM 1.2 header |
| Chassis |
| Form Factor | Mini-ITX |
| Model | CSE-101S |
| Dimensions |
| Width | 7.68" (195mm) / 15" (381mm) - pkg. |
| Height | 1.75" (44.5mm) / 10.87" (276mm) - pkg. |
| Depth | 7.68" (195mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 5.5 lbs (2.49 kg) |
| Net Weight: 2.45 lbs (1.11 kg) |
| Available Colors | Black |

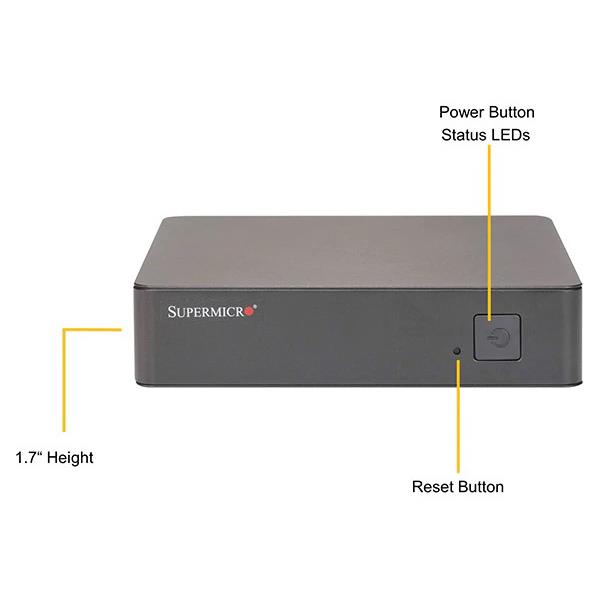

| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| Mini-PCIe | 1x mini-PCIe slot with mSATA support |
| Drive Bays |
| Internal | 1x 2.5" internal drive tray |
| System Cooling |
| Fans | 1x 4cm high performance PWM fan; support up to 2 chassis fans |
| Power Supply |
| Power Supply | 60W DC Power Adapter |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | ACPI 5.0 |
| SMBIOS 2.7 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI 2.3.1 |
| RTC (Real time Clock) Wakeup |
| 3TB HDD Support |
| Management |
| Software | Watch Dog |
| NMI |
| IPMI 2.0 with KVM support |
| SuperDoctor® 5 |
| SUM |
| Power Configurations | ACPI / ACPM Power Management |
| Main Switch Override Mechanism |
| Power-on mode for AC power recovery |
| Keyboard Wakeup from Soft-Off |
| Fan | Fans with tachometer status monitoring |
| Status monitor for speed control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity: 10% to 85% (non-condensing) |
| Non-operating Relative Humidity: 10% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer E200-9B (Black) |
