- Supermicro SYS-5019S-M2 1U Barebone Single Intel Processor

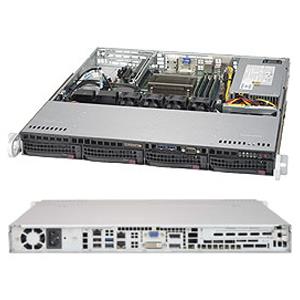

Supermicro SYS-5019S-M2 1U Barebone Single Intel Processor
• Embedded
• Security and Surveillance
• Appliance Server, Secure Storage
• Rack Workstation
SuperServer 1U Rack Single Socket H4 (LGA 1151) supports Intel 6th Gen. Core i7/i5/i3 series, Intel Celeron and Intel Pentium Processors - Supports up to 64GB Unbuffered Non-ECC UDIMM DDR4 (4x 288-pin slots) - On-Board : SATA3 (6Gbps) via Intel Q170 Express controller (RAID), IPMI 2.0, 2x Gigabit LAN, HD Audio, VGA - Includes 4x 3.5in Hot-swap SATA3 drive bays, 1x PCI-E 3.0 x16 FH, FL slot, 1x Riser Card, 1x Heatsink, 350W 80 Plus Gold Level Power Supply, X11SSZ-F Motherboard, CSE-813MFTS-350CB 1U Chassis
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. 4 Hot-swap 3.5" SATA3 bays, Intel RST
4. Up to 64GB Unbuffered ECC/Non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x16 slot
6. 1 GbE LAN w/ Intel® i210-AT, 1 GbE LAN w/ Intel® PHY i219LM
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
9. 350W Platinum Level Power Supply
Extra Specifications for Supermicro SYS-5019S-M2 1U Barebone Single Intel Processor
| Motherboard | ||
| Motherboard | Super X11SSZ-F | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Up to 64GB DDR4 ECC/Non-ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | Intel® C236 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| 4x SATA3 (6Gbps) via Intel® C236 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers | ||
| Audio | RealTek ALC 888S High Definition Audio | |
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 4 USB 3.0 ports (2 rear + 2 headers) | |
| 9 USB 2.0 ports (2 rear + 6 headers + 1 Type A) | ||
| Audio | Front panel header | |
| Video/Display | 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400 | |
| 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM | ||
| Serial Port / Header | 2 COM ports (1 front, 1 header) | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of 6 fan headers supporting up to 6 fans | ||
| 4 fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| I 2 C temperature sensing logic | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| LED | UID/Remote UID | |
| Suspend static indicator LED | ||
| System Information LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| RoHS, Halogen Free | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-813MFTQC-350CB | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 19.85" (503mm) | |
| Package | 8.5" (H) x 24" (W) x 29.7" (D) | |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) | |
| Net Weight: 17.6 lbs (8 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
| System Cooling | ||
| Fans | 4x 4cm internal fans | |
| Power Supply | ||
| Power Supply | 350W AC power supply w/ PFC | |
| AC Voltage | 100-240 V, 50-60 Hz, 5.0-2.5 Amp | |
| +5V | Max.: 15 Amp | |
| Min.: 0.2 Amp | ||
| +5V standby | Max.: 3 Amp | |
| Min.: 0 Amp | ||
| +12V | Max.: 29 Amp | |
| Min.: 0.5 Amp | ||
| -12V | Max.: 0.2 Amp | |
| Min.: 0 Amp | ||
| +3.3V | Max.: 12 Amp | |
| Min.: 0.2 Amp | ||
| Certification | Platinum Level Certified | |
| System BIOS | ||
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Single Socket H4 (LGA 1151) supports: | |
| CPU TDP up to 80W | ||
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® processors | ||
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors | |
| Product SKUs | ||
| Product SKUs | SuperServer 5019S-M2 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSZ-F | 1 | Super X11SSZ-F Motherboard | |
| Motherboard / Chassis | CSE-813MFTQC-350CB | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Cable 1 | CBL-0186L | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG | |
| Cable 2 | CBL-CDAT-0661 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Parts | MCP-120-00031-0N | 1 | Riser card bracket for SC812,813,813M,815,111,113,113M | |
| Drive Tray(s) | MCP-220-00129-0B | 1 | Black 2x USB3.0/COM port tray in slim FDD bay | |
| Parts | MCP-260-00094-0N | 1 | 1U I/O Shield for X11SSZ with EMI Gasket,RoHS/REACH | |
| Air Shroud | MCP-310-19007-0N | 1 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | |
| Manual | MNL-1821-QRG | 1 | 5019S-M2 QRG | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heatsink / Retention | SNK-P0046P | 1 | 1U PASSIVE CPU HS FOR INTEL LGA1156 | |
| Power Supply | PWS-350-1H | 1 | 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) | |
| FAN 1 | FAN-0147L4 | 4 | 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF |
