| Main Specifications |
| Device Type | Xeon Board |
| Dimensions (WxDxH) | 12" x 13" (30.5cm x 33.2cm) |
| Form Factor | E-ATX |
| QPI | QPI up to 9.6 GT/s |
| Processor |
| Cache | Up to 22 Cores / Up to 55MB Cache |
| Compatible processor | Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) |
| Compatible Socket | Dual Socket R3 (LGA 2011) |
| System Memory |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel C612 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | Aspeed AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Intel i350 Quad Gigabit Ethernet LAN |
| SAS | 8x SAS3 (12Gbps) ports |
| LSI 3008 SAS3 (12Gbps) controller, SW RAID 0, 1, 10 |
| TPM | 1x TPM 1.2 20-pin Header |
| USB | 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) |
| 4x USB 2.0 ports (4 via headers) |
| Input / Output |
| SATA | 10x SATA3 (6Gbps) ports |
| AHCI SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| SCU SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| DOM | 2x SuperDOM (Disk on Module) ports |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port |
| Serial Port / Headers | 1x Fast UART 16550 serial, 2x COM Ports (1 rear, 1 header) |
| VGA | 1x VGA Connector |
| Chassis Optimized for |
| 2U Chassis | SC826BE1C-R920LPB, SC826BE2C-R920LPB, SC826BAC4-R920LPB, SC216BE1C-R920LPB, SC216BE2C-R920LPB |
| 3U Chassis | SC836BE1C-R1K03B, SC836BE2C-R1K03B, SC835TQ-R920B |
| Important Chassis Notes | To support the new generation Intel Xeon processor-based motherboards, Revision M chassis is recommended. |
| Mid-Tower | SC732D4F-903B, SC732i-865B |
| Tower / 4U Rackmount | SC743TQ-1200B, SC847BE1C-R1K28LPB, SC847BE2C-R1K28LPB |
| Expansion / Connectivity |
| Expansion Slots Total Free | 2x PCI-E 3.0 x16 |
| Expansion Slots Total (Free) | 1x PCI-E 3.0 x4 (in x8) |
| 4x PCI-E 3.0 x8 |
| System BIOS |
| BIOS Features | Plug and Play (PnP), PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | ACPI / APM Power Management, Power-on mode for AC power recovery |
| Software | Intel Node Manager 3.0, IPMI 2.0, NMI, SPM, SSM, SUM, SuperDoctor III, SuperDoctor 5, Watch Dog |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Operating Temperature | 10C - 35C (50F - 95F) |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
| Environmental |
| Operating Relative Humidity | 8% - 90% (non-condensing) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00042-0N |

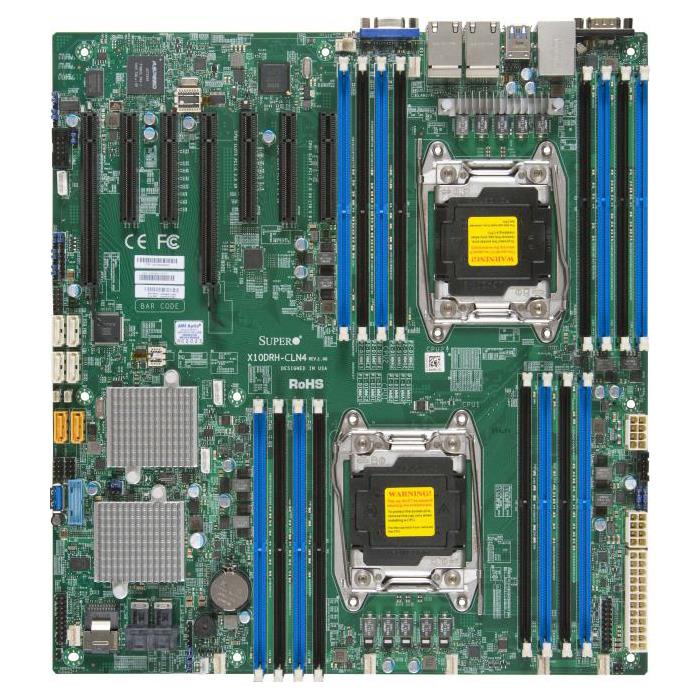

| Motherboard | 1x MBD-X10DRH-CLN4 |
