| Operating Environment (System) |
| Non-Operating Temperature Range | -40°C - 60°C (-40°F - 140°F) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply |
| Certification | Titanium Certified |
| Power Efficiency | 96% |
| Total Output Power and Input | 1200W with Input 200 - 240Vac |
| 1000W with Input 100 - 127Vac |
| 1200W with Input 200 - 240Vdc |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| +12V | Max: 100A / Min: 0A (200Vdc - 240Vdc) |
| Max: 100A / Min: 0A (200Vac - 240Vac) |
| Max: 83A / Min: 0A (100Vac - 127Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Power Distributor | -12V Max: 0.6A |
| +5V Max: 50A |
| PDB-PT418-B6824 |
| O/P: 12V/256 |
| +3.3V Max: 30A |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| FCC class A |
| UL/CUL |
| UL/CB |
| Product SKUs |

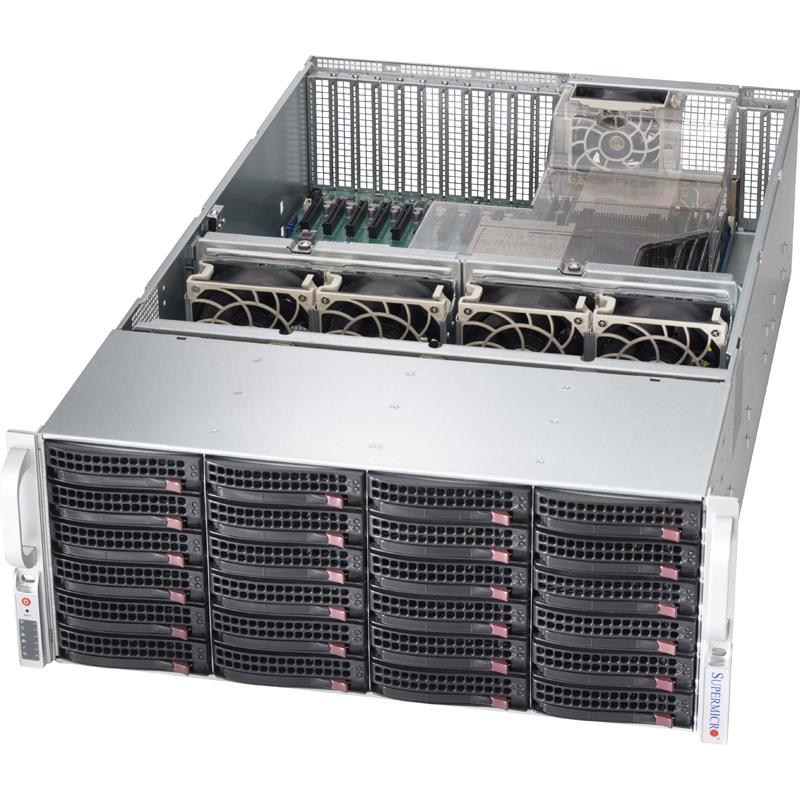

| Product SKUs | CSE-846XE2C-R1K23B |
| Form Factor |
| Form Factor | 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2" |
| Processor Support |
| Processor Support | Dual and Single Intel® and AMD processors |
| Dimensions |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29" (736 mm) |
| Gross Weight | 118 lbs (53.52 kg) |
| Net Weight | 86 lbs (39 kg) |
| Packaging (W x H x L) | 28" (711 mm) x 18" (457 mm) x 42" (1067 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 7x Full-height, Full-length expansion slot(s) |
| 4x Full-height, Half-length expansion slot(s) |
| Drive Bays |
| Drive Bays | 24x 3.5" hot-swap SAS/SATA drive bay with SES3 |
| Backplane |
| Backplane | 24-Port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| Peripheral Drives |
| Peripheral Drives | Optional 2x 2.5" hot-swap drive bay |
| Optional 4x 2.5" internal fixed drive bay |
| Optional 2x 3.5" internal fixed drive bay |
| Front Panel |
| Button | Power On/Off button |
| System Reset button |
| LED | Power status LED |
| HDD activity LED |
| 2 Network Activity LEDs |
| Fan Fail/System Over Heat LED |
| Power Fail LED |
| Systems Cooling |
| Fans | 1x 8cm hot-swap exhaust fan(s) & air shroud |
| 4x 92x38mm Hot-Swap Cooling Fans |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
