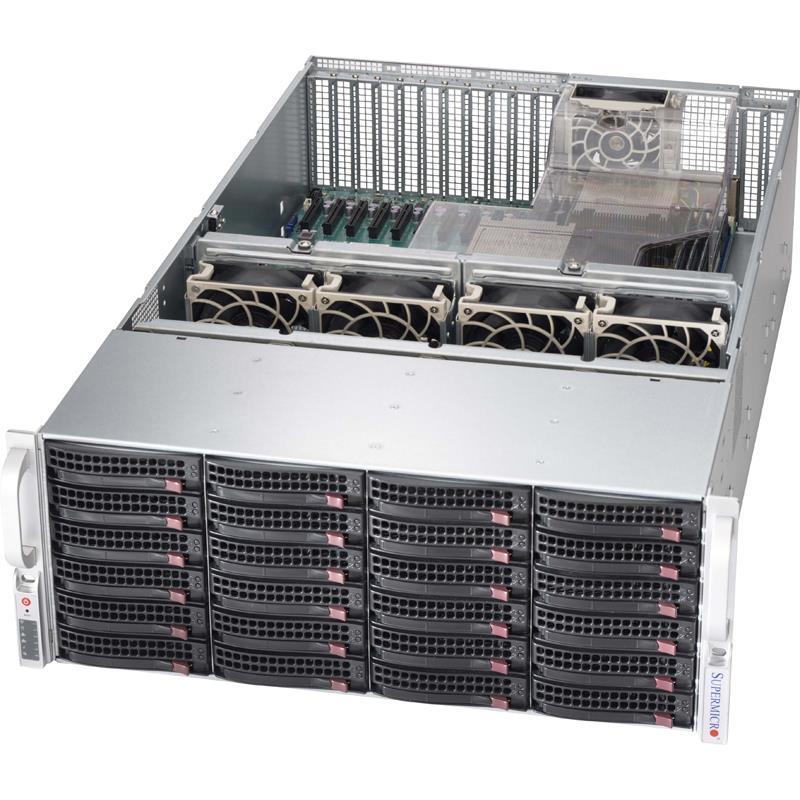

Supermicro CSE-846XA-R1K23B Server Chassis 4U Rackmount
• Hot-swap SAS2/SATA3 Drive Bays
• Mini-i-Pass (SFF 8087) connectivity
• Cooling fans w/adjustable air shroud
• Can be configured as JBOD or Headunit
Rackmount 4U w/ Redundant 1200W/1000W 80 Plus Titanium Power Supply - Supports Intel/AMD single/dual processors - Includes 24x 3.5in Hot-Swap SAS/SATA Drive Bays w/ SES2, 2 x 2.5in hot-swap drive bays, 13x FH/FL expansion slots, Rails Kit - SC846XA-R1K23B 4U Chassis - (Black)
1. 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays w/ Direct Attached HDD backplane
2. Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
3. Mini-i-Pass (SFF 8087) connectivity;
4. Support two 1000W BBP
5. Support up to 13 FH FL expansion slots
6. High Availability PS, Storage Capacity, and numerous I/O slots
Extra Specifications for Supermicro CSE-846XA-R1K23B Server Chassis 4U Rackmount
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 1200W with Input 200 - 240Vac | |
| 1000W with Input 100 - 127Vac | ||
| 1200W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 100A / Min: 0A (200Vdc - 240Vdc) | |
| Max: 100A / Min: 0A (200Vac - 240Vac) | ||
| Max: 83A / Min: 0A (100Vac - 127Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6A | |
| +5V Max: 50A | ||
| PDB-PT418-B6824 | ||
| O/P: 12V/256 | ||
| +3.3V Max: 30A | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Product SKUs | ||
| Product SKUs | CSE-846XA-R1K23B | |
| Form Factor | ||
| Form Factor | 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 7" (178 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 29" (736 mm) | |
| Gross Weight | 118 lbs (53.52 kg) | |
| Net Weight | 86 lbs (39 kg) | |
| Packaging (W x H x L) | 28" (711 mm) x 18" (457 mm) x 42" (1067 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Full-height, Full-length expansion slot(s) | |
| 4x Full-height, Half-length expansion slot(s) | ||
| Drive Bays | ||
| Drive Bays | 24x 3.5" hot-swap SAS/SATA drive bay | |
| Backplane | ||
| Backplane | 24-Port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 2x 2.5" hot-swap drive bay | |
| Optional 4x 2.5" internal fixed drive bay | ||
| Optional 2x 3.5" internal fixed drive bay | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Fan Fail/System Over Heat LED | ||
| Power Fail LED | ||
| Systems Cooling | ||
| Fans | 1x 8cm hot-swap exhaust fan(s) & air shroud | |
| 4x 92x38mm Hot-Swap Cooling Fans | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
