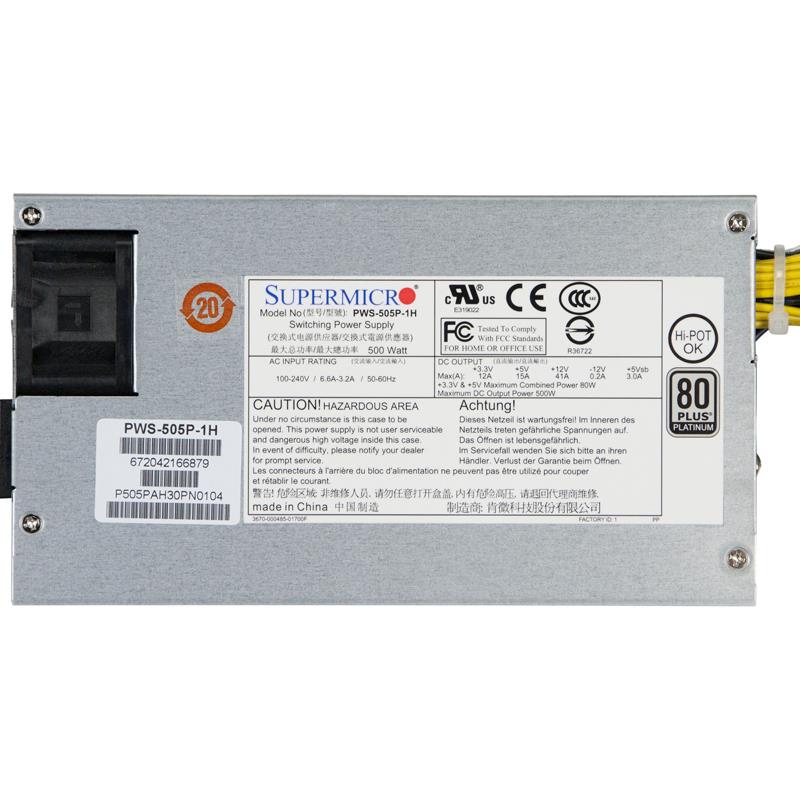

Supermicro PWS-505P-1H 1U 500W 80 Plus Platinum Power Supply With PFC And PMBus Support

• Active PFC for High Efficiency
• Comply with RoHS requirements
• Designed for Supermicro 1U Server
• Simplicity of active power factor correction

Power Supply 500W Module, 80 Plus Platinum Certified, with PFC and PMBus

The Supermicro PWS-505P-1H is capable of 500W output power at high efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads.
This power supply is designed to not only provide you reliable power to your Supermicro 1U server but also protect it from over-voltage, over-current, and short-circuiting via protective circuitry embedded into the unit.
All materials contained comply with RoHS requirements and are certified by Supermicro.

Main Specifications
Device Type	Power supply
Type	Single
Form Factor	1U - Internal
Dimensions (WxDxH)	100 x 40 x 180 mm
Output Type	24Pin ATX Cable Output
Power Device
Power Provided	500W
Input Voltage Range	100-240Vac
80 PLUS Certification	80 Plus Platinum
Power Supply
PFC	Yes
+5V	15A
+12V	41A
+3.3V	12A
Power Efficiency
Energy Efficient	92% Peak
Miscellaneous
Compatible Servers	SYS-1019D-14CN-FHN13TP, SYS-1019D-16C-FHN13TP, SYS-1019P-FHN2T, SYS-6018R-MD, SYS-6019P-MT
Compatible Chassis	CSE-514-505, CSE-515-505, CSE-523L-505B, CSE-813MF2TQC-505CB, CSE-813MFTQC-505CB, CSE-813MFTQC-505CB2
Compliant Standards	RoHS / REACH

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
