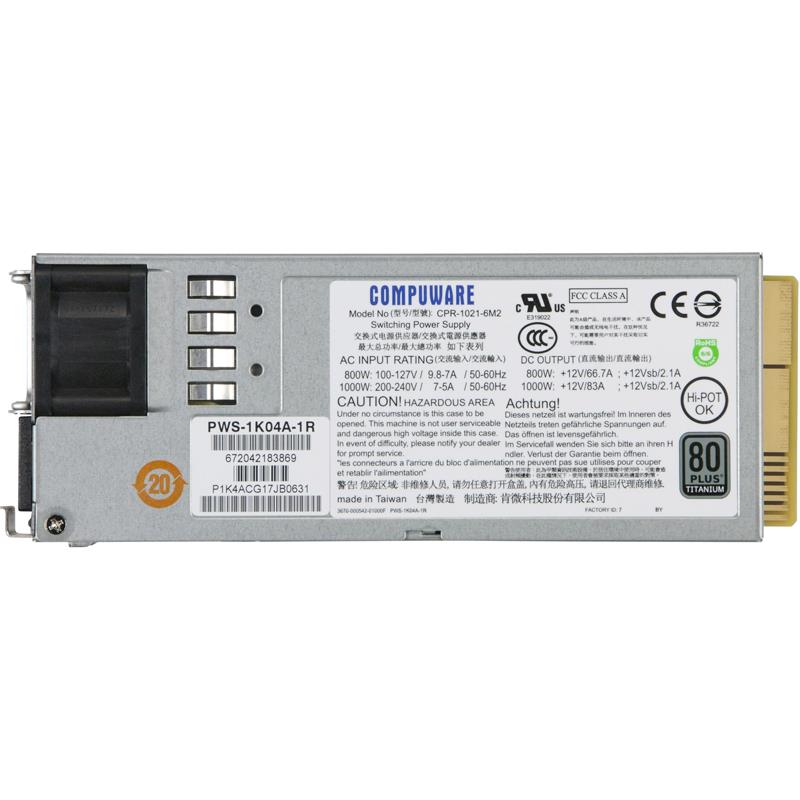

Supermicro PWS-1K04A-1R 1U 1000W 80 Plus Titanium Level Certified Power Supply
• 80 Plus Titanium Supermicro Certified
• Designed for enterprise level applications
• Enjoy simplicity of active power factor correction
• LED keep you informed on normal/abnormal condition
Power Supply 1U 1000W, 80 Plus Titanium Level Certified, 120V-140V / 180V-240V, 50Hz/60Hz
The Supermicro PWS-1K04A-1R is an 80 Plus Titanium power supply capable of supplying 1000W output power at 96% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current, and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
In addition, this power supply comes equipped with a bootloader function for in-system upgradability and serviceability.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and are certified by Supermicro.
Extra Specifications for Supermicro PWS-1K04A-1R 1U 1000W 80 Plus Titanium Level Certified Power Supply
| Main Specifications | ||
| Device Type | Power Supply with PMBus | |
| Dimension(s) (WxDxH) | 73.5 x 40 x 185 mm | |
| Height (Rack Units) | 1U | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Power Device | ||
| Input Voltage | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| +12Vsb | Max: 2.1A / Min: 0A | |
| Power Provided | 800W/1000W | |
| Power Supply | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Certification | 80 Plus Titanium Level | |
| Miscellaneous | ||
| Features | Redundant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
