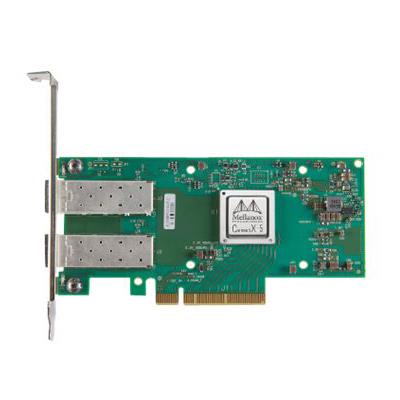

Supermicro AOC-MCX516A-CCHT Ethernet Adapter Card Standard Low-profile Dual QSFP28 Connector 100GbE Data Rate
Up to 100Gb/s connectivity per port
Enhanced vSwitch/vRouter offloads
Industry-leading throughput, low latency
Web 2.0, Cloud, Storage, and Telco platforms
100 Gbe Ethernet Adapter Card, Based on Mellanox ConnectX-5 Controller With Host Management, Provides Dual-port QSFP28 (copper and optical), Standard Low-profile, PCI-E 3.0 x16 Host Interface, Data Transmission Rate: 1/10/25/40/50/100 Gb/s, Tall Bracket Included, UEFI Enabled, RoHS Compliant (AOC-MCX516A-CCHT)
Intelligent RDMA-enabled, dual-port network adapter with advanced application offload capabilities for Web 2.0, Cloud, Storage, and Telco platforms.
Features
Tag matching and rendezvous offloads
Adaptive routing on reliable transport
Burst buffer offloads for background checkpointing
NVMe over Fabric offloads
Backend switch elimination by host chaining
Embedded PCIe switch
Enhanced vSwitch/vRouter offloads
Flexible pipeline
RoCE for overlay networks
PCIe Gen 4.0 support
RoHS compliant
ODCC compatible
Various form factors available
Benefits
Up to 100Gb/s connectivity per port
Industry-leading throughput, low latency, low CPU utilization and high message rate
Innovative rack design for storage and Machine Learning based on Host Chaining technology
Smart interconnect for x86, Power, Arm, and GPU-based compute & storage platforms
Advanced storage capabilities including NVMe over Fabric offloads
Intelligent network adapter supporting flexible pipeline programmability
Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
Enabler for efficient service chaining capabilities
Efficient I/O consolidation, lowering data center costs and complexity
Extra Specifications for Supermicro AOC-MCX516A-CCHT Ethernet Adapter Card Standard Low-profile Dual QSFP28 Connector 100GbE Data Rate
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express 3.0 x16 | |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0 | |
| Dimensions (WxDxH) | 5.6 in x 2.7 in | |
| Networking | ||
| Port Type | 100 Gigabit QSFP28 x 2 | |
| Connectivity Technology | Wired | |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet | |
| Data Transfer Rate | 100 Gbps | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, SMB, NFS | |
| Software / System Requirements | ||
| OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESX | |
| Expansion / Connectivity | ||
| Interfaces & Connections | 2 x 100Gb Ethernet - QSFP28 | |
| Miscellaneous | ||
| Features | NAT support, MPLS support, Quality of Service (QoS), Jumbo Frames support, RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, adaptive routing, Advanced Error Reporting (AER), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Header Data Split (HDS), Ethernet remote boot, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Link Aggregation, TLP Processing Hint (TPH), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), OVS Offload, Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), VLAN Tagging, Network Function Virtualization (NFV), NVMe over Fabric (NVMf) Offloads, Access Control Service (ACS), Process Address Space ID (PASID), Address Translation Services (ATS), Rendezvous protocol offload, MPI Tag Matching, burst buffer offload, GENEVE support, PCIe switch, NVMe over Fabrics (NVMe-oF), I/O Virtualization (IOV), NetQueue, Enhanced Host Management | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by | |
| Environmental Compliance | RoHS Compliant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
