  2. Supermicro AOC-QLE2692SR Fibre Channel Adapter Card Standard Low-profile Dual Connector 16Gbps Data Rate

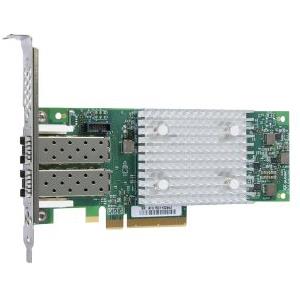

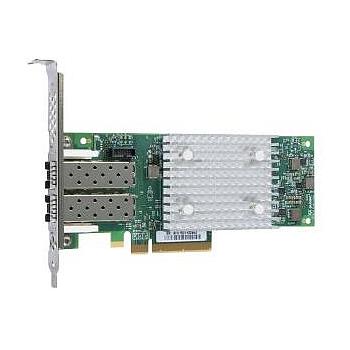

Supermicro AOC-QLE2692SR Fibre Channel Adapter Card Standard Low-profile Dual Connector 16Gbps Data Rate

Supermicro AOC-QLE2692SR Fibre Channel Adapter Card Standard Low-profile Dual Connector 16Gbps Data Rate

  • Performance SLA Enforcement with VM-level QoS

  • Dual-port Enhanced 16GFC Fibre Channel Adapters

  • Higher Resiliency and Performance with Automatic Error Recovery

16Gb FC Host Bus Adapter, Provides Dual LC port, Standard Low-profile, Enhanced Gen 5 PCI-E 3.0 x8 Host Interface, Data Transmission Rate: 16Gb Fibre Channel, Tall Bracket Included, (AOC-QLE2692SR)

$ 2,292.00$ 2,292.002292.0USD

$ 2,292.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The 2690 Series adapters support QLogic StorFusion technology offering comprehensive port diagnostics, rapid provisioning, guaranteed performance service level agreements (SLAs), and SAN congestion mitigation with FPINs when used in conjunction with Brocade Gen 5 FC Fabric. QLogic 2690 Series adapters provide unmatched operational efficiency with up to 75% lower power per port compared to the competition for reduced total cost of ownership (TCO). They also leverage QLogic StarPower™ technology with dynamic and adaptive power management features to optimize power and thermal footprints in the data center.

    Extra Specifications for Supermicro AOC-QLE2692SR Fibre Channel Adapter Card Standard Low-profile Dual Connector 16Gbps Data Rate

    Main Specifications
    Device TypeInternal Host Bus Adapter
    Form FactorPlug-in Card- Low-profile
    Interface (Bus) TypePCI Express 3.0 x8
    PCI Specification RevisionPCIe 3.1
    Dimensions (WxDxH)6.6 in x 2.7 in
    Networking
    Port Type16Gb Fibre Channel x 2
    Connectivity TechnologyWired
    Data Link Protocol16Gb Fibre Channel
    Fibre ChannelFC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP
    Data Transfer Rate16 Gbps
    Remote Management ProtocolSMI-S, CLI
    Software / System Requirements
    Software IncludedQConvergeConsole
    Environmental
    Operating EnvironmentMin Operating Temperature: 32 °F
    Max Operating Temperature: 131 °F
    Humidity Range Operating: 10 - 90%
    Expansion / Connectivity
    Interfaces & Connections2 x 16Gb Fibre Channel
    Miscellaneous
    Bracket IncludedFull-height bracket
    Compliant StandardsEN 61000-3-2, EN55022, EN 61000-3-3, EN55024, ICES-003 Class A, CSA C22.2, UL 60950-1, BSMI CNS 13438, KCC Class A, AS/NZS, VCCI Class A, FCC CFR47 Part 15 A
    FeaturesQuality of Service (QoS), UEFI support, BIOS support, Transparent (N_Port ID Virtualization - NPIV) mode support, Extended Message-Signaled Interrupts (MSI-X)

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:QLogic
    Type of Support:FULL
    Phone No.:952-932-4040
    URL:Click here for Manufacturer Website
