| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4 DIMM slots |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz |
| Memory Voltage | 1.2V |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | Intel® C236 |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| SATA | Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support) |
| Audio | ALC 888S HD Audio |
| System BIOS |
| BIOS Features | ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 3.0 |
| UEFI 2.3.1 |
| BIOS Type | AMI UEFI |
| Product SKUs |

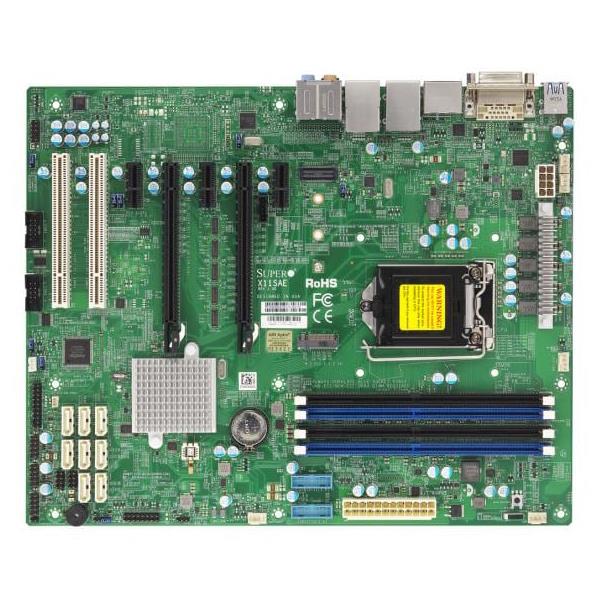

| Product SKUs | MBD-X11SAE |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP |
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series |
| A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3 |
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series |
| Input / Output |
| USB | 8 USB 2.0 port(s) (6 via header; 2 rear Type A) |
| 6 USB 3.2 Gen 1x1 port(s) (2 rear Type A; 4 via header) |
| 2 USB 3.2 Gen 2x1 port(s) (2 rear Type A) |
| 2 USB 3.1 Gen 2 ports (2 Rear) |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) |
| Serial Port | 2 COM Port(s) (2 header) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 2 PCIe 3.0 x16, |
| 3 PCIe 3.0 x1, |
| ***2 PCIe x16 slots are running at x16/NA or x8/x8 *** |
| 2 PCI, |
| M.2 | Key: M-Key |
| M.2 Interface: 1 PCIe 3.0 x4 |
| Form Factor: 2242/2260/2280 |
| Management |
| Software | SuperDoctor® 5, AMT, vPro, Watchdog |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode |
| PC Health Monitoring |
| Voltage | VBAT, Monitors CPU voltages, Chassis intrusion header, +5V, +3.3V, +12V |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Suspend static indicator LED |
| Temperature | CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| I2C temperature sensing logic |
| FAN | Fan speed control |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
| Other Features | WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
