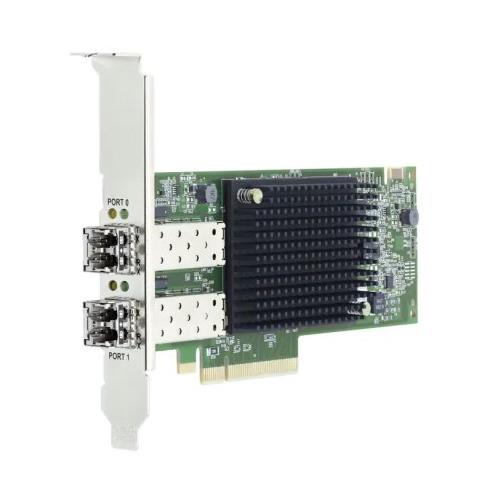

  2. Supermicro AOC-LPE35002-M2 Fibre Channel Adapter Card Standard Low-Profile Dual SFP+ Connector 32G Data Rate
Supermicro AOC-LPE35002-M2 Fibre Channel Adapter Card Standard Low-Profile Dual SFP+ Connector 32G Data Rate

Supermicro AOC-LPE35002-M2 Fibre Channel Adapter Card Standard Low-Profile Dual SFP+ Connector 32G Data Rate

  • 2 Port 32GFC Short Wave Optical – LC SFP+

  • Building Data Center Security on Silicon Root of Trust

32Gb FC Host Bus Adapter Card, Based on Broadcom (Emulex) Controller, Provides Dual-port SFP+ with Transceivers Installed, PCIe Gen4 x8 Host Interface, Data Transmission Rate: 32Gb Fibre Channel Short Wave Optical, Low-profile bracket Included, RoHS Compliant (AOC-LPE35002-M2)

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Applications continue to grow in size and scale and, to support them, enterprises are increasingly turning to new server technologies that contain hundreds of processor cores as well as high-performance storage solutions including low-latency NVMe all-flash arrays (AFAs). NVMe can significantly increase the performance of storage area networks (SANs), making the selection of high-speed networking technology the critical element for achieving maximum system-wide performance.

    Extra Specifications for Supermicro AOC-LPE35002-M2 Fibre Channel Adapter Card Standard Low-Profile Dual SFP+ Connector 32G Data Rate

    Main Specifications
    Device TypeInternal Host Bus Adapter
    Form FactorPlug-in card - low profile
    Interface (Bus) TypePCI Express 4.0 x8
    PCI Specification RevisionPCIe 4.0
    Dimensions (WxDxH)6.6 in x 2.7 in
    Networking
    Port Type32Gb Fibre Channel Gen 7 (Short Wave) x 2
    Connectivity TechnologyWired
    Data Link Protocol32Gb Fibre Channel Gen 7 (Short Wave)
    Data Transfer Rate28.05 Gbps
    Fibre ChannelFC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SPC-3, FC-FS-4, FC-GS-7, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3, FC-LS-3, FC-NVMe, FC-FS-5, FC-PI-7
    Cabling TypeFibre Channel
    Expansion / Connectivity
    Interfaces & Connections2 x 32Gb Fibre Channel Gen 7 (Short Wave) - LC
    Environmental
    Operating EnvironmentMin Operating Temperature: 32 °F
    Humidity Range Operating: 5 - 95% (non-condensing)
    Max Operating Temperature: 131 °F
    Miscellaneous
    Compliant StandardsFCC Class A certified, CSA, UL, RoHS, BSMI Class A, ICES Class A, KCC Class A, VCCI Class A, China RoHS, RCM

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Nvidia
    Type of Support:FULL
    Phone No.:800-797-6530
    URL:Click here for Manufacturer Website
