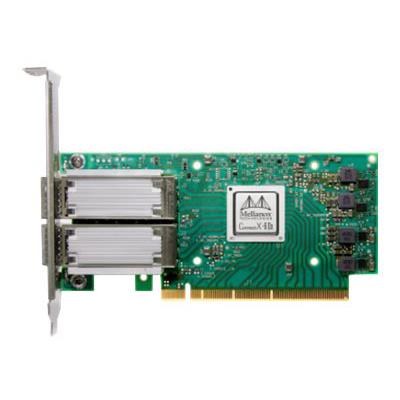

- Supermicro AOC-623106AC-CDAT ConnectX-6 Dx EN 100GbE Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
Supermicro AOC-623106AC-CDAT ConnectX-6 Dx EN 100GbE Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
Up to 100GbE connectivity per port
RDMA for high-performance storage access
Crypto and Secure Boot, Tall Bracket Included
100Gbe Ethernet Adapter Card, Based on NVIDIA ConnectX-6 DX Controller, Provides Dual-port QSFP56, PCIe 4.0 x16 Host Interface, Data Transmission Rate: 100Gb, Tall-Bracket Included, Crypto and Secure Boot, (AOC-623106AC-CDAT)
As the world's most advanced cloud SmartNIC, ConnectX-6 Dx provides up to two ports of 100Gb/s Ethernet connectivity, powered by 50Gb/s PAM4 SerDes technology and PCIe Gen 4.0 host connectivity. ConnectX-6 Dx continues among NVIDIA's innovation path in scalable cloud fabrics, delivering unparalleled performance and efficiency at every scale. ConnectX-6 Dx's innovative hardware offload engines, including IPsec and TLS inline data-in-motion encryption, are ideal for enabling secure network connectivity in modern data-center environments.
Extra Specifications for Supermicro AOC-623106AC-CDAT ConnectX-6 Dx EN 100GbE Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCI Express 4.0 x16 | |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 | |
| Networking | ||
| Port Type | 100 Gigabit QSFP56 x 2 | |
| Connectivity Technology | Wired | |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet | |
| Data Transfer Rate | 100 Gbps | |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, SMB | |
| Expansion / Connectivity | ||
| Interfaces & Connections | 2 x 100Gb Ethernet - SFP56 | |
| Miscellaneous | ||
| Features | Firewall protection, MPLS support, DoS attack prevention, firmware upgradable, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, Advanced Error Reporting (AER), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Ethernet remote boot, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Link Aggregation, TLP Processing Hint (TPH), Software Defined Networking (SDN), Message Signaled Interrupts (MSI), Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), VLAN Tagging, Accelerated Switching And Packet Processing (ASAP), MCTP over SMBus, Network Function Virtualization (NFV), GENEVE support, NVMe over Fabrics (NVMe-oF) | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd | |
| Encryption Algorithm | TLS, 256-bit AES-GCM, 128-bit AES-GCM, AES-XTS | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Mellanox |
| Type of Support: | FULL |
| Phone No.: | 408-916-0055 |
| URL: | Click here for Manufacturer Website |
