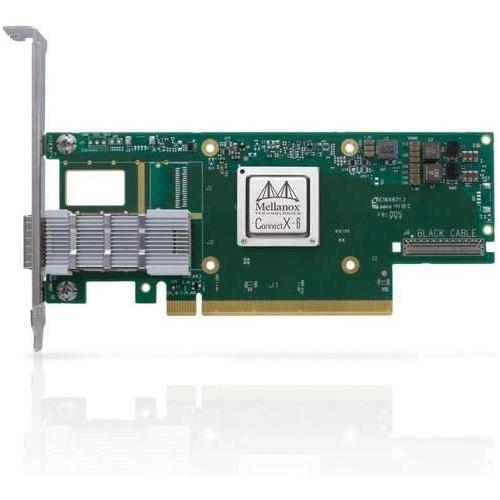

  2. Supermicro AOC-683105AN-HDAT ConnectX-6 VPI 200GbE Network Adapter Card Gen 4 PCIe x16 Single-port QSFP56 Connectors Low-profile
Supermicro AOC-683105AN-HDAT ConnectX-6 VPI 200GbE Network Adapter Card Gen 4 PCIe x16 Single-port QSFP56 Connectors Low-profile

Supermicro AOC-683105AN-HDAT ConnectX-6 VPI 200GbE Network Adapter Card Gen 4 PCIe x16 Single-port QSFP56 Connectors Low-profile

  • NVIDIA Multi-Host and NVIDIA Socket Direct configurations

  • Secure data-center connectivity, Flexible pipeline programmability

  • Smart for x86, Power, ARM, and GPU-based compute and storage platforms

  • Industry-leading throughput, low latency, low CPU utilization, and high message rate

200GbE Nvidia Network Adapter Card, ConnectX-6 VPI, Provides Single QSFP InfiniBand (copper and optical), PCIe 4.0 x16 Host Interface, Data Transmission Rate: 200GbE (HDR/HDR100/EDR/FDR/SDR), Bracket Included, RoHS Compliant (AOC-683105AN-HDAT)

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    NVIDIA ConnectX-6 Dx is a member of the world-class, award-winning ConnectX series of network adapters. ConnectX-6 Dx delivers one ports of 200Gb/s Ethernet connectivity paired with best-in-class hardware capabilities that accelerate and secure cloud and data center workloads.


    Benefits


    • Message rate of up to 215MPPS

    • ASAP2 (Accelerated Switching and Packet Processing) for Virtual Switches/Routers

    • IPsec and TLS in-line crypto and block crypto acceleration

    • Hardware Root-of-Trust and secure firmware update

    • Advanced RoCE capabilities

    Extra Specifications for Supermicro AOC-683105AN-HDAT ConnectX-6 VPI 200GbE Network Adapter Card Gen 4 PCIe x16 Single-port QSFP56 Connectors Low-profile

    Main Specifications
    Device TypeNetwork adapter - 1 port
    Form FactorPlug-in Card
    Interface (Bus) TypePCI Express 4.0 x16
    PCI Specification RevisionPCIe 1.1, PCIe 2.0, PCIe 4.0
    Dimensions (WxDxH)5.59 in. x 2.71 in.
    Networking
    Port Type200Gb Ethernet / 200Gb Infiniband QSFP56 x 1
    Data Link ProtocolGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand
    Data Transfer Rate200 Gbps
    Connectivity TechnologyWired
    Expansion / Connectivity
    Interfaces & Connections1 x 200Gb Ethernet / 200Gb Infiniband - QSFP56
    Environmental
    Operating EnvironmentMin Operating Temperature: 32 °F
    Max Operating Temperature: 131 °F
    Humidity Range Operating: 90%
    Miscellaneous
    FeaturesAuto-negotiation, InfiniBand QDR Link support, InfiniBand DDR Link support, InfiniBand FDR Link support, InfiniBand SDR Link support, InfiniBand HDR Link support, no crypto
    Compliant StandardsIBTA 1.3
    Bracket IncludedTall Bracket
    Environmental ComplianceRoHS Compliant

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
