| Product SKUs |

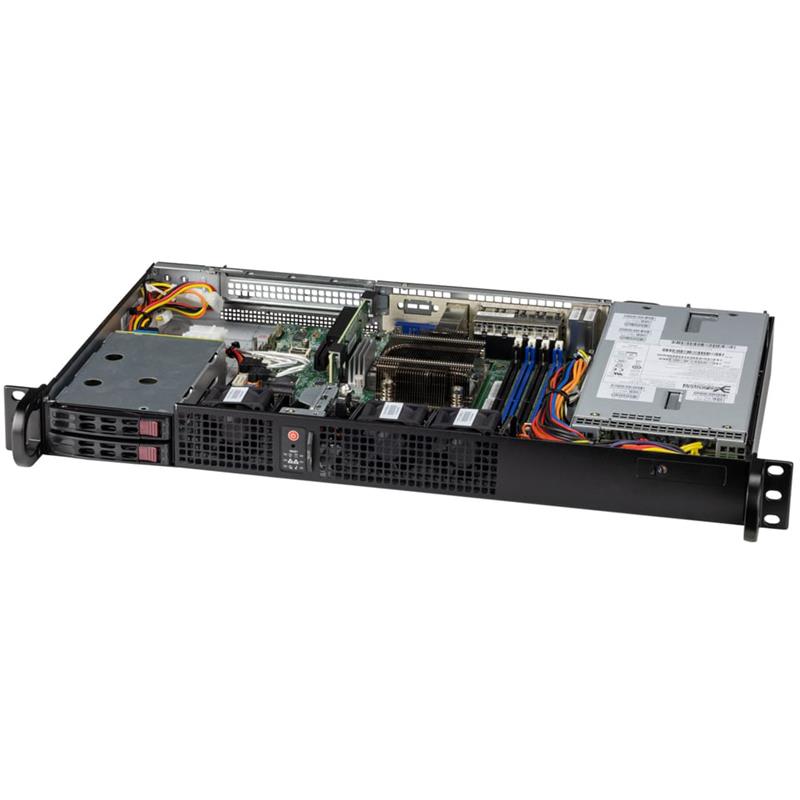

| Product SKUs | SYS-110A-16C-RN10SP |
| Motherboard |
| Motherboard | Super A3SSV-16C-SPLN10F |
| Processor |
| CPU | Single FCBGA-2106 |
| Intel® Atom® Snow Ridge P5342 |
| Support CPU TDP 71W |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Up to 256GB: ECC RDIMM/ECC non ECC UDIMM |
| Memory Type: 2667MHz ECC DDR4 RDIMM/UDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3.0 |
| Chipset | System on Chip |
| Network Connectivity | 4x 1GbE BaseT with Intel® i350-AM4 LAN controller |
| 4x 1GbE BaseT or 2x 25GbE SFP28 with Intel P5000 SoC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| SATA | 2 SATA (6Gbps) port(s) |
| LAN | 1 Dedicated IPMI LAN port |
| 2x 25 GbE |
| 8x 1 GbE |
| USB | 2 USB 3.1 Gen1 port(s) (2 USB) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| Management |
| Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM suppor |
| Power Configurations | CPU thermal trip support for processor protection |
| PC Health Monitoring |
| FAN | Pulse Width Modulated (PWM) fan connectors |
| Support 3-pin fans (w/o speed control) |
| 3 fans with tachometer status monitoring, Status monitoring for speed control |
| Temperature | CPU thermal trip support |
| Thermal Control for 3 Fan Connectors |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-506TS-R000NP |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 9.8" (249mm) |
| Package | 6.1" (H) x 25.8" (W) x 18.3" (D) |
| Weight | Net Weight: 8 lbs (3.63 kg) |
| Gross Weight: 12 lbs (5.44 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off |
| Reset On/Off |
| LEDs | Power status |
| LAN1 activity |
| System information |
| LAN2 activity |
| HDD Status |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe Gen 3.0 x8 HHHL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 2x 2.5" hot-swap SATA/SAS drive bays |
| M.2 | 1x M-Key 2242/2280/22110 (PCIe 2.0 x4/SATA 2.0/USB 2.0) |
| 1x B-Key 2242/3042/2280 (PCIe 2.0 x2/SATA 2.0/USB 3.0) |
| 1x E-Key 2230 (PCIe 2.0 x1/USB 2.0) |
| System Cooling |
| Fans | 3x 4-PIN PWM 40x28mm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 106 x 40.5 x 220 mm |
| AC Input | 300W: 100-240Vac / 68.5A Max / 50-60Hz |
| Certification | Gold Level |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
| Note | Operating Temperature: Continuous 0°C ~ 40°C (32°F ~ 104°F), Short term -5°C ~ 55°C (23°F ~ 131°F) |
| Acceptable AC Input Voltage: 100-240Vac / 5.5A-10A / 50-60Hz |
