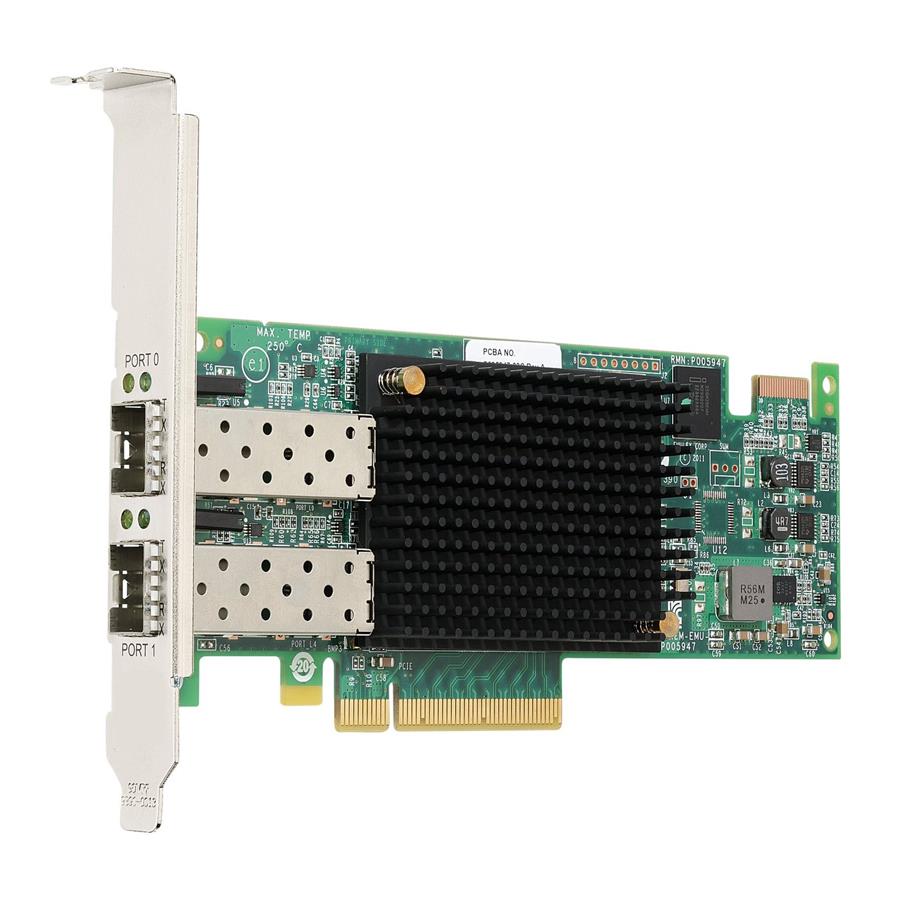

Supermicro AOC-LPE16002B-M6 Fibre Channel Host Bus Adapter 2 FC Port 16GFC LC SFP+
75% Better throughput for VMware ESXi
Delivering up to 1.2 million IOPS on a single-port
Powered by the XE201 converged fabric controller
End-to-end data protection with hardware parity, CRC, ECC
16Gb Fibre Channel Host Bus Adapter 5 Generation, Powered By The XE201 Converged Fabric Controller, 2x FC Port at 16GFC, PCIe 3.0 x8, Standard Low Profile - Supports 16GFC, 8GFC and 4GFC Link Speeds, Automatically Negotiated (AOC-LPE16002B-M6-O)
16Gb Fibre Channel Host Bus Adapter 5 Generation.
Emulex Gen 5 Fibre Channel (16GFC) Host Bus Adapters (HBAs) for EMC provide up to 1.2million IOPS on a single-port, 2x bandwidth and lightning fast response times*, making it ideal for deployment with solid state disks (SSDs) and new multi-core processors.
The Emulex Dynamic Multi-core Architecture delivers optimum I/O performance by dynamically applying ASIC resources to either a single active port or across both active ports, as demanded by the workload. This ensures that performance is delivered when and where needed, to meet service level agreements (SLAs).
In high-density virtual environments with mixed storage, scaling to meet business needs can be complex and often results in performance degradation. Emulex ExpressLane provides QoS and application performance between servers and across the fabric by tackling congestion in storage environments. ExpressLane is easily enabled from Emulex OneCommand Manager extending into Brocade’s fabric QoS.
Key benefits
Emulex Dynamic Multi-core Architecture delivers maximum performance—up to 1.2 million IOPS on a single port, 20% more than other Gen 5 HBAs
Simplified and time-saving diagnostics by using Brocade ClearLink supported Switches and Emulex HBAs
Ability to meet SLAs and ensure Quality of Service for prioritized traffic with ExpressLane
Improves IT staff productivity through simplified deployment and management
Reduces the number of cards, cables and PCIe slots required
Exceptional performance per watt and price/performance ratios
Integrates seamlessly into existing SANs
Allows application of SAN best practices, tools and processes with virtual server deployments
Assures data availability and data integrity
Extra Specifications for Supermicro AOC-LPE16002B-M6 Fibre Channel Host Bus Adapter 2 FC Port 16GFC LC SFP+
| Main Specifications | ||
| Device Type | Internal Host Bus Adapter | |
| Form Factor | MD2-Low Profile | |
| Interface (Bus) Type | PCI Express 3.0 x8 | |
| Dimensions (WxDxH) | 6.600" x 2.712" | |
| Type of Fiber Optics | Short wave lasers with LC type connector | |
| Cable Configuration | Operating at 16Gb - 15m at 16Gb on 62.5/125 μm OM1 MMF, 35m at 16Gb on 50/125 μm OM2 MMF, 100m at 16Gb on 50/125 μm OM3 MMF, 125m at 16Gb on 50/125 μm OM4 MMF | |
| Networking | ||
| Port Type | Dual-port 16GFC | |
| Data Transfer Rate | 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s); 4.25 Gb/s (400 Mb/s) (auto-detected) | |
| Software / System Requirements | ||
| OS Supports | Windows Server, Linux, Solaris, VMware vSphere, Windows Hyper-V, Additional support is available from OEMs and partners | |
| Power | ||
| Power Consumption | 1.8V, 1.2V, 0.9V | |
| Environmental | ||
| Operating Environment | Relative Humidity: Non-Operating 5 % to 95 % R.H. (No condensation) | |
| Operating temperature: 0°C to 55°C (32°F to 131°F) | ||
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Miscellaneous | ||
| Features | Supports 16GFC, 8GFC and 4GFC link speeds, automatically negotiated | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
