| System Memory |
| Memory Capacity | 12 DIMM slots |
| Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type | 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC) |
| DIMM Sizes | 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| Input / Output |
| SATA | 8 SATA3 (6Gbps) port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA port(s) |
| TPM | 1 TPM Header |
| Others | 1 MCIO (PCIe 5.0 x8/SATA3) Port(s) |
| 2 MCIO (PCIe 5.0 x8) Port(s) |
| USB | 6 USB 3.0 port(s) (4 USB; 2 via header) |
| Serial Port | 1 COM Port(s) (1 header) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| LED | UID/Remote UID |
| BMC/IPMI Heartbeat LED |
| Other Features | RoT |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Product SKUs |

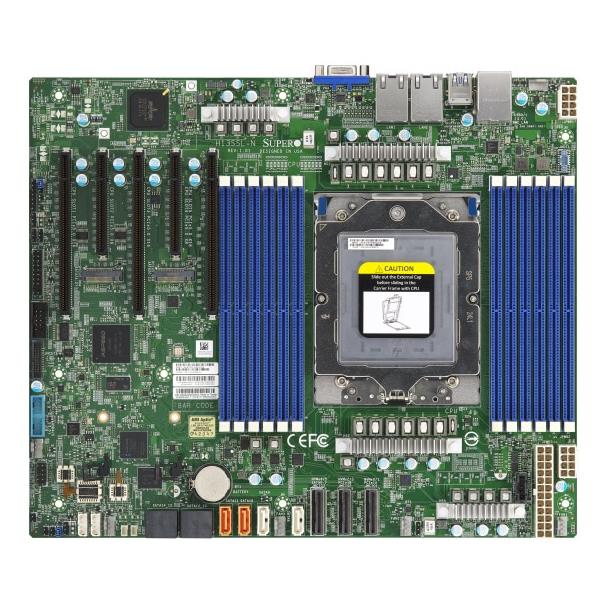

| Product SKUs | MBD-H13SSL-N |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 10.1" (30.48cm x 25.65cm) |
| Processor |
| CPU | AMD EPYC™ 9004 series Processors |
| Single Socket SP5 supported, CPU TDP supports Up to 400W TDP |
| Core | Up to 96/192 |
| Expansion Slots |
| PCIe | 3 PCIe 5.0 x16 (in x16 slot), |
| 2 PCIe 5.0 x8 |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 SATA/PCIe 4.0 x4 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
