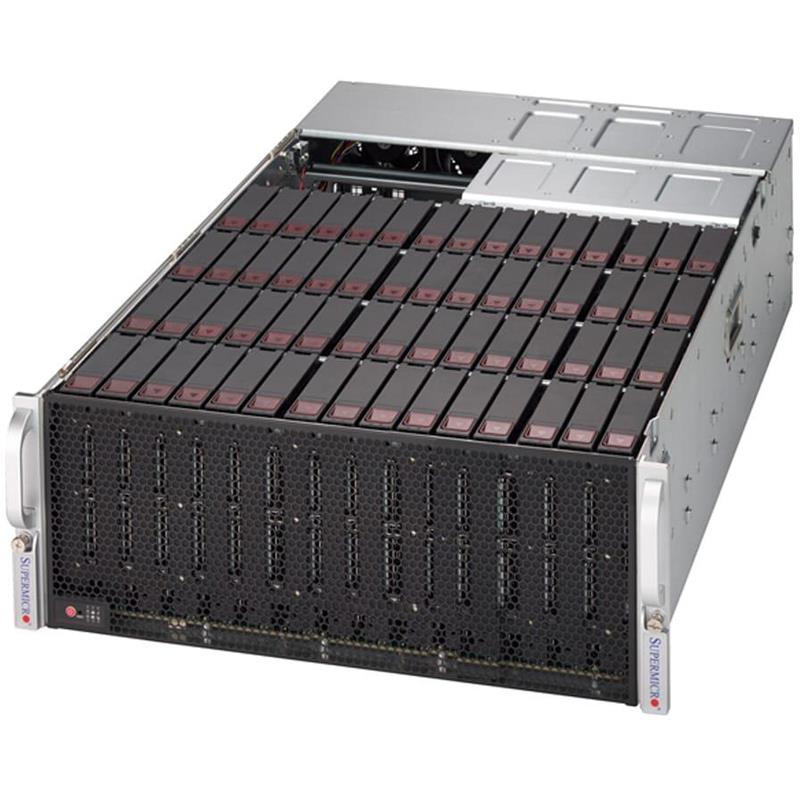

Supermicro SSG-540P-E1CTR60H Storage UP 4U Barebone Single Intel Xeon Scalable Processors 3rd Generation
• Database Applications
• Backup Storage, Cold Storage
• Data Warehousing, Archiving
Barebone 4U Rackmount SuperServer, Support Single Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Intel C621A, Up to 2TB in 8 DIMM slots, RDIMM/LRDIMM/Intel DCPMM, On-Board : SATA3 (6Gbps) via C621A Chipset RAID 0/1/5/10 support, SAS3 (12Gbps) via Broadcom 3916, RAID 0/1/5/6/10/50/60 support 60x 3.5in Hot-Swap SATA3/SAS3 Drive Bays, M.2, 1x RJ45 Dedicated IPMI LAN port, 2x RJ45 10GBase-T LAN Ports, 2 SuperDOM port, 1000W/1600W Power Supply - (SSG-540P-E1CTR60H + Super X12SPI-TF)
1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
4. Intel® Ethernet Controller X550 2x 10GbE RJ45
5. 60x Top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
6. 5 Hot-Swap 8cm redundant PWM fans
7. Redundant Titanium 1600W Power Supply
Extra Specifications for Supermicro SSG-540P-E1CTR60H Storage UP 4U Barebone Single Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12SPI-TF | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Single Socket P+ (LGA-4189) | ||
| Cores | Up to 38C/76T; Up to 57MB Cache | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 8 DIMM slots | ||
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 2TB: 8x 256 GB DRAM | ||
| Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support | |
| SAS | SAS3 (12Gbps) via Broadcom 3916; RAID 0, 1, 5, 6, 10, 50, 60 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ-45 10Gbase-T ports | ||
| USB | 4 USB 3.0 port(s) (4 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSV-946STS-R1K6LPP | |
| Dimensions and Weight | ||
| Height | 7" | |
| Width | 17.2" | |
| Depth | 30.2" (767mm) | |
| Package | 33.25" (H) x 28" (W) x 42.5" (D) | |
| Weight | Net Weight: 117 lbs (53 kg) | |
| Gross Weight: 169.5 lbs (76.9 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 60x 3.5" hot-swap SATA3/SAS3 drive bays | |
| M.2 | 1x PCIe 3.0 x4 and SATA | |
| System Cooling | ||
| Fans | 5 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz | |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 133.3A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-540P-E1CTR60H | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) | |
| 3 PCIe 4.0 x8 LP slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2x 2.5" NVMe Cage (Rear) | MCP-220-82620-0N +CBL-SAST-1231-85 + CBL-PWEX-1276 + CBL-0303L (female to female) | 1 | Rear hot-swap 2x 2.5" NVMe drive kit | |||
| 2x 2.5" SATA/SAS Cage (Rear) | MCP-220-82616-0N •+ 1x CBL-SAST-0699 • + 1x CBL-0234L • | 1 | Rear hot-swap 2x 2.5" SATA/SAS drive kit | |||
| CacheVault | BTR-CVPM05 • & BKT-BBU-BRACKET-05 (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location | |||
| Intel VROC RAID Key for NVMe | AOC-VROCINTMOD | 1 | Intel SSD Only Upgrade module; RAID 0/1/10/5 | |||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD • | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | |||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD • | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | |||
| Network Cards | AOC-S25G-M2S | $ 204.00 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 • | 0 | Standard LP 2-port GbE, Intel 82575 | |||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & Generation) | |||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 0 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
