System Memory |
Memory Voltage | 1.1 V |
Error Detection | ECC |
Memory | Memory Capacity: 32 DIMM slots |
| Up to 8TB: 32x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 RDIMM;LRDIMM |
On-Board Devices |
Chipset | Intel® C741 |
Network Connectivity | Via AIOM |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Input / Output |
LAN | 1 RJ45 Dedicated IPMI LAN port |
USB | 4 USB 3.0 port(s) (2 front; 2 rear) |
Video | 1 VGA port(s) |
Serial Port | 1 COM Port(s) (1 rear) |
System BIOS |
BIOS Type | AMI 32MB SPI Flash EEPROM |
Management |
Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
PC Health Monitoring |
CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
Front Panel |
Buttons | Power On/Off |
LEDs | Power status |
| Network activity |
| System information (overheat/UID) |
| SSD activity |
Power Supply |
Certification | Titanium Level |
Dimension (W x H x L) | 73.5 x 40 x 203 mm |
AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 220-240Vac / 50-60Hz |
| 2000W: 230-240Vdc |
+12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166A / Min: 0A (230Vac-240Vac) |
12V SB | Max: 3.5A / Min: 0A |
Output Type | Backplanes (gold finger) |
Product SKUs |

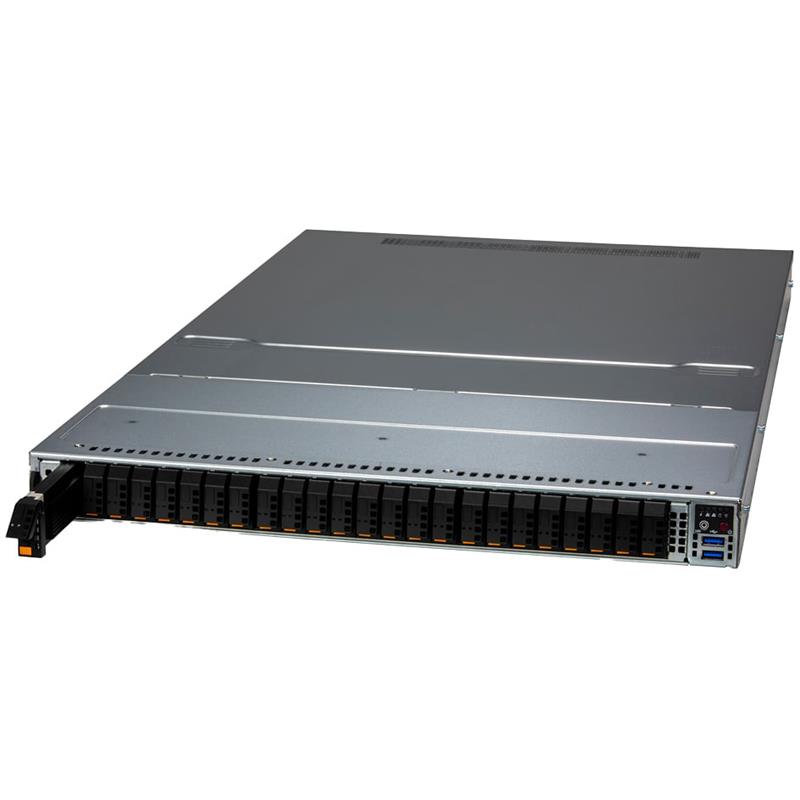

Product SKUs | SSG-121E-NES24R |
Motherboard |
Motherboard | Super X13DSF-A |
Processor |
CPU | Dual Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors |
Note | Supports 145W - 270W TDP CPUs (Air Cooled) |
Chassis |
Form Factor | 1U Rackmount |
Model | CSE-126ES2-R2K08P |
Dimensions and Weight |
Height | 1.7" (43.6mm) |
Width | 17.2" (438.4mm) |
Depth | 30.4" (773.25mm) |
Package | 7.87" (H) x 23.81" (W) x 40.55" (D) |
Weight | Net Weight: 48 lbs (21.8 kg) |
| Gross Weight: 68.74 lbs (31.2 kg) |
Available Color | Silver |
Expansion Slots |
PCI-Express (PCIe) | 2 PCIe 5.0 x16 FH slot(s) |
| 2 PCIe 5.0 x16 AIOM slot(s) |
Drive Bays / Storage |
Hot-swap | 24x E1.S Hot-swap NVMe (9.5mm or 15mm) drive slots |
M.2 | 2x PCIe 3.0 (NVMe or SATA3 Hybrid slots) |
| M-Key, 2280 and 22110 |
System Cooling |
Fans | 8 Heavy Duty 4cm Fan(s) |
Operating Environment |
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
