- Supermicro SYS-110A-24C-RN10SP IoT SuperServer 1U Barebone Embedded Intel Atom Snow Ridge P5362 Processor

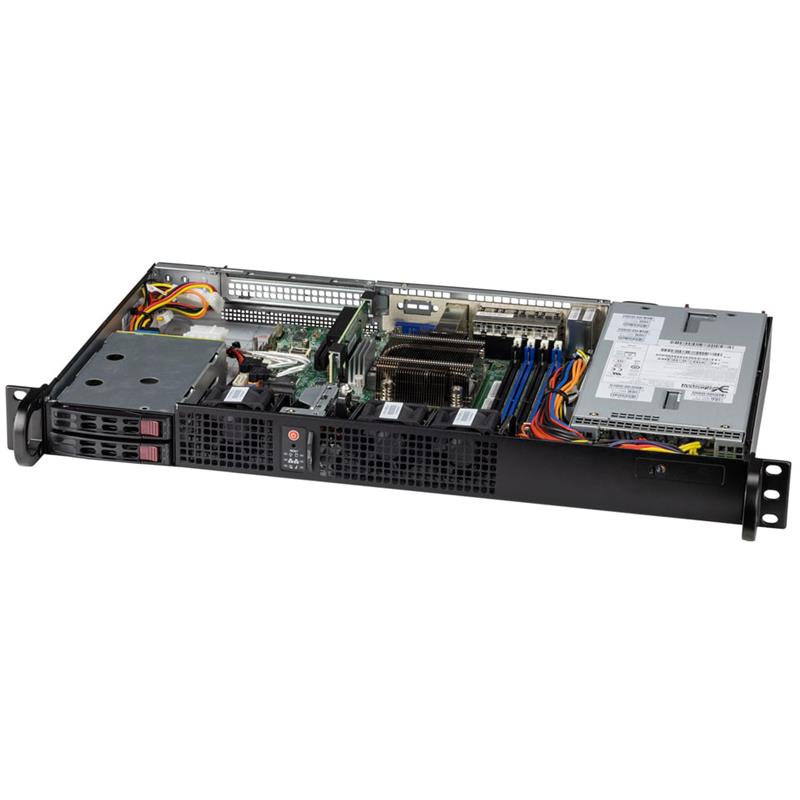

Supermicro SYS-110A-24C-RN10SP IoT SuperServer 1U Barebone Embedded Intel Atom Snow Ridge P5362 Processor
• 1U Short-Depth Edge Server
• Network Appliance & Security
• SD-WAN and vCPE / uCPE
• Hyper Converged Infrastructure
Barebone 1U Rackmount SuperServer, Embedded Intel Atom Snow Ridge P5362 Processor, Core-24 / 24 Thread. Up to 256GB in 4 DIMM slots, RDIMM/UDIMM, System on Chip, On-Board: SoC controller SATA2 (3 Gbps), 2x 2.5in Hot-Swap SATA/PCIe Drive Bays, M.2: 1x M-Key, 1x B-Key, 1x E-Key, 1 Dedicated IPMI, 2x 25 GbE, 8x 1 GbE LAN port, 300W Power supply - (SYS-110A-24C-RN10SP + A3SSV-24C-SPLN10F)
1. Intel® Atom® Snow Ridge P5362 24-Core with embedded QAT support
2. 1x PCIe 3.0 x8 expansion for AOC
3. 2 Hot-swap 2.5" SATA3 drive bays
4. 3x 40x28mm 4-PIN PWM fans
5. Cost Effective 1U Short-Depth Chassis with Redundant 300 PSU
6. M.2 selections (M.2 M-Key for SSD, B-Key for WAN or 4G-LTE module, Ekey for WiFi ) TPM Onboard and header both, IPMI with OOB support
Extra Specifications for Supermicro SYS-110A-24C-RN10SP IoT SuperServer 1U Barebone Embedded Intel Atom Snow Ridge P5362 Processor
| System Memory | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| Memory | Memory Capacity: 4 DIMM slots | |
| Up to 256GB: ECC RDIMM/ECC non ECC UDIMM | ||
| Memory Type: 2933MHz ECC DDR4 RDIMM/UDIMM | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 4x 1GbE BaseT with Intel® i350-AM4 LAN controller | |
| 4x 1GbE BaseT or 2x 25GbE SFP28 with Intel P5000 SoC | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| SATA | SATA3.0 | |
| Input / Output | ||
| SATA | 2 SATA (6Gbps) port(s) | |

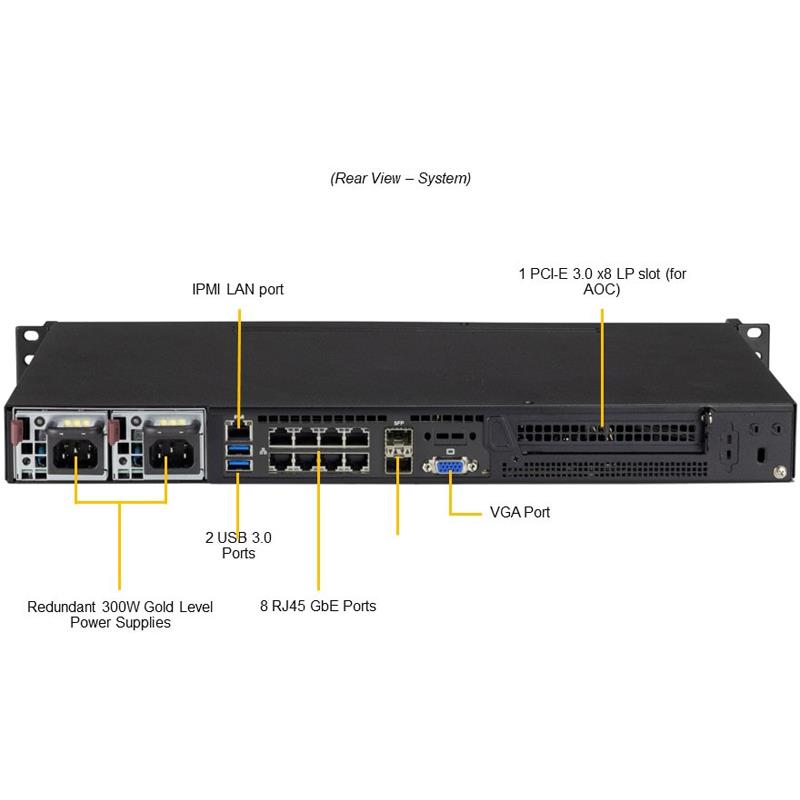

| LAN | 1 Dedicated IPMI LAN port | |
| 2x 25 GbE | ||
| 8x 1 GbE | ||
| USB | 2 USB 3.1 Gen1 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB UEFI | |
| Management | ||
| Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM suppor | |
| Power Configurations | CPU thermal trip support for processor protection | |
| PC Health Monitoring | ||
| Temperature | CPU thermal trip support | |
| Thermal Control for 3 Fan Connectors | ||
| FAN | Pulse Width Modulated (PWM) fan connectors | |
| Support 3-pin fans (w/o speed control) | ||
| 3 fans with tachometer status monitoring, Status monitoring for speed control | ||
| Fan speed control, Dual Cooling Zone | ||
| Front Panel | ||
| Buttons | Power On/Off | |
| Reset On/Off | ||
| LEDs | Power status | |
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| HDD Status | ||
| Power Supply | ||
| Certification | Gold Level | |
| Dimension (W x H x L) | 106 x 40.5 x 220 mm | |
| AC Input | 300W: 100-240Vac / 68.5A Max / 50-60Hz | |
| Product SKUs | ||
| Product SKUs | SYS-110A-24C-RN10SP | |
| Motherboard | ||
| Motherboard | Super A3SSV-24C-SPLN10F | |
| Processor | ||
| CPU | Single FCBGA-2106 | |
| Intel® Atom® Snow Ridge P5362 | ||
| Support CPU TDP 83W | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-506TS-R000NP | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Package | 6.1" (H) x 25.8" (W) x 18.3" (D) | |
| Weight | Net Weight: 8 lbs (3.63 kg) | |
| Gross Weight: 12 lbs (5.44 kg) | ||
| Available Color | Black | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe Gen 3.0 x8 HHHL slot(s) | |
| Drive Bays / Storage | ||
| Hot-swap | 2x 2.5" hot-swap SATA/SAS drive bays | |
| M.2 | 1x M-Key 2242/2280/22110 (PCIe 2.0 x4/SATA 2.0/USB 2.0) | |
| 1x B-Key 2242/3042/2280 (PCIe 2.0 x2/SATA 2.0/USB 3.0) | ||
| 1x E-Key 2230 (PCIe 2.0 x1/USB 2.0) | ||
| System Cooling | ||
| Fans | 3x 4-PIN PWM 40x28mm Fan(s) | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Note | Operating Temperature: Continuous 0°C ~ 40°C (32°F ~ 104°F), Short term -5°C ~ 55°C (23°F ~ 131°F) | |
| Acceptable AC Input Voltage: 100-240Vac / 5.5A-10A / 50-60Hz | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A3SSV-24C-SPLN10F | 1 | Super A3SSV-24C-SPLN10F Motherboard | |
| Motherboard / Chassis | CSE-506TS-R000NP | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable | CBL-0234L | 1 | Y CABLE FOR 4-PIN HDD | |
| Cable | CBL-SAST-0538 | 2 | 7pin SATA (STR to RA),29cm,PBF | |
| Cable | CBL-PWCD-0260-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1097-15 | 1 | [NR] CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,15CM | |
| Cable | CBL-PWEX-1098F-10 | 1 | [NR] 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF,FFC,10CM | |
| Rear Window | MCP-240-00091-0N | 1 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Parts | MCP-260-00135-0B | 1 | 1U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket | |
| Parts | MCP-260-00100-0B | 1 | 1U I/O Shield | |
| Air Shroud | MCP-310-50601-0B | 1 | Mylar air shroud for SC506 with A3SSV-24C-SPLN10F | |
| Manual | MNL-2278-QRG | 1 | 110A-16C/24C-RN10SP Quick Reference Guide | |
| Riser Card | RSC-RR1U-E8 | 1 | RSC-RR1U-E8 | |
| *Power Supply | PWS-301P-1R | 2 | 1U 300W Redundant Single Module for PWS-301R-1R | |
| *Power Distributor | PDB-PT506-N24 | 1 | 1U 300W Redundant Backplane and Housing for PWS-301R-1R, RoH | |
| *Fan | FAN-0065L4 | 3 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| *Front Panel | FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216, | |
| *Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 | |
| *Drive Tray(s) | MCP-220-00147-0B | 2 | Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design) | |
| *Fan Holder | MCP-320-81302-0B | 3 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) |
