- Supermicro X11SAE-F Motherboard ATX for up to Xeon E3-1200v5

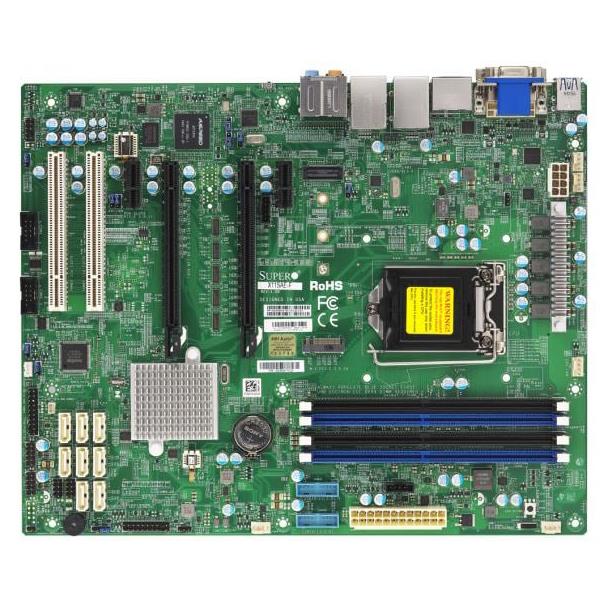

Supermicro X11SAE-F Motherboard ATX for up to Xeon E3-1200v5
Supporting Intel Xeon E3-1200 v5/v6 processors
Networking: 1x GbE LAN (shared with IPMI), 1x GbE LAN
Storage: 8 SATA3 drives (6Gbps) via C236, RAID 0, 1, 5, 10
Up to 64GB ECC/non-ECC UDIMM DDR4 2400MHz across 4 DIMM slots
Motherboard ATX Single Socket H4 (LGA 1151) for Intel Xeon E3-1200 v5, Intel 6th Gen Core i7/i5/i3 series - Supports up to 64GB DDR4 ECC UDIMM up to 2133MHz (4x 288-pin slots) - On-Board : SATA3 6Gbps via C236 controller (RAID), IPMI 2.0, 2x Gigabit LAN, VGA, 2x SuperDOM with built-in power - MBD-X11SAE-F-O (Retail Box)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
5. 2 PCIe 3.0 x16 (run at 16/NA or 8/8), 2 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
6. Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
7. 6 USB 3.0 (2 rear + 4 via header(s)) 6 USB 2.0 (2 rear + 4 via header(s)) 2 USB 3.1 (10Gbps, rear)
8. I/O: 1 VGA, 2 COM, TPM header
Extra Specifications for Supermicro X11SAE-F Motherboard ATX for up to Xeon E3-1200v5
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | Intel® C236 | |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller | |
| Single LAN with Intel® Ethernet Controller I210-AT, (Share with IPMI) | ||
| SATA | Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| System BIOS | ||
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 3.0 | ||
| UEFI 2.3.1 | ||
| BIOS Type | AMI UEFI | |
| Product SKUs | ||
| Product SKUs | MBD-X11SAE-F | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP | |
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series | ||
| Input / Output | ||
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) | |
| 6 USB 3.1 Gen1 port(s) (2 rear type A; 4 via header) | ||
| 2 USB 3.1 Gen2 port(s) (2 type A) | ||
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) | |
| Serial Port | 2 COM Port(s) (2 header) | |
| TPM | 1 TPM Header | |
| Expansion Slots | ||
| PCIe | 2 PCIe 3.0 x16, | |
| ***2 PCIe x16 slots are running at x16/NA or x8/x8 *** | ||
| 2 PCIe 3.0 x12 PCI | ||
| 2 - 5V PCI 32bit | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 1 PCIe 3.0 x4 | ||
| Form Factor: 2242/2260/2280 | ||
| Management | ||
| Software | SuperDoctor® 5, SPM , IPMI2.0 , Watchdog | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode | |
| PC Health Monitoring | ||
| Voltage | VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Temperature | CPU thermal trip support | |
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| I2C temperature sensing logic | ||
| FAN | Fan speed control | |
| Overheat LED indication | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| Other Features | WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology | |
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
