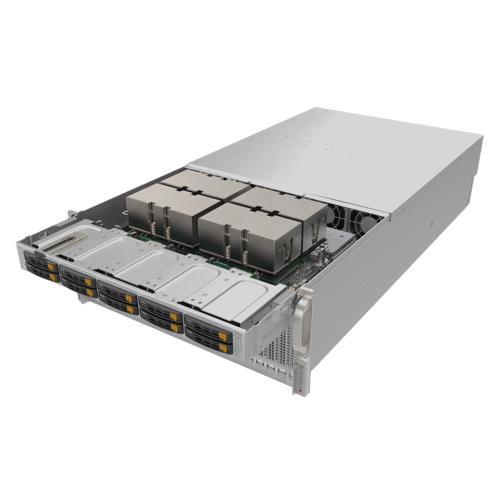

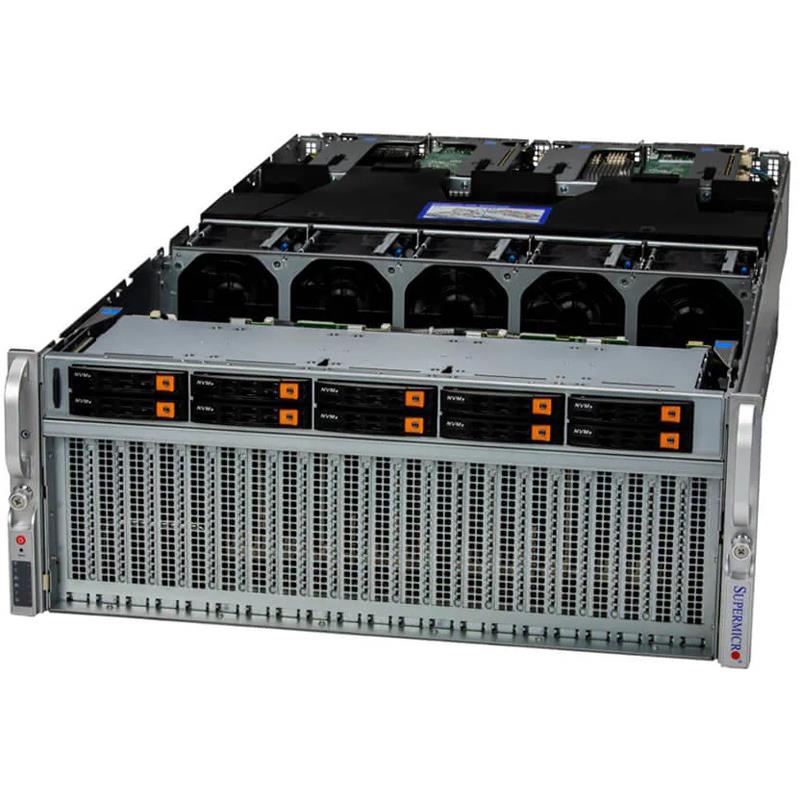

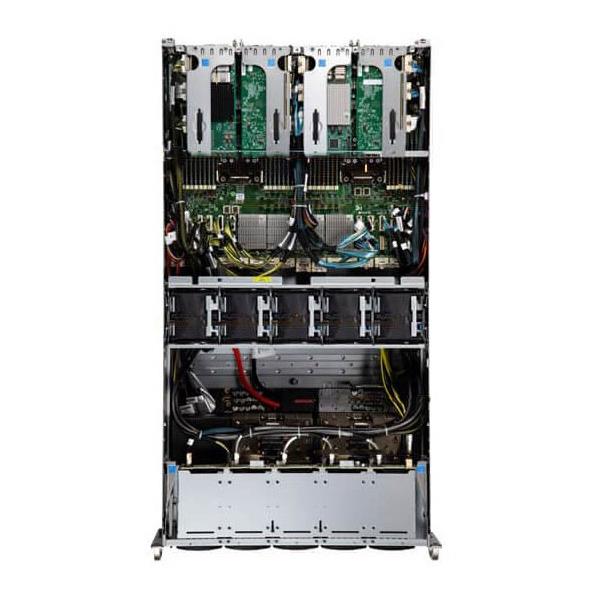

- Supermicro SYS-420GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Supermicro SYS-420GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• High Performance Computing
• AI/Deep Learning Training
Barebone 4U Rackmount SuperServer, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation Intel C621A, Up to 8TB in 32 DIMM slots, RDIMM/LRDIMM, On-Board : SATA3 (6Gbps), RAID 0/1/5/10 support, 10x 2.5in hot-swap NVMe/SATA Drive Bays (10x 2.5in NVMe hybrid), 1x M.2 (NVMe OR 1x M.2 SATA3), Dual LAN with 10Gbase-T, Support for IPMI Interface v.2.0, 3000W Power supply - (SYS-420GU-TNXR + X12DGU)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
4. Highest GPU communication using NVIDIA® NVLINK™ Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e) 4U system with NVIDIA® HGX™ A100 4-GPU 6 PCIe Gen 4.0 X16 LP Slots
5. Flexible networking options
6. Up to 10x 2.5" Hot-swap NVMe/SATA drive bays 1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
7. 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

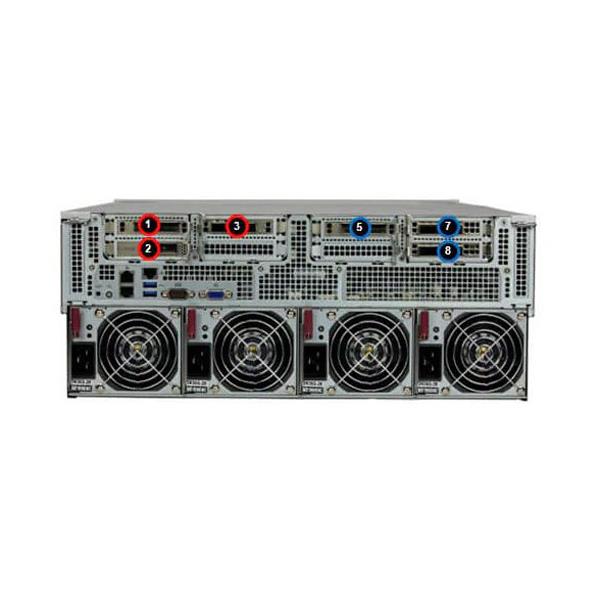

8. 4x 3000W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-420GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
Motherboard | ||

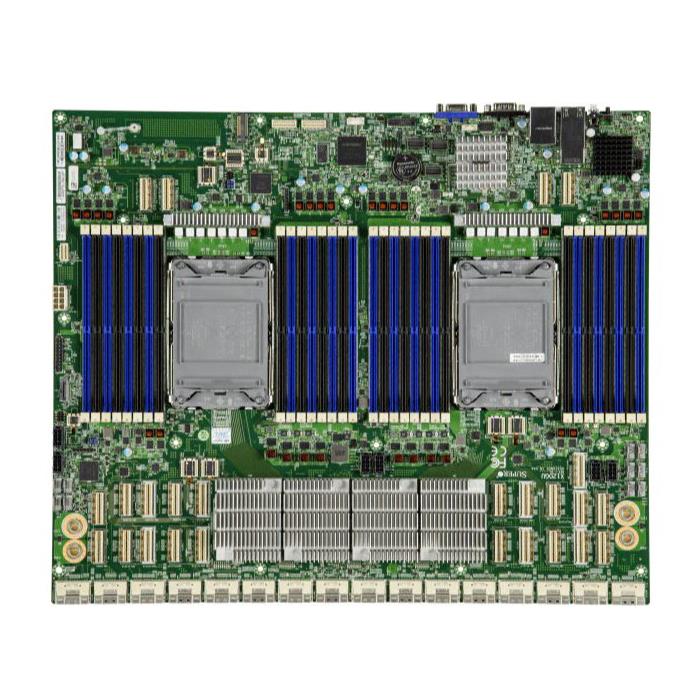

Motherboard | Super X12DGU | |
Processor | ||
CPU | 3rd Gen Intel® Xeon® Scalable processors | |
Support CPU TDP 270W | ||
Dual Socket P+ (LGA-4189) | ||
Cores | Up to 40C/80T; Up to 60MB Cache | |
GPU | ||
Supported GPU | HGX A100 4-GPU SXM4 Multi-GPU Board | |
CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
GPU-GPU Interconnect | NVIDIA® NVLink™ | |
System Memory | ||
Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
Memory Capacity: 32 DIMM slots | ||
Up to 8TB: 32x 256 GB DRAM | ||
Memory Voltage | 1.2 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C621A | |
Network Connectivity | 2x 10GbE BaseT with Intel® X710 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
OOB Management Package (SFT-OOB-LIC ) | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
7 +1 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 4U Rackmount | |
Model | CSE-458GTS-R3K06P | |
Dimensions and Weight | ||
Height | 7" (175.6mm) | |
Width | 17.67" (449mm) | |
Depth | 32.79" (833mm) | |
Package | 14.57" (H) x 27.55" (W) x 49.6" (D) | |
Weight | Net Weight: 105 lbs (48 kg) | |
Gross Weight: 140 lbs (64 kg) | ||
Available Color | Black Front & Silver Body | |

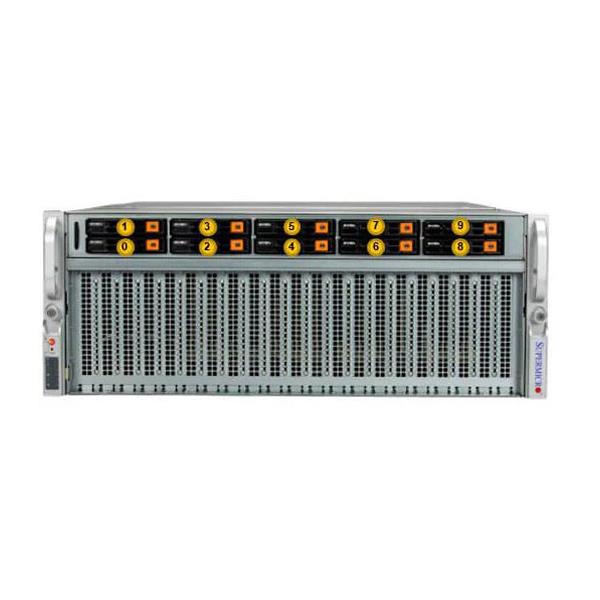

Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Network activity LEDs | |
Hard drive activity LED | ||
Power status LED | ||
System Overheat & Power Fail LED | ||
Drive Bays / Storage | ||
Hot-swap | 10x 2.5" hot-swap NVMe/SATA drive bays (10x 2.5" NVMe hybrid) | |
M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
System Cooling | ||
Fans | 5 removable heavy-duty Fan(s) | |
Power Supply | ||
Output Type | Backplanes (connector) | |
Certification | Titanium Level | |
AC Input | 3000W: | |
DC Output | 3000W | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Product SKUs | ||
Product SKUs | SYS-420GU-TNXR | |
Expansion Slots | ||
PCI-Express (PCIe) | 6 PCIe 4.0 x16 LP slot(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Redstone 40G GPU Kit | MCP-310-45805-0B | 1 | CSE-458G 3pcs mylar air block set for Redstone | |||
Redstone 40G GPU Kit | CBL-SAST-1290L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM | |||
Redstone 40G GPU Kit | CBL-SAST-1275L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM | |||
Redstone 40G GPU Kit | CBL-SAST-1255L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM | |||
Redstone 40G GPU Kit | CBL-SAST-1240L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM | |||
Redstone 40G GPU Kit | CBL-PWEX-1096-43 | $ 152.00 | 1 | Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43 | ||
Redstone 40G GPU Kit | AOM-PCIE4-SXM4-Q-P | 1 | PCIe Transition board for nVidia, Redstone, GPU module,RoHS | |||
Redstone 40G GPU Kit | SNK-P4009P | 4 | 3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module | |||
Redstone 40G GPU Kit | CBL-PWEX-1117-60 | 1 | MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin | |||
Redstone 40G GPU Kit | GPU-NVTHGX-A100-SXM4-4 | 1 | NVIDIA RedstoneGPU Baseboard,4 A100 40GB SXM4 (w/o HS) | |||
Redstone 40G GPU Kit | MCP-240-45808-0N | 1 | Sheet-metal tray for Redstone UBB assembly in SC458G chassis | |||
Redstone 80G GPU Kit | MCP-310-45805-0B | 1 | CSE-458G 3pcs mylar air block set for Redstone | |||
Redstone 80G GPU Kit | SNK-P4009P | 4 | 3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module | |||
Redstone 80G GPU Kit | CBL-PWEX-1117-60 | 1 | MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin | |||
Redstone 80G GPU Kit | GPU-NVTHGX-A100-SXM4-48 | 1 | NVIDIA RedstoneGPU Baseboard,4 A100 80GB SXM4 (w/o HS) | |||
Redstone 80G GPU Kit | MCP-240-45808-0N | 1 | Sheet-metal tray for Redstone UBB assembly in SC458G chassis | |||
Redstone 80G GPU Kit | AOM-PCIE4-SXM4-Q-P | 1 | PCIe Transition board for nVidia, Redstone, GPU module,RoHS | |||
Redstone 80G GPU Kit | CBL-PWEX-1096-43 | $ 152.00 | 1 | Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43 | ||
Redstone 80G GPU Kit | CBL-SAST-1240L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM | |||
Redstone 80G GPU Kit | CBL-SAST-1255L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM | |||
Redstone 80G GPU Kit | CBL-SAST-1275L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM | |||
Redstone 80G GPU Kit | CBL-SAST-1290L4F-85 | 2 | [NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM | |||
Software | SFT-DCMS-Single | 0 | DataCenter Management +A17:D53Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
