- Supermicro AS-2015CS-TNR CloudDC 2U Barebone Single AMD EPYC 9004 Series Processors 4th Generation
Supermicro AS-2015CS-TNR CloudDC 2U Barebone Single AMD EPYC 9004 Series Processors 4th Generation
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 2U Rackmount SuperServer, Supports Dual Socket SP5, Supporting AMD EPYC 9004 Series Processors 4th Generation (Up to 128C/256T). System on Chip, Up to 3TB in 12 DIMM slots, RDIMM, On-Board Controller : NVMe and SAS3 Requires Additional Parts, 12x 3.5in Hot-swap NVMe/SATA/SAS Drive Bays (12x 3.5in NVMe Hybrid; 12x 3.5in NVMe Dedicated), 2x NVMe (PCIe Gen 3x2, Boot Drive Only) M-Key, 2280/22110, Network Connectivity : Via Slim-AIOM, 1 Dedicated IPMI LAN port, 800W/860W Power Supply - (CSE-LA26TS-R1K23AWP1 + H13SSW) - AS -2015CS-TNR
This product is sold only as a completely assembled system.
1. Single AMD EPYC™ 9004/9005* Series Processor (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Support up to DDR5 12 DIMM slots (1DPC)
3. 2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL + 2 PCIe 5.0 x8 FHFL(Optional)
4. Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN

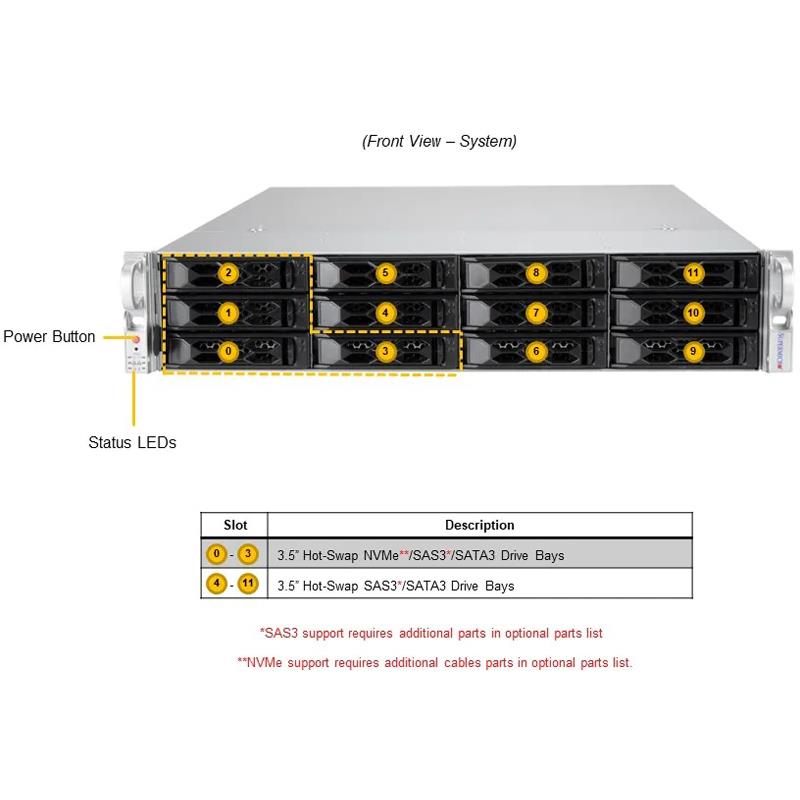

5. 12 Hot-swap 3.5"/2.5" SATA drive bays Optional 4 Hot-swap NVMe or 12 SAS drives support via additional parts 2 M.2 PCIe 3.0 x2 NVMe slots
6. Dual Titanium Level 1200W redundant power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2015CS-TNR CloudDC 2U Barebone Single AMD EPYC 9004 Series Processors 4th Generation
| System Memory | ||
| Memory Voltage | 1.1 V | |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) | |
| Memory | Memory Capacity: 12 DIMM slots | |
| Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory | ||
| Note | For optimal performance AMD recommends full memory population | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via Slim-AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| ACPI 6.4 | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMIView for Linux/ Windows | ||
| IPMICFG | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| PC Health Monitoring | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Front Panel | ||
| Buttons | Power On/Off | |
| Universal Information (UID) | ||
| LEDs | Power status | |
| Network activity | ||
| Drive activity | ||
| Universal Information (UID) | ||
| Power Supply | ||
| Certification | Titanium Level | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz | |
| 1200W: 200-240Vac / 8.5A-7A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Product SKUs | ||
| Product SKUs | AS -2015CS-TNR | |
| Motherboard | ||
| Motherboard | Super H13SSW | |
| Processor | ||
| CPU | Single Socket SP5 | |
| 4th Generation AMD EPYC™ 9004 Series Processor | ||
| Support CPU TDP up to 360W * | ||
| Cores | Up to 96C/192T | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-LA26TS-R1K23AWP1 | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (648mm) | |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) | |
| Weight | Gross Weight: 59 lbs (26.76 kg) | |
| Net Weight: 33 lbs (15 kg) | ||
| Available Color | Black front & sliver body | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) | |
| 2 PCIe 5.0 x16 FHFL slot(s) | ||
| 2 PCIe 5.0 x16 AIOM Slot slot(s) | ||
| Drive Bays / Storage | ||

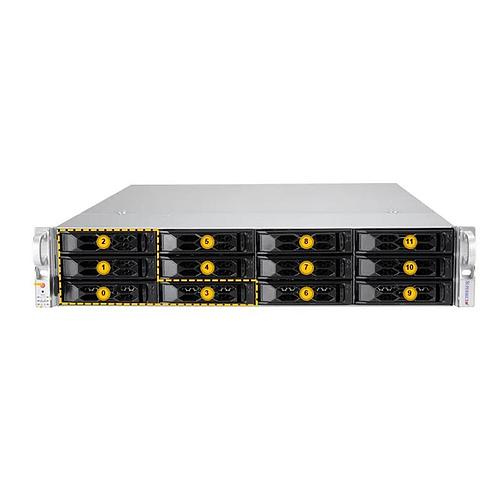

| Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (12 SATA by default) | |
| M.2 | M-Key, 2280/22110 | |
| 2x NVMe (PCIe Gen 3x2, Boot drive only) | ||
| System Cooling | ||
| Fans | 3x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Note | Operating Temperature based on configurations | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 12 NVMe Optional Cables | CBL-MCIO-1232M5 | $ 60.00 | 5 | MCIO x8 (STR to STR),32cm,85OHM | ||
| 12 NVMe Optional Cables | CBL-MCIO-1339M5R | $ 55.50 | 1 | MCIO x8 (STR to RA),39CM,32AWG | ||
| 3908/3916 CacheVault | BTR-CVPM05 | $ 207.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a SuperCap mount) | ||
| 3908/3916 SuperCap Mount | MCP-240-21747-0N | 1 | SuperCap mounting card for AIOM location | |||
| 3908/3916 SuperCap Mount | MCP-240-00127-0N | $ 20.50 | 1 | SuperCap mounting tray for 2.5" drive location | ||
| 3908/3916 SuperCap Mount | MCP-240-00203-0N | $ 26.50 | 1 | SuperCap mounting bracket for PCIe location | ||
| 4 NVMe Optional Cables (Slot 0~3) | CBL-MCIO-1232M5 | $ 60.00 | 2 | MCIO x8 (STR to STR),32cm,85OHM | ||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 1 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Cable Management Arm | MCP-120-82601-0N | $ 31.00 | 1 | Cable arm adapter for SCLA26-AW | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| M.2 by AOC | AOC-SLG4-2H8M2 | $ 224.00 | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP | ||
| Optional PCIe 5.0 x8 (PCIe slot 2 & 4)(For 12 SATA Configuration Only) | CBL-MCIO-1339M5R | $ 55.50 | 2 | MCIO x8 (STR to RA),39CM,32AWG | ||
| Rail Set | MCP-290-00053-0N (included in the system ) | 1 Set | Rail set, quick/quick, default for 2,3U 17.2"W | |||
| Rear Window NVMe Drive Kit | MCP-220-82623-0N | $ 176.00 | 1 | Dual 2.5 NVMe5 Drive Kit for 216B/826B/218H2,RoHS | ||
| Rear Window NVMe Drive Kit | CBL-MCIO-1255M5 | $ 108.00 | 1 | MCIO x8 (STR to STR),55CM,30AWG,RoHS | ||
| Rear Window NVMe Drive Kit | CBL-PWEX-1123-30 | $ 22.50 | 1 | McHi,2x2F,P3.0 to 1x4M,P5.08,30cm,9A/p,16AWG,RoHS | ||
| Rear Window NVMe Drive Kit | CBL-MCIO-1339M5R | $ 55.50 | 1 | MCIO x8 (STR to RA),39CM,32AWG,RoHS | ||
| Rear Window SATA Drive Kit | MCP-220-82616-0N | $ 89.00 | 1 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | ||
| Rear Window SATA Drive Kit | CBL-MCIO-1270OT4S2-85 | $ 38.00 | 1 | MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3816L-L16iT OR AOC-S3916L-H16iR(-32DD)1x CBL-SAST-1276F-1001x CBL-SAST-1265F-100 | 0 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMSlimline x8 (STR) to Slimline x4 (STR),64CM | |||
| Storage Control Card and Cable(s) | AOC-S3808L-L8iT ORAOC-S3908L-H8iR(-16DD/-32DD) 1x CBL-SAST-1276F-100 | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM | |||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
