- Supermicro AS-1015CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors

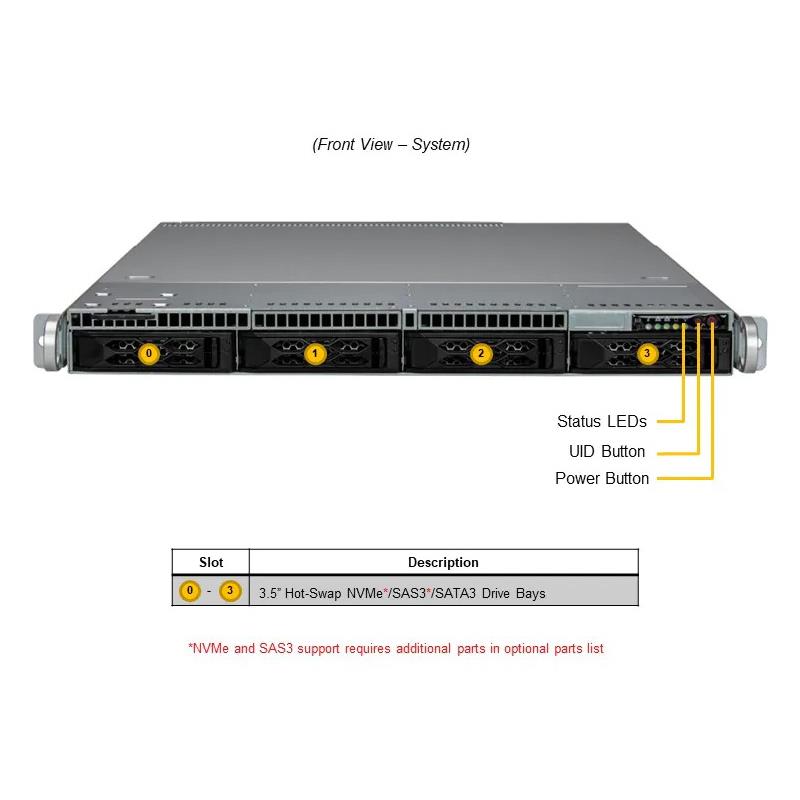

Supermicro AS-1015CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 1U Rackmount SuperServer, Support Single Socket SP5, Supporting AMD EPYC 9004/9005 Series Processors. System on Chip, Up to 3TB in 12 DIMM slots, RDIMM, On-Board Controller: NVMe and SAS3 Requires Additional Parts, 4x 3.5in Hot-swap NVMe/SATA/SAS Drive Bays (4x 3.5in NVMe Hybrid, 4x 3.5in NVMe Dedicated), 2x NVMe (PCIe Gen 3x2, Boot Drive Only) M-Key, 2280/22110, Network Connectivity: Via Slim-AIOM, 1 Dedicated IPMI LAN Port, 800W/860W Power Supply - (CSE-LA15TS-R860AWP2 + H13SSW) - AS -1015CS-TNR
1. Single AMD EPYC™ 9004/9005* Series Processor (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
3. 2 PCIe 5.0 x16 FHHL
4. Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
5. 4 Hot-swap 3.5"/2.5" SATA drive bays Optional 4 Hot-swap NVMe/SAS drives support via additional parts 2 M.2 PCIe 3.0 x2 NVMe slots
6. Dual 860W Redundant Platinum Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1015CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors
| System Memory | ||
| Memory Voltage | 1.1 V | |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) | |
| Memory | Memory Capacity: 12 DIMM slots | |
| Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory | ||
| Note | For optimal performance AMD recommends full memory population | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via Slim-AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| ACPI 6.4 | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMIView for Linux/ Windows | ||
| IPMICFG | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| PC Health Monitoring | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Front Panel | ||
| Buttons | Power On/Off | |
| Reset button | ||
| Universal Information (UID) | ||
| LEDs | Power status | |
| Network activity | ||
| Drive activity | ||
| Universal Information (UID) | ||
| Power Supply | ||
| Certification | Platinum Level | |
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
| 860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
| Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Product SKUs | ||
| Product SKUs | AS -1015CS-TNR | |
| Motherboard | ||
| Motherboard | Super H13SSW | |
| Processor | ||
| CPU | Single Socket SP5 | |
| 4th Generation AMD EPYC™ 9004 Series Processor | ||
| Support CPU TDP up to 360W * | ||
| Cores | Up to 96C/192T | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-LA15TS-R860AWP2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 7.8" (H) x 23.8" (W) x 34.6" (D) | |
| Weight | Net Weight: 25 lbs (11.3 kg) | |
| Gross Weight: 46 lbs (20.9 kg) | ||
| Available Color | Black front & sliver body | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) | |
| 2 PCIe 5.0 x16 AIOM slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (4 SATA by default) | |
| M.2 | M-Key, 2280/22110 | |
| 2x NVMe (PCIe Gen 3x2, Boot drive only) | ||
| Peripheral Bays | 2x 2.5" drive bays (optional) | |
| System Cooling | ||
| Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Note | Operating Temperature based on configurations | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3908/3916 CacheVault | BTR-CVPM05 | $ 266.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a SuperCap mount) | ||
| 3908/3916 SuperCap Mount | MCP-240-21747-0N | $ 113.00 | 1 | SuperCap mounting card for AIOM location | ||
| 3908/3916 SuperCap Mount | MCP-240-00127-0N | $ 20.50 | 1 | SuperCap mounting tray for 2.5" drive location | ||
| 3908/3916 SuperCap Mount | MCP-240-00203-0N | $ 26.50 | 1 | SuperCap mounting bracket for PCIe location | ||
| 4 NVMe Optional Cables | CBL-MCIO-1235M5Y | $ 71.00 | 1 | MCIO(x8 to 2 x4) STR,35CM,30AWG | ||
| 4 NVMe Optional Cables | CBL-MCIO-1225M5Y | $ 66.00 | 1 | MCIO (x8 to 2 x4) STR,25CM,85OHM | ||
| Cable Management Arm | MCP-290-00152-0N | $ 153.50 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
| Fixed 2.5" Drive Kit | MCP-220-81511-0N | $ 26.50 | 2 | FDD-size tray support for 1x 2.5" 7mm drive | ||
| Fixed 2.5" Drive Kit | CBL-0234L | $ 18.50 | 1 | Y CABLE FOR 4-PIN HDD | ||
| Fixed 2.5" Drive Kit | CBL-0211L | $ 20.50 | 1 | 4PIN-TO-3X SATA POWER CABLE | ||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Heatsink | SNK-P0082V | $ 100.50 | 1 | 1U Passive CPU VC Heat Sink for AMD Socket SP5 Processors | ||
| M.2 by AOC | AOC-SLG4-2H8M2 | $ 226.00 | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP | ||
| Rail Set | MCP-290-00016-0N (included in the system ) | 1 | 1U open rack bracket set | |||
| Rail Set | MCP-290-00054-0N (included in the system ) | 1 set | Rail set, quick/quick, optional for 1U 17.2"W | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3808L-L8iT OR | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR(-16DD/-32DD) | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD | |||
| Storage Control Card and Cable(s) | CBL-SAST-1275A-100 | $ 34.50 | 1 | Slimline x8 (STR) to 4x SATA | ||
| TPM security module | AOM-TPM-9670V | $ 57.00 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
