- Supermicro AS-1115CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors 4th/5th Generation
Supermicro AS-1115CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors 4th/5th Generation
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 1U Rackmount SuperServer, Supports Single Socket SP5, Supporting AMD EPYC 9004/9005 Series Processors. System on Chip, Up to 4.5TB in 12 DIMM slots, RDIMM, On-Board Controller: NVMe and SAS3 Requires Additional Parts, 10x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays (10x 2.5in SATA by Default), 2x NVMe (PCIe Gen 3x2, Boot Drive Only) M-Key, 2280/22110, Network Connectivity: Via Slim-AIOM, 1 Dedicated IPMI LAN Port, 800W/860W Power Supply - (CSE-LB16TS-R860AWP-A + H13SSW) - AS -1115CS-TNR
1. Single AMD EPYC™ 9004/9005* Series Processor (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Support up to DDR5 12 DIMM slots (1DPC)
3. 2 PCIe 5.0 x16 FHHL
4. Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
5. 10 Hot-swap 2.5" SATA drive bays Optional 10 Hot-swap NVMe/SAS drives support via additional parts 2 M.2 PCIe 3.0 x2 NVMe slots
Extra Specifications for Supermicro AS-1115CS-TNR CloudDC 1U Barebone Single AMD EPYC 9004/9005 Series Processors 4th/5th Generation
System Memory | ||
Memory Voltage | 1.1 V | |
Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) | |
Memory | Memory Capacity: 12 DIMM slots | |
Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz | ||
Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory | ||
Note | For optimal performance AMD recommends full memory population | |
On-Board Devices | ||
Chipset | System on Chip | |
Network Connectivity | Via Slim-AIOM | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
LAN | 1 Dedicated IPMI LAN port | |
USB | 2 USB 3.0 port(s) (2 rear) | |
2 USB 2.0 port(s) (2 front) | ||
Video | 1 VGA port(s) | |
Serial Port | 1 COM Port(s) (1 rear) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI FLASH ROM | |
BIOS Features | USB Keyboard support | |
Plug and Play (PnP) | ||
ACPI 6.4 | ||
SMBIOS 3.5 or later | ||
UEFI 2.8 | ||
Management | ||
Software | Watch Dog | |
SuperDoctor® 5 | ||
SUM | ||
SSM | ||
SPM | ||
IPMIView for Linux/ Windows | ||
IPMICFG | ||
Power Configurations | ACPI Power Management | |
Power-on mode control for AC power loss recovery | ||
PC Health Monitoring | ||
Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||

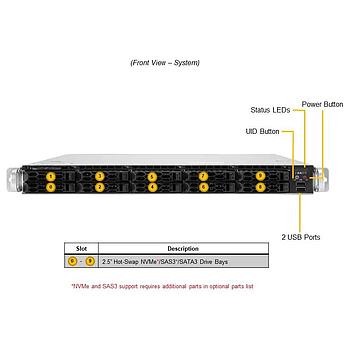

Front Panel | ||
Buttons | Power On/Off | |
Universal Information (UID) | ||
LEDs | Power status | |
Network activity | ||
Drive activity | ||
Universal Information (UID) | ||
Power Supply | ||
Certification | Platinum Level | |
Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
+12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
5V SB | Max: 4A / Min: 0A | |
Output Type | Backplanes (gold finger) | |
Product SKUs | ||
Product SKUs | AS -1115CS-TNR | |
Motherboard | ||
Motherboard | Super H13SSW | |
Processor | ||
CPU | Single Socket SP5 | |
4th Generation AMD EPYC™ 9004 Series Processor | ||
Support CPU TDP up to 360W * | ||
Cores | Up to 96C/192T | |
Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-LB16TS-R860AWP-A | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 23.5" (597mm) | |
Package | 7.8" (H) x 23.8" (W) x 32.4" (D) | |
Weight | Net Weight: 25 lbs (11.3 kg) | |
Gross Weight: 46 lbs (20.9 kg) | ||
Available Color | Black front & sliver body | |
Expansion Slots | ||
PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) | |
2 PCIe 5.0 x16 AIOM slot(s) | ||
Drive Bays / Storage | ||
Hot-swap | 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (10x 2.5" SATA by default) | |
M.2 | M-Key, 2280/22110 | |
2x NVMe (PCIe Gen 3x2, Boot drive only) | ||
System Cooling | ||
Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
Air Shroud | 1 Air Shroud(s) | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Note | Operating Temperature based on configurations |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
10 NVMe Optional Cables | CBL-MCIO-1218M5RE-J | $ 65.50 | 4 | MCIO x8 (STR to RE), 18cm,G5,32AWG | ||
10 NVMe Optional Cables | CBL-MCIO-1228M5RE | $ 9.00 | 1 | MCIO x8 (STR to RE), 28cm, 30#, Gen5, 85Ohm | ||
3908/3916 CacheVault | BTR-CVPM05 | $ 207.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a SuperCap mount) | ||
3908/3916 SuperCap Mount | MCP-240-21747-0N | 1 | SuperCap mounting card for AIOM location | |||
3908/3916 SuperCap Mount | MCP-240-00127-0N | $ 20.50 | 1 | SuperCap mounting tray for 2.5" drive location | ||
3908/3916 SuperCap Mount | MCP-240-00203-0N | $ 26.50 | 1 | SuperCap mounting bracket for PCIe location | ||
Cable Management Arm | MCP-290-00152-0N | $ 152.00 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
M.2 by AOC | AOC-SLG4-2H8M2 | $ 224.00 | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP | ||
Rail Set | MCP-290-00016-0N (included in the system ) | 1 | 1U open rack bracket set | |||
Rail Set | MCP-290-00063-0N (included in the system ) | 1 Set | Rail set, quick/quick, default for 1U 17.2"W | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
Storage Control Card and Cable(s) | AOC-S3808L-L8iT OR | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD | |||
Storage Control Card and Cable(s) | AOC-S3908L-H8iR(-16DD/-32DD) | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD | |||
Storage Control Card and Cable(s) | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM | ||
Storage Control Card and Cable(s) | OR | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3816L-L16iT OR | 1 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD | |||
Storage Control Card and Cable(s) | AOC-S3916L-H16iR | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD | |||
Storage Control Card and Cable(s) | CBL-SAST-1265F-100 | $ 34.00 | 1 | Slimline x8 (STR) to Slimline x4 (STR),64CM | ||
TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | 1 year of overnight replacement |
