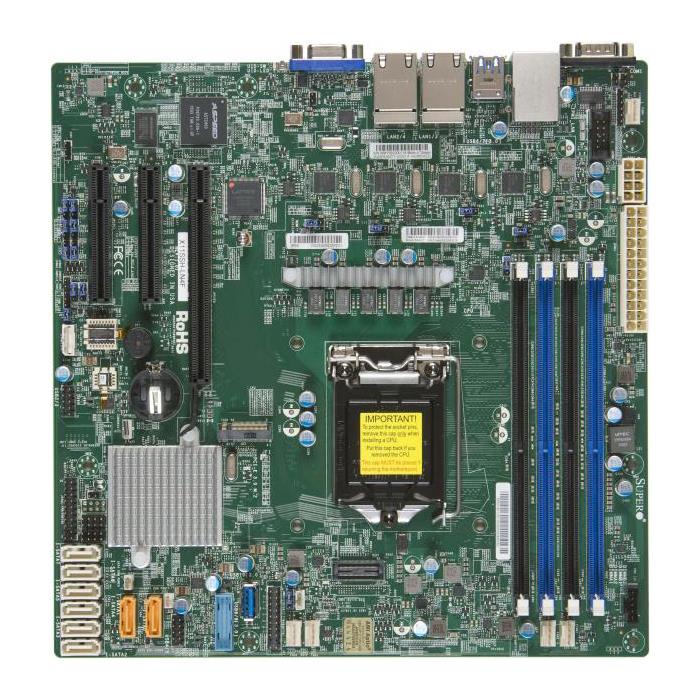

Supermicro X11SSH-LN4F Motherboard mATX f/ up to Xeon E3-1200v5
Quad GbE LAN via Intel i210-AT
Supports Intel VHD with selected CPU
8 SATA3 drives (6Gbps) via C236, RAID 0, 1, 5, 10
Up to 64GB ECC UDIMM DDR4 2400MHz across 4 DIMM slots
Motherboard micro-ATX Socket H4 (LGA 1151) for Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i3 series, Intel Celeron, Intel Pentium processors - Supports up to 64GB DDR4 ECC UDIMM up to 2133MHz (4x 288-pin slots) - On-Board : SATA3 6Gbps via C236 controller (RAID), IPMI 2.0, 4x Gigabit LAN, VGA - MBD-X11SSH-LN4F-O (Retail Box)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Support Intel® VHD with selected CPU
4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
5. Expansion slots: 1 PCIe 3.0 x8 (in x16), 1 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8)
6. M.2 NGFF connector M.2 Interface: PCIe 3.0 x2 Form Factor: 2280 Key: M-Key
7. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
8. Quad GbE LAN with Intel® i210-AT
9. I/O: 1 VGA, 2 COM, TPM header
10. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
Extra Specifications for Supermicro X11SSH-LN4F Motherboard mATX f/ up to Xeon E3-1200v5
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 4 DIMM slots | |
| 64GB Unbuffered ECC UDIMM, DDR4-2400MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | Intel® C236 | |
| IPMI | ASPEED AST2400 BMC | |
| Network Controllers | Quad LAN with Intel® Ethernet Controller I210-AT | |
| SATA | Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Software | SuperDoctor® 5, NMI, SUM , SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| Hardware BIOS Virus protection | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| BIOS Type | 128MB SPI Flash EEPROM with AMI BIOS | |
| Product SKUs | ||
| Product SKUs | MBD-X11SSH-LN4F | |
| Physical Stats | ||
| Form Factor | Micro-ATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5 | |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP | ||
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series | |
| Input / Output | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 3 USB 3 port(s) (1 Type A; 2 via header) | ||
| 6 USB 2.0 port(s) (4 via header; 2 rear) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| TPM | 1 TPM Header | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8, | |
| 1 PCIe 3.0 x4 (in x8 slot) | ||
| 1 PCIe 3.0 x8 (in x16 slot), | ||
| M.2 | Form Factor: 2280 | |
| Key: M-Key | ||
| M.2 Interface: PCIe 3.0 x2 | ||
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| FAN | Fan speed control | |
| Thermal control tachometer fan connectors | ||
| Overheat LED indication | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| Other Features | WOL | |
| M.2 NGFF connector | ||
| CPU thermal trip support for processor protection | ||
| Control of power-on for recovery from AC power loss | ||
| VHD | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
