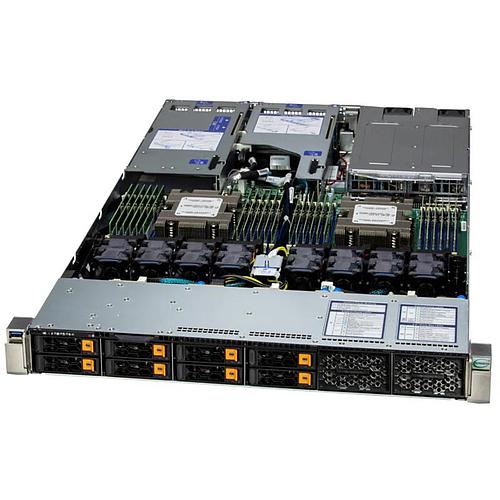

Supermicro AS-1125HS-TNR Hyper 1U Barebone Dual AMD EPYC 9004 Series Processors 4th Generation

Supermicro AS-1125HS-TNR Hyper 1U Barebone Dual 4th Generation AMD EPYC 9004 Processors

Supermicro AS-1125HS-TNR Hyper 1U Barebone Dual AMD EPYC 9004 Series Processors 4th Generation

• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server

Barebone 1U Rackmount SuperServer, Supports Dual Socket SP5, Supporting AMD EPYC 9004 Series Processors 4th Generation. System on Chip, Up to 6TB in 24 DIMM slots, RDIMM, On-Board Controller: Optional, 8x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays (Up to 12x 2.5in hot-swap NVMe/SATA/SAS Support with Additional Parts), 2x NVMe (PCIe 3.0 x4, Boot Drive Only) M-Key, 2280/22110, Network Connectivity : Via AIOM, 1 Dedicated IPMI LAN port, 800W/1200W Power Supply - (CSE-HS119-R1K24P2-A + H13DSH) - AS -1125HS-TNR

1. Dual AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
2. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
3. 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 FHHL slot Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
4. 8 Hot-swap 2.5" NVMe/SATA/SAS drive bays Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive support via additional parts 2 M.2 PCIe 3.0 NVMe slots
5. Dual 1200W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)

Extra Specifications for Supermicro AS-1125HS-TNR Hyper 1U Barebone Dual AMD EPYC 9004 Series Processors 4th Generation

System Memory
Memory Voltage	1.1 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
Memory	Memory Capacity: 24 DIMM slots
	Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
	Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory
Note	For optimal performance AMD recommends full memory population
On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 Dedicated IPMI LAN port
USB	3 USB 3.0 port(s) (1 front; 2 rear)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 256MB SPI Flash
BIOS Features	USB Keyboard support
	Plug and Play (PnP)
	ACPI 6.4
	SMBIOS 3.5 or later
	UEFI 2.8
Management
Software	Watch Dog
	SuperDoctor® 5
	SUM
	SSM
	SPM
	IPMIView for Linux/ Windows
	IPMICFG
Power Configurations	ACPI Power Management
	Power-on mode control for AC power loss recovery
PC Health Monitoring
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring

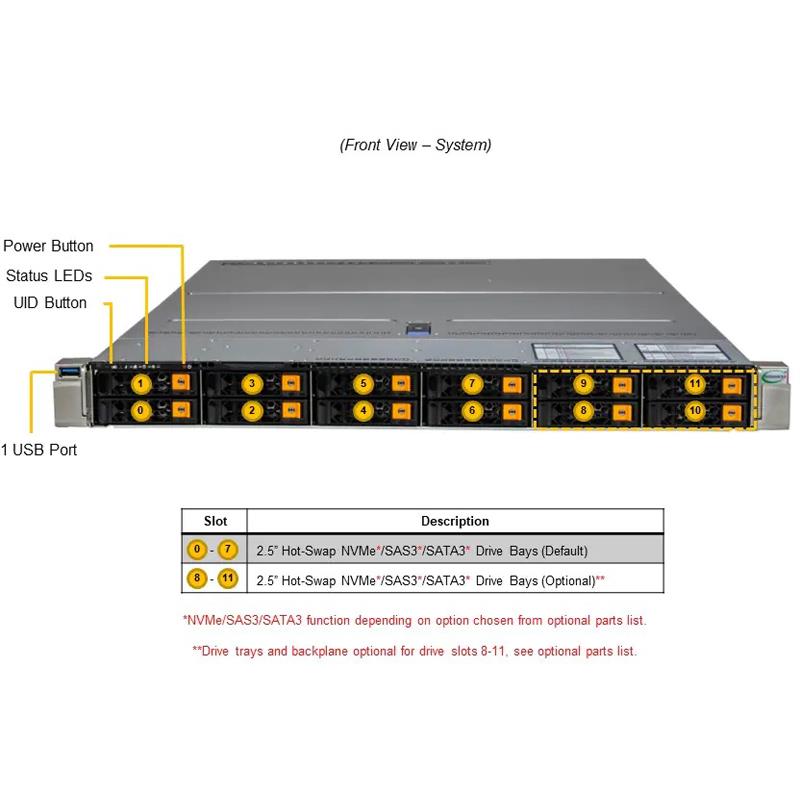

Front Panel
Buttons	UID button
	Power On/Off
LEDs	HDD activity
	Power status
	LAN1 activity
	System information
Power Supply
Certification	Titanium Level
Dimension (W x H x L)	73.5 x 40 x 265 mm
AC Input	800W: 100-127Vac / 9.8A-7A / 50-60Hz
	1200W: 200-240Vac / 7.5A-6A / 50-60Hz
+12V	Max: 83A / Min: 0A (100Vac-127Vac)
	Max: 100A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Product SKUs
Product SKUs	AS -1125HS-TNR
Motherboard
Motherboard	Super H13DSH
Processor
CPU	4th Generation AMD EPYC™ 9004 Series Processor
	Support CPU TDP up to 360W *
	Dual Socket SP5
Cores	Up to 192C/384T
Note	*Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Chassis
Form Factor	1U
Model	CSE-HS119-R1K24P2-A
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	29.4" (747mm)
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Weight	Net Weight: 32 lbs (14.5 kg)
	Gross Weight: 51 lbs (23.1 kg)
Available Color	Black front & sliver body
Expansion Slots
PCI-Express (PCIe)	1 PCIe 5.0 x16 FH, 6.6"L slot(s)
	2 PCIe 5.0 x16 FH, 10.5"L slot(s)
Drive Bays / Storage
Hot-swap	8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Up to 12x 2.5" hot-swap NVMe/SATA/SAS support with additional parts)
M.2	M-Key, 2280/22110
	2x NVMe (PCIe 3.0 x4, Boot drive only)
System Cooling
Fans	8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shroud(s)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Note	Operating Temperature based on configurations

Name	Part Number	Price	Add to Cart	Qty.	Description
8 NVMe	CBL-KIT-1125HS-TNR-8N			1	8 NVME cable kit
8 NVME + 4 SAS	AOC-S3808L-L8iT OR AOC-S3908L-H8iR			1	8 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp
8 NVME + 4 SAS	CBL-KIT-1125HS-TNR-8N			1	8 NVME cable kit
	8 NVME + 4 SAS	BPN-NVME5-HS119N-S4R	$ 106.00		1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5
	8 NVME + 4 SAS	MCP-220-00178-0B	$ 24.50		4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
	8 NVME + 4 SAS	CBL-PWEX-1136-40	$ 25.00		1	MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
	8 NVME + 4 SAS	CBL-SAST-1262LP-100	$ 38.00		1	Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100Ohm
	8 NVME + 4 SAS	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
	8 NVME + 4NVME	CBL-PWEX-1136-40	$ 25.00		1	MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
	8 NVME + 4NVME	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
	8 NVME + 4NVME	MCP-220-00178-0B	$ 24.50		4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
	8 NVME + 4NVME	BPN-NVME5-HS119N-S4R	$ 106.00		1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5
	8 NVME + 4NVME	CBL-MCIO-1343M5FRF	$ 0.00		1	MCIO x8 (FR to STR), FFC,43cm,30AWG
	8 NVME + 4NVME	CBL-MCIO-1352M5FRF	$ 0.00		1	MCIO x8 (FR to STR), FFC,52cm,30AWG
8 NVME + 4NVME	CBL-KIT-1125HS-TNR-8N			1	8 NVME cable kit
8 NVME+ 4 SATA	CBL-KIT-1125HS-TNR-8N			1	8 NVME cable kit
8 NVME+ 4 SATA	CBL-MCIO-1255L4Y •			1	MCIO x8 to 2 SlimSAS LP x4,STR,55cm
	8 NVME+ 4 SATA	CBL-PWEX-1136-40	$ 25.00		1	MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
	8 NVME+ 4 SATA	MCP-220-00178-0B	$ 24.50		4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
	8 NVME+ 4 SATA	BPN-NVME5-HS119N-S4R	$ 106.00		1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5
	8 NVME+ 4 SATA	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 SAS	AOC-S3808L-L8iT OR AOC-S3908L-H8iR			1	8 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp
	8 SAS	CBL-SAST-1273LP-100	$ 55.50		1	Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm
	8 SAS + 4 SAS	BPN-NVME5-HS119N-S4R	$ 106.00		1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5
	8 SAS + 4 SAS	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
	8 SAS + 4 SAS	CBL-PWEX-1136-40	$ 25.00		1	MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
	8 SAS + 4 SAS	MCP-220-00178-0B	$ 24.50		4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
	8 SAS + 4 SAS	CBL-SAST-1262LP-100	$ 38.00		1	Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100Ohm
	8 SAS + 4 SAS	CBL-SAST-1273LP-100	$ 55.50		1	Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm
8 SAS + 4 SAS	AOC-S3816L-L16iT OR AOC-S3916L-H16iR			1	16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key
	8 SATA	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 SATA	CBL-MCIO-1255L4Y •			1	MCIO x8 to 2 SlimSAS LP x4,STR,55cm
	8 SATA + 4 SATA	CBL-PWEX-1136-40	$ 25.00		1	MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
	8 SATA + 4 SATA	MCP-220-00178-0B	$ 24.50		4	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
	8 SATA + 4 SATA	BPN-NVME5-HS119N-S4R	$ 106.00		1	1U 4-slot backplane, 4x SAS3/SATA3/NVME5
	8 SATA + 4 SATA	CBL-CDAT-1062Y-45	$ 21.50		1	Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 SATA + 4 SATA	CBL-MCIO-1255L4Y •			2	MCIO x8 to 2 SlimSAS LP x4,STR,55cm
	Cable Management Arm	MCP-290-11901-0N	$ 115.00		1	41" ball-bearing rail set for Hyper servers
Cable Management Arm	MCP-290-00168-0N ( *Requires MCP-290-11901-0N *)			1	Cable Management Arm, 1U height, 7.5" deep cable arm *Requires MCP-290-11901-0N *
Chassis Rear Handle Kit	MCP-290-11905-0N			1	Hyper 1U rear handle kit for immersion cooling
	Drive Bay Dummy Cover	MCP-220-11902-0B	$ 24.00		0	Dummy cover for two 2.5" drive bays (top & bottom drive bays)
	Rail Set	MCP-290-21103-0N	$ 110.00		1	21.65" ball-bearing rail set for Hyper servers
Rail Set	MCP-290-11903-0N (included in the system )			1	30.5" ball-bearing rail set for Hyper servers
Rail Set	MCP-290-11902-0N			1	35.25" ball-bearing rail set for Hyper servers
	Rail Set	MCP-290-11901-0N	$ 115.00		1	41" ball-bearing rail set for Hyper servers
	Serial Port DTK Cable with PCIe Bracket	CBL-0010L	$ 18.50		1	9-Pin 26CM Serial Port DTK Cable with PCIe Bracket
	TPM security module	AOM-TPM-9670H-FIPS	$ 63.50		1	AOM-TPM-9670H-FIPS supporting FIPS 140-2
	TPM security module	AOM-TPM-9672V-FIPS	$ 78.00		1	AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
	TPM security module	AOM-TPM-9672V	$ 72.00		1	SPI capable vertical TPM 2.0
	TPM security module	AOM-TPM-9670V	$ 56.50		1	SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	1 year of overnight replacement
