Supermicro AS-2025HS-TNR Hyper 2U Barebone Dual AMD EPYC 9004/9005 Series Processors 4th/5th Generation
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 2U Rackmount SuperServer, Supports Dual Socket SP5, Supporting AMD EPYC 9004/9005 Series Processors 4th/5th Generation. System on Chip, Up to 6TB in 24 DIMM slots, RDIMM, On-Board Controller: NVMe/SAS3/SATA3 Optional, 12x 3.5in Hot-swap NVMe/SATA/SAS Drive Bays, 2x NVMe (PCIe 3.0 x4, Boot Drive Only) M-Key, 2280/22110, Network Connectivity: Via AIOM, 1 Dedicated IPMI LAN port, 1600W Power Supply - (CSE-HS829-R1K63P-A + H13DSH) - AS -2025HS-TNR
To maintain quality and integrity, this product is sold only as a completely-assembled system (with 2 CPUs, Min. of 4 DIMMs, 1 AIOM/AOC NIC and 1 Storage Device)
1. 4th Generation AMD EPYC™ 9004 Series Processors
2. ASPEED AST2600
3. 24x DIMM slots, DDR5-4800MHz memory, support up to 6 TB
4. 1 AIOM/OCP NIC 3.0 Slot Configuration Options for up to; 4 PCIe 5.0 x16 Slots OR; 8 PCIe 5.0 x8 Slots or; 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or; 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or; 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
5. 1600W Redundant Power Supplies (Titanium Level) Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level);(*Full redundancy based on configuration and application load)
6. 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
Extra Specifications for Supermicro AS-2025HS-TNR Hyper 2U Barebone Dual AMD EPYC 9004/9005 Series Processors 4th/5th Generation
| System Memory | ||
| Memory Voltage | 1.1 V | |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) | |
| Memory | Memory Capacity: 24 DIMM slots | |
| Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory | ||
| Note | For optimal performance AMD recommends full memory population | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| ACPI 6.4 | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMIView for Linux/ Windows | ||
| IPMICFG | ||
| Power Configurations | ACPI Power Management | |
| Power-on mode control for AC power loss recovery | ||
| PC Health Monitoring | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| Power Supply | ||
| Certification | Titanium Level | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz | |
| 1600W: 200-240Vac / 9A-7.5A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 133.3A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Product SKUs | ||
| Product SKUs | AS -2025HS-TNR | |
| Motherboard | ||
| Motherboard | Super H13DSH | |
| Processor | ||
| CPU | 4th Generation AMD EPYC™ 9004 Series Processor | |
| Support CPU TDP up to 360W * | ||
| Dual Socket SP5 | ||
| Cores | Up to 192C/384T | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-HS829-R1K63P-A | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (437mm) | |
| Depth | 31.6" (803mm) | |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) | |
| Weight | Gross Weight: 69 lbs (31.3 kg) | |
| Net Weight: 39 lbs (17.7 kg) | ||
| Available Color | Black front & sliver body | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s) | |
| 4 (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s) | ||
| Drive Bays / Storage | ||

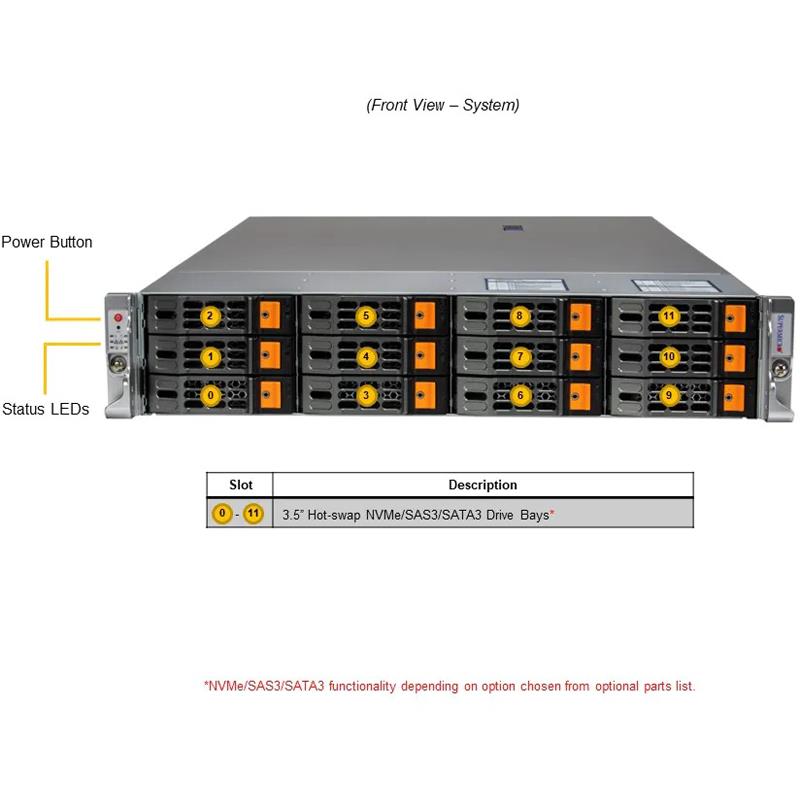

| Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays | |
| M.2 | M-Key, 2280/22110 | |
| 2x NVMe (PCIe 3.0 x4, Boot drive only) | ||
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Note | Operating Temperature based on configurations | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| ***Data Cable Options*** | - | 0 | - | |||
| 12 NVME | CBL-KIT-2025HS-TNR-12N | $ 9.00 | 1 | 12 NVME cable kit | ||
| 12 SAS | AOC-S3816L-L16iT OR AOC-S3916L-H16iRCBL-SAST-1276F-100CBL-SAST-1201F-100 | 1111 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMSlimSAS x8 (STR) to SLL x4 STR,FFC,90CM | |||
| 12 SAS | CBL-CDAT-0845-48 | $ 21.50 | 1 | I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG | ||
| 12 SATA | CBL-MCIO-1255S4Y • | 2 | MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG | |||
| 12 SATA | CBL-CDAT-0845-48 | $ 21.50 | 1 | I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG | ||
| 4 NVME + 8 SATA | CBL-MCIO-1245M5 • | 1 | MCIO x8 (STR to STR),45cm,85OHM | |||
| 4 NVME + 8 SATA | CBL-MCIO-1250M5-Z • | 1 | MCIO x8 (STR to STR),50cm,30AWG | |||
| 4 NVME + 8 SATA | CBL-MCIO-1255S4Y • | 1 | MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG | |||
| 8 NVME + 4 SAS | CBL-MCIO-1245M5 • | 3 | MCIO x8 (STR to STR),45cm,85OHM | |||
| 8 NVME + 4 SAS | CBL-MCIO-1250M5-Z • | 1 | MCIO x8 (STR to STR),50cm,30AWG | |||
| 8 NVME + 4 SAS | AOC-S3808L-L8iT ORAOC-S3908L-H8iR CBL-SAST-1201F-100 | 111 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimSAS x8 (STR) to SLL x4 STR,FFC,90CM | |||
| 8 NVME + 4 SATA | CBL-MCIO-1245M5 • | 3 | MCIO x8 (STR to STR),45cm,85OHM | |||
| 8 NVME + 4 SATA | CBL-MCIO-1250M5-Z • | 1 | MCIO x8 (STR to STR),50cm,30AWG | |||
| 8 NVME + 4 SATA | CBL-MCIO-1255S4Y • | 1 | MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG | |||
| Chassis Rear Handle Kit | MCP-290-21907-0N | 1 | Hyper 2U rear handle kit for immersion cooling | |||
| Drive Bay Dummy Cover | MCP-290-82521-0B | $ 19.00 | 0 | Dummy cover for one 3.5" drive bay | ||
| PCIe Slot 1 (1 by16) | LBL-4000 | $ 13.00 | 1 | Cabled PCIe Slot Warning Label | ||
| PCIe Slot 1 (1 by16) | CBL-MCIO-1226M5R • (All other configurations)(CBL-MCIO-1255M5R) (12 NVME configuration) | 11 | MCIO x8 (STR to RA),26CM,85OHMMCIO X8 (STR to RA), 55cm, 30AWG,85Ohm | |||
| PCIe Slot 1 (1 by16) | CBL-MCIO-1233M5R • (All other configurations)(CBL-MCIO-1255M5R) (12 NVME configuration) | 11 | MCIO x8 (STR to RA),33cm,85OHMMCIO X8 (STR to RA), 55cm, 30AWG,85Ohm | |||
| PCIe Slot 1 (1 by16) | RSC-H-68G5 | $ 84.00 | 1 | 1U LHS Hyper Riser card with one PCIe 5.0 X16 | ||
| PCIe Slot 1 (1 by16) | CBL-PWEX-1136YB-25 | $ 25.00 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG | ||
| PCIe Slot 1 (1 by16) | MCP-240-21108-0N | $ 56.50 | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | ||
| PCIe slot 1+2 (2 by 8) | CBL-PWEX-1136-40 | $ 25.00 | 1 | MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG | ||
| PCIe slot 1+2 (2 by 8) | CBL-MCIO-1233M5R • (All other configurations)(CBL-MCIO-1255M5R) (12 NVME configuration) | 11 | MCIO x8 (STR to RA),33cm,85OHMMCIO X8 (STR to RA), 55cm, 30AWG,85Ohm | |||
| PCIe slot 1+2 (2 by 8) | CBL-MCIO-1232M5 • (All other configurations)(CBL-MCIO-1245M5 •) (12 NVME configuration) | 11 | MCIO x8 (STR to STR),32cm,85OHMMCIO x8 (STR to STR),45cm,85OHM | |||
| PCIe slot 1+2 (2 by 8) | MCP-240-21108-0N | $ 56.50 | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | ||
| PCIe slot 1+2 (2 by 8) | RSC-H-68G5 | $ 84.00 | 1 | 1U LHS Hyper Riser card with one PCIe 5.0 X16 | ||
| PCIe Slot 3 (1 by 16) | LBL-4000 | $ 13.00 | 1 | Cabled PCIe Slot Warning Label | ||
| PCIe Slot 3 (1 by 16) | CBL-GNZ4-1227M5YRR16 | $ 82.00 | 1 | GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm | ||
| PCIe Slot 3 (1 by 16) | CBL-PWEX-1136YB-25 | $ 25.00 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG | ||
| PCIe Slot 3 (1 by 16) | MCP-120-82927-0N | $ 25.00 | 1 | Middle riser support bracket | ||
| PCIe Slot 3 (1 by 16) | MCP-240-21108-0N | $ 56.50 | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | ||
| PCIe Slot 3 (1 by 16) | RSC-H-68G5 | $ 84.00 | 1 | 1U LHS Hyper Riser card with one PCIe 5.0 X16 | ||
| PCIe slot 3+4 (2 by 8) | MCP-240-21108-0N | $ 56.50 | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | ||
| PCIe slot 3+4 (2 by 8) | CBL-GNZ4-1227M5YR21 | $ 9.00 | 1 | GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm | ||
| PCIe slot 3+4 (2 by 8) | CBL-PWEX-1136YB-25 | $ 25.00 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG | ||
| PCIe slot 3+4 (2 by 8) | MCP-120-82927-0N | $ 25.00 | 1 | Middle riser support bracket | ||
| PCIe slot 3+4 (2 by 8) | RSC-H-68G5 | $ 84.00 | 1 | 1U LHS Hyper Riser card with one PCIe 5.0 X16 | ||
| PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) | LBL-4000 | $ 13.00 | 1 | Cabled PCIe slot Warning Label | ||
| PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) | CBL-MCIO-1226AM5 • | 1 | MCIOx8 (STR to STR),26cm,LNRV,30AWG | |||
| PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) | CBL-MCIO-1222AM5 • | 1 | MCIOx8 (STR to STR),22cm,LNRV,30AWG | |||
| PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) | MCP-240-21908-0N | $ 70.50 | 1 | Riser Bracket(4-slot) for RSC-H2-6888G5L | ||
| PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) | RSC-H2-6888G5L | $ 168.00 | 1 | 2U LHS Hyper Riser card with 4 PCIe 5.0 slots | ||
| PCIe slot 5+7 (2 by 16) | LBL-4000 | $ 13.00 | 1 | Cabled PCIe slot Warning Label | ||
| PCIe slot 5+7 (2 by 16) | RSC-H-68G5 | $ 84.00 | 1 | 1U LHS Hyper Riser card with one PCIe 5.0 X16 | ||
| PCIe slot 5+7 (2 by 16) | CBL-MCIO-1226AM5R • | 2 | MCIOx8 (STR to RA),26cm,LNRV,30AWG | |||
| PCIe slot 5+7 (2 by 16) | CBL-PWEX-1136YB-25 | $ 25.00 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG | ||
| PCIe slot 5+7 (2 by 16) | RSC-H-6G5L | $ 75.50 | 1 | 1U LHS Hyper riser card with one PCIe 5.0 X16 slot | ||
| PCIe slot 5+7 (2 by 16) | MCP-240-21908-0N | $ 70.50 | 1 | Riser Bracket(4-slot) for RSC-H2-6888G5L | ||
| PCIe slot 5-8 (4 by 8) | RSC-H2-6888G5L | $ 168.00 | 1 | 2U LHS Hyper Riser card with 4 PCIe 5.0 slots | ||
| PCIe slot 5-8 (4 by 8) | CBL-MCIO-1222AM5 • | 2 | MCIOx8 (STR to STR),22cm,LNRV,30AWG | |||
| PCIe slot 5-8 (4 by 8) | MCP-240-21908-0N | $ 70.50 | 1 | Riser Bracket(4-slot) for RSC-H2-6888G5L | ||
| Rail Set | MCP-290-11903-0N | $ 116.00 | 1 | 30.5" ball-bearing rail set for Hyper servers | ||
| Rail Set | MCP-290-11902-0N (included in the system ) | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-21103-0N | $ 110.00 | 1 | 21.65" ball-bearing rail set for Hyper servers | ||
| Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
| Serial Port DTK Cable with PCIe Bracket | CBL-0010L • | 1 | 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket | |||
| TPM security module | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS | ||
| TPM security module | AOM-TPM-9670H-FIPS | $ 63.50 | 1 | AOM-TPM-9670H-FIPS supporting FIPS 140-2 | ||
| TPM security module | AOM-TPM-9672V | $ 72.00 | 1 | SPI capable vertical TPM 2.0 | ||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
