| Main Specifications |

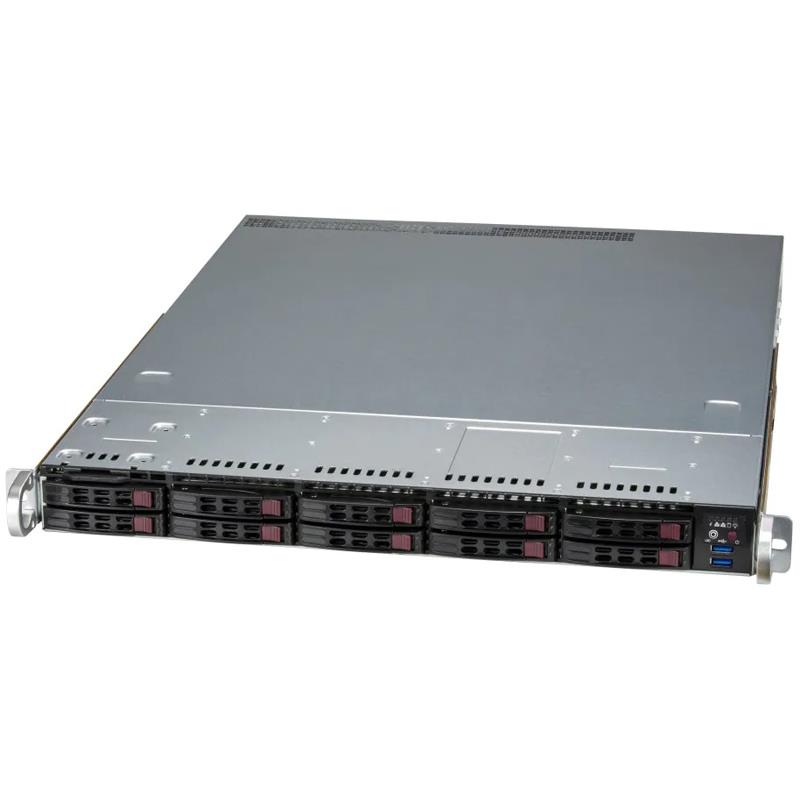

| Device Type | SuperChassis |
| Form Factor | 1U Chassis |
| Supported Motherboards | Support for motherboard size Proprietary 12.3" x 13" |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Weight | Gross Weight 33.5 lbs (15.2 kg) - Net Weight 21 lbs (9.53 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2x Full-height, Full-length expansion slots (Riser Card Required), 1x Low-profile expansion slot (Riser Card Required) |
| Expansion Bays Total (Free) | 10x 2.5" hot-swap SAS3/SATA/NVMe drive bay, SAS or enterprise SATA HDD only recommended |
| Backplane |
| SAS/SATA HDD Backplane | 10-Port 1U 1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13 |
| Front Panel |
| Buttons | Power On/Off button, Unit Identification (UID) button |
| LEDs | Power status LED, HDD activity LED, 2 Network Activity LEDs, Fan Fail/System Over Heat LED |
| System Cooling |
| Fans/Air Shroud | Optional 2x 40x56mm fans for AOC cooling, 4x 40x56mm counter-rotation PWM fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 800W/860W 1U redundant power supply |
| Certification | 80PLUS Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Bracket(s) | 1x MCP-240-00201-0N |
| Hard Drive Backplane | 1x BPN-NVME5-LB16A-S10 |
| Cable(s) | 1x CBL-0335L, 2x CBL-PWCD-0160-IS |
| Parts | 1x MCP-120-00115-0N, 2x MCP-120-00116-0N, 1x MCP-230-00038-0N, 1x MCP-270-00023-0N, 1x MCP-290-00173-0N, 24x MCP-320-00027-0B, 1x MCP-320-00028-0B, 2x MCP-340-00035-0B, 1x MCP-250-00009-0N |
| Front Panel | 1x FPB-FP116-DU3 |
| Drive Trays | 10x MCP-220-00047-0B |
| Power Distributor(s) | 1x PDB-PT116-SL8824 |
| Power Supply Number | 2x PWS-860P-1R2, 1x MCP-250-00009-0N |
| Mounting Rails | 1 set: MCP-290-00063-0N |
| Rear Window | 1x MCP-240-00202-0N |
| Optional Parts List |
| Optional Air shroud | MCP-310-81306-0B |
| Optional Drive Trays | MCP-220-00167-0B, MCP-220-00120-0B |
| Optional Front bezel | MCP-210-11601-0B |
| Optional Rail | MCP-290-00056-0N |
