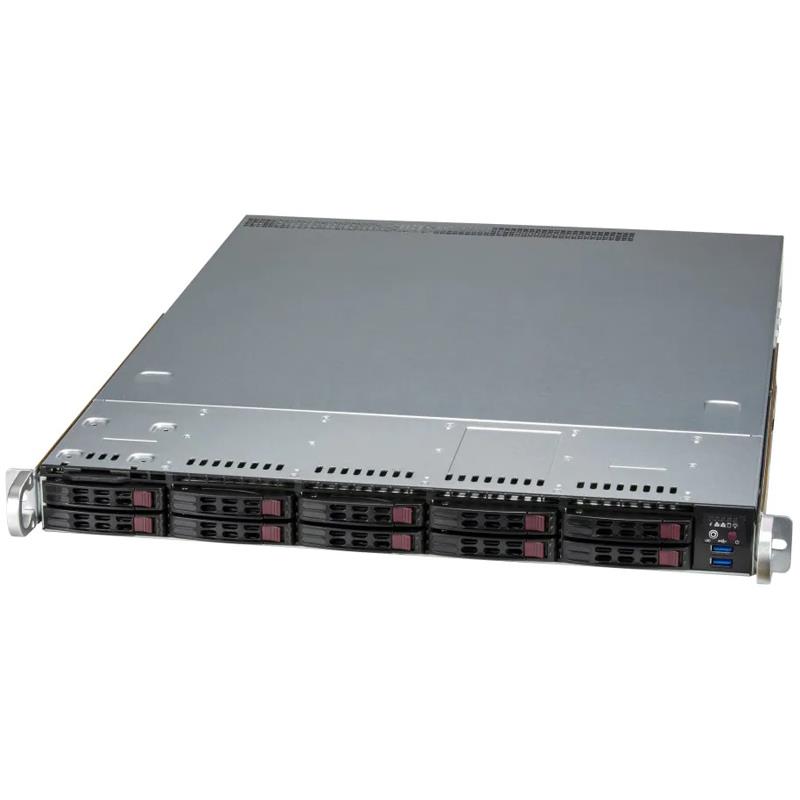

Supermicro CSE-116BAC10-R860W 1U Rackmount 800W/860W Power supply

Ten 2.5in hot-swap SAS3/SATA/NVMe drive bay
Equipped with 860W power supply Platinum level
Support motherboard sizes Proprietary 12.3" x 13"
Hybrid Backplane for SAS3/SATA3/NVME5 for X13 CloudDC

1U Rackmount 800W/860W Redundant Platinum Certified Power Supply, Optimized for motherboards sizes Proprietary 12.3" x 13", Support Single and Dual Intel / AMD Processors, Includes: 10x 2.5in Hot-Swap SAS3/SATA/NVMe Drive Bay, 2x Full-Height, Full-Length Expansion Slot (Riser Card Required), 1x Low-profile Expansion Slot (Riser Card Required), (CSE-116BAC10-R860W)

1. Optimized for X13 WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
2. 10 x 2.5" hot-swap SAS3/SATA drive bay
3. 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
4. 1U Redundant 860W Single Output Power Supply Platinum level, 54.5mm width
5. 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
6. 4 x 40x56mm counter-rotation PWM fan(s)

Extra Specifications for Supermicro CSE-116BAC10-R860W 1U Rackmount 800W/860W Power supply

System Monitoring
System Monitoring	Chassis intrusion switch
Power Supply
Certification	Platinum Certified
Power Efficiency	94+%
Total Output Power and Input	800W with Input 100 - 127Vac
	860W with Input 200 - 240Vac
	860W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	322 x 54.5 x 40.25 mm
Output Type	Backplanes (gold finger)
+12V	Max: 71.6A / Min: 0A (200Vac - 240Vac)
	Max: 66.6A / Min: 0A (100Vac - 127Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	O/P: 12V/80
	+5V Max: 25A
	+3.3V Max: 25A
	-12V Max: 0.6A
	PDB-PT116-SL8824
Product SKUs
Product SKUs	CSE-116BAC10-R860W
Form Factor
Form Factor	1U chassis support for motherboard size Proprietary 12.3" x 13"
Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Dimensions
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	23.5" (597 mm)
Gross Weight	33.5 lbs (15.2 kg)
Net Weight	21 lbs (9.53 kg)
Packaging (W x H x L)	23.5" (597 mm) x 7.75" (197 mm) x 31.5" (800 mm)
Available Color	Black
Expansion Slots
Expansion Slots	2x Full-height, Full-length expansion slot(s) (Riser Card Required)
	1x Low-profile expansion slot(s) (Riser Card Required)
Drive Bays
Drive Bays	SAS or enterprise SATA HDD only recommended
	10x 2.5" hot-swap SAS3/SATA/NVMe drive bay
Backplane
Backplane	10-Port 1U 1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13
Front Panel
Button	Power On/Off button
	Unit Identification (UID) button
LED	Power status LED
	HDD activity LED
	2 Network Activity LEDs
	Fan Fail/System Over Heat LED
Systems Cooling
Fans	Optional 2x 40x56mm fans for AOC cooling
	4x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	UL/CUL
	UL/CB

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-116BAC10-R860W 1U Rackmount 800W/860W Power supply

$ 1,219.00$ 1,219.001219.0USD

$ 1,219.00
