- Supermicro SYS-5019S-L Compact Single Intel Processor Barebone

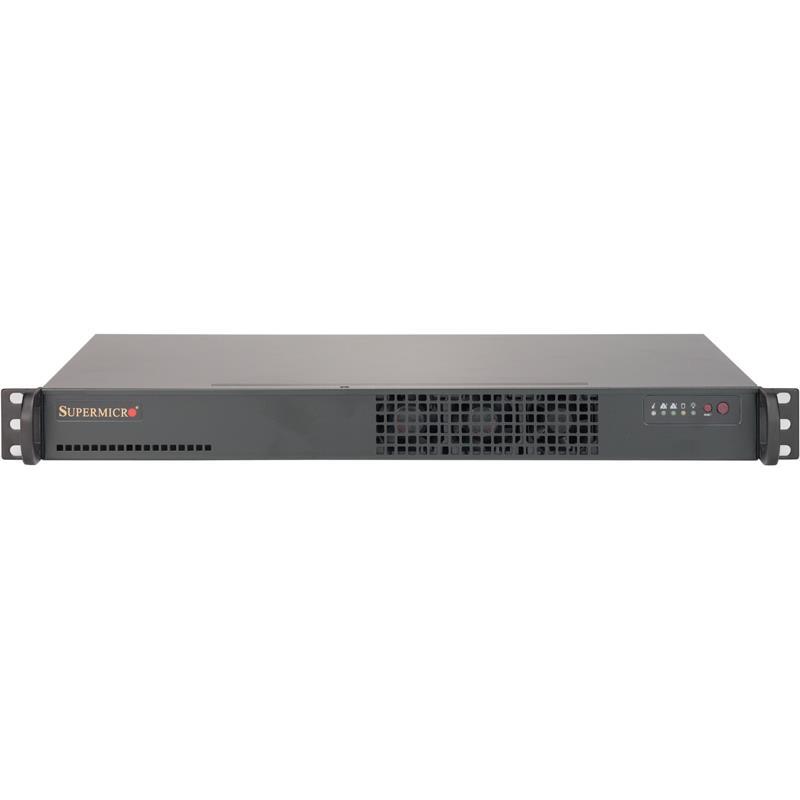

Supermicro SYS-5019S-L Compact Single Intel Processor Barebone
• Mainstream, Entry Appliance
• Low Power, Cost effective
SuperServer 1U Rack Single Socket H4 (LGA 1151) supports Intel Xeon E3-1200 v5, Intel 6th Gen. Core i3 series processors - Supports up to 64GB ECC UDIMM DDR4 (4x 288-pin slots) - On-Board : SATA3 (6Gbps) via Intel C232 controller (RAID), IPMI 2.0, 2x Gigabit LAN, VGA - Includes : 1x 3.5in or 2x 2.5in (option) internal drive bays, 1x PCI-E 3.0 x8 AOC slot, 1x Heatsink, 200W 80 Plus Gold Level Power Supply, X11SSL-F Motherboard, CSE-510-203B 1U Chassis
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series
2. Intel® C232 chipset
3. 1 Fixed 3.5" drive support (default); Up to 2 Fixed 2.5" drives (opt.)
4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x8 AOC slot
6. 2 GbE ports with Intel® i210-AT, 1 Dedicated IPMI port
7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
9. 200W Multi-output power supply
Extra Specifications for Supermicro SYS-5019S-L Compact Single Intel Processor Barebone
| Motherboard | ||
| Motherboard | Super X11SSL-F | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Up to 64GB DDR4 ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C232 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via C232 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Dual Intel® I210-AT Gigabit Ethernet LAN ports | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 DedicatedIPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| 6 USB 2.0 ports (2 rear + 4 headers) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port (1 rear) | |
| SuperDOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of 5 fan headers supporting up to 5 fans | ||
| 4 fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| I 2 C temperature sensing logic | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| LED | UID/Remote UID | |
| Suspend static indicator LED | ||
| System Information LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| RoHS, Halogen Free | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-510-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 11.3" (287mm) | |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) | |
| Weight | Net Weight: 8.45 lbs (3.83 kg) | |
| Gross Weight: 12.55 lbs (5.69 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 AOC slot | |
| Drive Bays | ||
| Fixed | 1 3.5" or 2x 2.5" internal drive bays (fixed) | |
| System Cooling | ||
| Fans | 2x 40x28mm 4-pin PWM Cooling Fans | |
| 1x FAN-0147L4 option for 80W CPU | ||
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Processor | ||
| CPU | Single Socket H4 (LGA 1151) supports: | |
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 | ||
| CPU TDP up to 45W, 80W option fan | ||
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors | |
| Product SKUs | ||
| Product SKUs | SuperServer 5019S-L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSL-F | 1 | Super X11SSL-F Motherboard | |
| Motherboard / Chassis | CSE-510-203B | 1 | 1U Chassis | |
| Cable 1 | CBL-0061L | 1 | SATA,INT,FLAT,31.5CM,26AWG | |
| Manual | MNL-1796-QRG | 1 | 5019S-L,QRG,HF,RoHS/REACH | |
| Heatsink / Retention | SNK-P0046P | 1 | 1U PASSIVE CPU HS FOR INTEL LGA1156 | |
| Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS | |
| FAN 1 | FAN-0106L4 | 2 | High current (0.14A) version of Fan-0100L4 (40x28mm PWM) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Internal 2.5" HDD Tray (FDD slot) | MCP-220-00044-0N | $ 17.50 | 0 | Dual 2.5" fixed HDD bracket (without DVD) | ||
| Internal 2.5" HDD Tray (DVD slot) | MCP-220-00051-0N | $ 19.00 | 0 | Single 2.5" fixed HDD bracket | ||
| Cable for internal HDD | CBL-0484L | $ 17.00 | 0 | 55cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBl-0082L | 0 | Y split, big 4 pin to two RA SATA power extension 15cm | |||
| Cooling Fan | FAN-0147L4 | $ 28.00 | 1 | 40x40x28mm 17.5K RPM, SC813M Middle Cooling Fan | ||
| Riser Card | RSC-RR1U-E16 | $ 33.50 | 1 | 1U riser card | ||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
