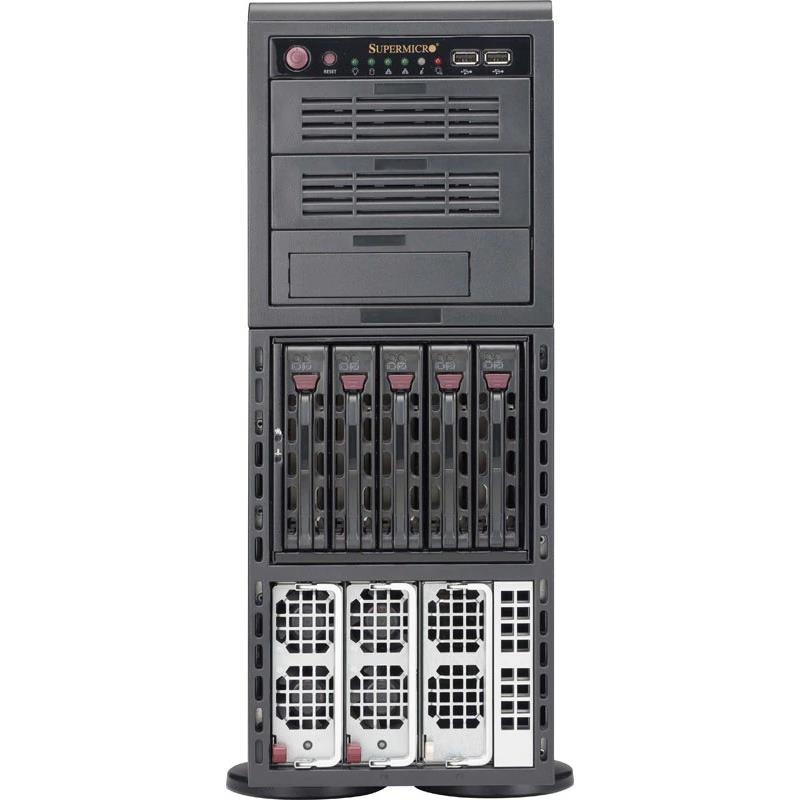

Supermicro SYS-8048B-C0R4FT 4U Barebone Quad Intel Processor

Barebone 4U Rack 4x Socket R1-2011 for up to four Xeon E7-8800 v4/v3 , E7-4800 v4/v3 family processors - Supports up to 4TB DDR4 up to 1866MHz ECC 3SDS LRDIMM in 32 DIMM slots - On-Board : SAS2 6Gbps via LSI 3008 controller, SATA3 6Gbps (RAID 0, 1), SATA2 3Gbps (RAID 0, 1, 5, 10), IPMI 2.0, 2x X540 10GBase-T LAN, VGA - Includes : 5x 3.5in Hot-swap Drive Bays, 4x Heatsinks, 1400W Redundant Digital 80 Plus Platinum Level Power Supply, MBD-X10QBL-4CT Motherboard, SC748TQ-R1K43B 4U Chassis - (Black)


    3,794.003,794.003794.0USD

    3,794.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    1. Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
    2. Up to 4TB DDR4 (128GB 3DS LRDIMM), up to 1866MHz; 32x DIMM slots
    3. 2x PCI-E 3.0 x16 FH slot; 2x PCI-E 3.0 x8 FH slot
    4. Intel® X540 Dual port 10GBase-T
    5. I/O ports: 2x 10GBase-T, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
    6. 5x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard Broadcom 3008
    7. 3x 9cm + 3x 8cm Heavy Duty fans with speed control
    8. 1400W Redundant Digital PS Platinum Level (95%)

    Extra Specifications for Supermicro SYS-8048B-C0R4FT 4U Barebone Quad Intel Processor

    Product SKUs
    SYS-8048B-C0R4FTSuperServer 8048B-C0R4FT ( Black )
    Motherboard

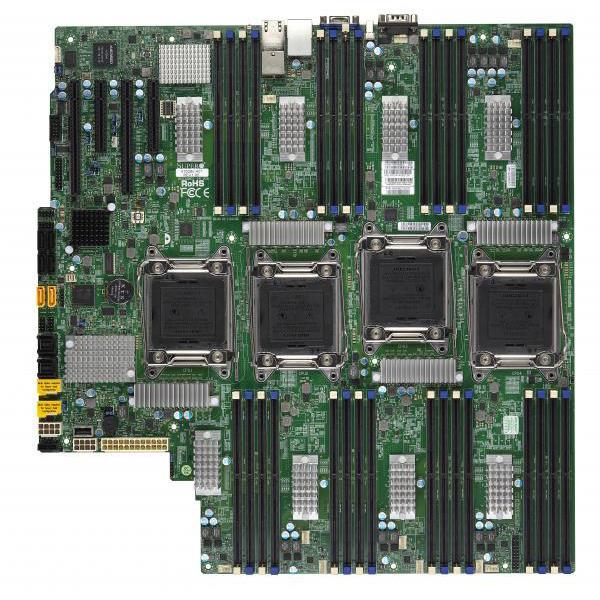

    MotherboardSuper X10QBL-4CT
    Processor/Cache
    CPUIntel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
    Quad Socket R1 (LGA 2011)
    CacheUp to 60 MB
    System BusQPI up to 9.6 GT/s
    System Memory
    Memory Capacity32x 288-pin DDR4 DIMM slots
    Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots
    Memory Type1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes128GB, 64GB, 32GB, 16GB, 8GB, 4GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C602J chipset
    SASSAS2 (6Gbps) via Broadcom 3008 controller
    SATASATA3 (6Gbps) with RAID 0, 1
    SATA2 (3Gbps) with RAID 0, 1, 5, 10
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    ASPEED AST2400 BMC
    Network ControllersVirtual Machine Device Queues reduce I/O overhead
    1x Realtek RTL8201F PHY (dedicated IPMI)
    Intel® X540 Dual Port 10GBase-T
    Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    GraphicsASPEED 2400
    Input / Output
    SAS8x SAS2 ports (6Gbps)
    LAN2x RJ45 10GBase-T ports
    1x dedicated LAN port for IPMI on AOM
    USB3x USB 2.0 rear ports
    Serial Port / Header2x Fast UART 16550 ports: 1 rear and 1 header
    DOM2x DOM (Disk on Module) power connectors
    System BIOS
    BIOS Type128MB SPI Flash EEPROM with AMI® BIOS
    BIOS FeaturesUSB Keyboard support
    Plug and Play (PnP)
    PCI 2.2
    ACPI up to 3.0
    Chassis
    Form Factor4U Rackmount/Tower
    ModelCSE-748TQ-R1K43B
    Dimensions and Weight
    Height18.2" (462mm)
    Width7.0" (178mm)
    Depth28.4" (721mm)
    WeightNet Weight: 65.5 lbs (29.7 kg)
    Gross Weight: 86.0 lbs (39.0 kg)
    Available ColorsBlack
    Drive Bays
    Hot-swap5x 3.5" Hot-swap Drive Bays
    Expansion Slots
    PCI-Express2x PCI-E 3.0 x16 Full-heigh slot
    2x PCI-E 3.0 x8 Full-heigh slot
    Backplane
    BackplaneSAS/SATA HDD Backplane
    System Cooling
    Fans3x 9cm Heavy Duty fans with speed controlCooling Fans
    3x 8cm Heavy Duty fans with speed controlCooling Fans
    Shrouds1x Air Shroud (MCP-310-74806-0B)
    Power Supply
    Power SupplyRedundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
    AC Voltage100-240 V, 50-60 Hz, 15 Amp max
    +12V100 Amp/115 Vac
    117 Amp/230 Vac
    With Power Distributor+5V: 30 Amp
    +3.3V: 25 Amp
    -12V: 0.6 Amp
    CertificationPlatinum Certified
    PC Health Monitoring
    CPUMonitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
    4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
    FAN4-pin fan headers with tachometer status monitoring
    Low noise fan speed control mode
    TemperatureMonitoring for CPU and system environment
    Thermal Control for 9x fan connectors
    Other FeaturesChassis intrusion detection
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    NamePart NumberQuantityDescription
    ChassisCSE-748TQ-R1K43B1CSE-748TQ-R1K43B Chassis
    MotherboardX10QBL-4CT1Super X10QBL-4CT Motherboard
    Air ShroudMCP-310-74806-0B1Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH
    Backplane CSE-SAS-M35TQ1M35 SAS BACKPLANE W/AMI MG9072
    Cable 1CBL-SAST-06162MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
    LabelLBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    PartsMCP-260-00088-0N1Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH
    Heatsink / RetentionSNK-P0048PS42U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
    Power SupplyPWS-1K43F-1R21400W redundant digital power supply
