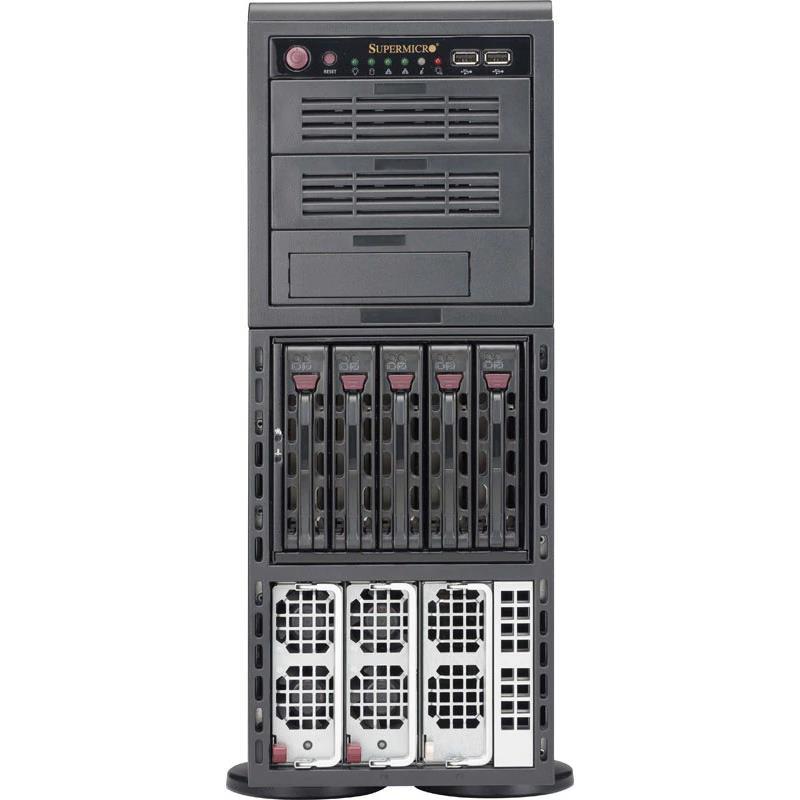

Supermicro SYS-8048B-C0R4FT 4U Barebone Quad Intel Processor
Barebone 4U Rack 4x Socket R1-2011 for up to four Xeon E7-8800 v4/v3 , E7-4800 v4/v3 family processors - Supports up to 4TB DDR4 up to 1866MHz ECC 3SDS LRDIMM in 32 DIMM slots - On-Board : SAS2 6Gbps via LSI 3008 controller, SATA3 6Gbps (RAID 0, 1), SATA2 3Gbps (RAID 0, 1, 5, 10), IPMI 2.0, 2x X540 10GBase-T LAN, VGA - Includes : 5x 3.5in Hot-swap Drive Bays, 4x Heatsinks, 1400W Redundant Digital 80 Plus Platinum Level Power Supply, MBD-X10QBL-4CT Motherboard, SC748TQ-R1K43B 4U Chassis - (Black)
This product is no longer available.
1. Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
2. Up to 4TB DDR4 (128GB 3DS LRDIMM), up to 1866MHz; 32x DIMM slots
3. 2x PCI-E 3.0 x16 FH slot; 2x PCI-E 3.0 x8 FH slot
4. Intel® X540 Dual port 10GBase-T
5. I/O ports: 2x 10GBase-T, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
6. 5x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard Broadcom 3008
7. 3x 9cm + 3x 8cm Heavy Duty fans with speed control
8. 1400W Redundant Digital PS Platinum Level (95%)
Extra Specifications for Supermicro SYS-8048B-C0R4FT 4U Barebone Quad Intel Processor
| Motherboard | ||
| Motherboard | Super X10QBL-4CT | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) | |
| Quad Socket R1 (LGA 2011) | ||
| Cache | Up to 60 MB | |
| System Bus | QPI up to 9.6 GT/s | |
| System Memory | ||
| Memory Capacity | 32x 288-pin DDR4 DIMM slots | |
| Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots | ||
| Memory Type | 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C602J chipset | |
| SAS | SAS2 (6Gbps) via Broadcom 3008 controller | |
| SATA | SATA3 (6Gbps) with RAID 0, 1 | |
| SATA2 (3Gbps) with RAID 0, 1, 5, 10 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| 1x Realtek RTL8201F PHY (dedicated IPMI) | ||
| Intel® X540 Dual Port 10GBase-T | ||
| Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Graphics | ASPEED 2400 | |
| Input / Output | ||
| SAS | 8x SAS2 ports (6Gbps) | |
| LAN | 2x RJ45 10GBase-T ports | |
| 1x dedicated LAN port for IPMI on AOM | ||
| USB | 3x USB 2.0 rear ports | |
| Serial Port / Header | 2x Fast UART 16550 ports: 1 rear and 1 header | |
| DOM | 2x DOM (Disk on Module) power connectors | |
| System BIOS | ||
| BIOS Type | 128MB SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Chassis | ||
| Form Factor | 4U Rackmount/Tower | |
| Model | CSE-748TQ-R1K43B | |
| Dimensions and Weight | ||
| Height | 18.2" (462mm) | |
| Width | 7.0" (178mm) | |
| Depth | 28.4" (721mm) | |
| Weight | Net Weight: 65.5 lbs (29.7 kg) | |
| Gross Weight: 86.0 lbs (39.0 kg) | ||
| Available Colors | Black | |
| Drive Bays | ||
| Hot-swap | 5x 3.5" Hot-swap Drive Bays | |
| Expansion Slots | ||
| PCI-Express | 2x PCI-E 3.0 x16 Full-heigh slot | |
| 2x PCI-E 3.0 x8 Full-heigh slot | ||
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane | |
| System Cooling | ||
| Fans | 3x 9cm Heavy Duty fans with speed controlCooling Fans | |
| 3x 8cm Heavy Duty fans with speed controlCooling Fans | ||
| Shrouds | 1x Air Shroud (MCP-310-74806-0B) | |
| Power Supply | ||
| Power Supply | Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | 100-240 V, 50-60 Hz, 15 Amp max | |
| +12V | 100 Amp/115 Vac | |
| 117 Amp/230 Vac | ||
| With Power Distributor | +5V: 30 Amp | |
| +3.3V: 25 Amp | ||
| -12V: 0.6 Amp | ||
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. | |
| 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V | ||
| FAN | 4-pin fan headers with tachometer status monitoring | |
| Low noise fan speed control mode | ||
| Temperature | Monitoring for CPU and system environment | |
| Thermal Control for 9x fan connectors | ||
| Other Features | Chassis intrusion detection | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 8048B-C0R4FT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Chassis | CSE-748TQ-R1K43B | 1 | CSE-748TQ-R1K43B Chassis | |
| Motherboard | X10QBL-4CT | 1 | Super X10QBL-4CT Motherboard | |
| Air Shroud | MCP-310-74806-0B | 1 | Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH | |
| Backplane | CSE-SAS-M35TQ | 1 | M35 SAS BACKPLANE W/AMI MG9072 | |
| Cable 1 | CBL-SAST-0616 | 2 | MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Parts | MCP-260-00088-0N | 1 | Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH | |
| Heatsink / Retention | SNK-P0048PS | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-1K43F-1R | 2 | 1400W redundant digital power supply |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Mobile Rack | CSE-M35TQCSE-M28SACB-OEM | 11 | SAS2 5x 3.5" HDDSAS3 8x 2.5" HDD | |||
| Tray | MCP-220-00080-0B | $ 26.50 | 0 | Black hotswap 3.5 to 2.5 HDD tray | ||
| Tray | MCP-220-00010-01 | $ 21.50 | 1 | Black 5.25" tray | ||
| Mounting Rails | MCP-290-00059-0BMCP-290-00058-0N | 11 | 26.5" to 36.4" rail set + handles, Quick Release for 4U 17.2"W towerShort rail set, quick/quick, optional for 2~4U 17.2" W | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
