Supermicro SSG-6028R-E1CR16T 2U Storage Barebone Dual Processor
Memory capacity of up to 2TB using 16 DIMM slots
Supporting Intel Xeon processor E5-2600 v4/v3 family
Equipped with 1000W redundant Titanium-level power supplies
SAS3 (12Gbps) via Broadcom 3108 controllers, HW RAID 0,1,5,6,10,50,60

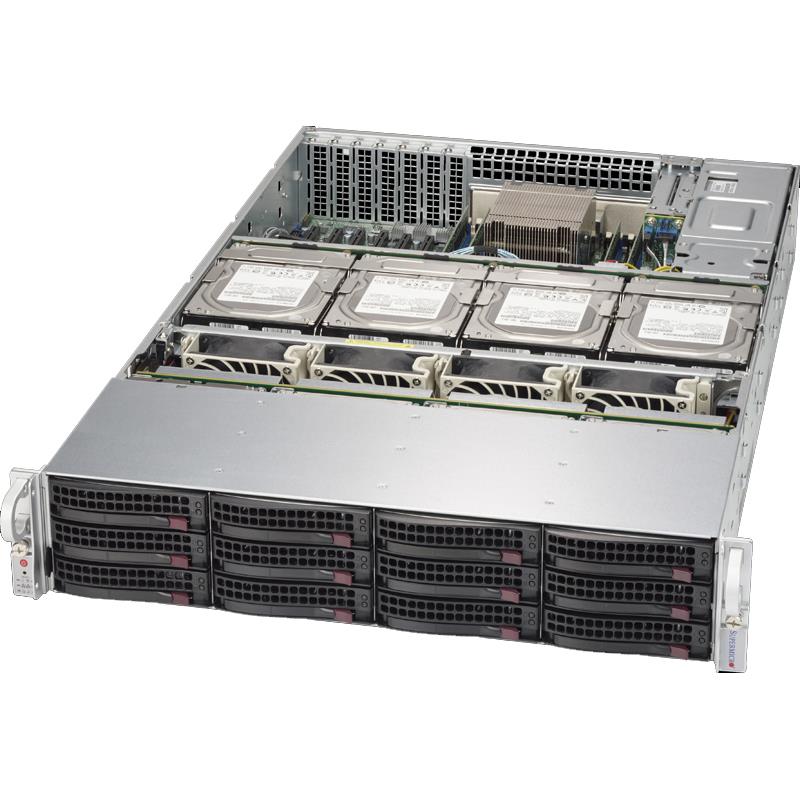

Barebone 2U SuperStorage Server - Supports up to two Intel Xeon E5-2600 v3 family processors, QPI up to 9.6 GT/s - Supports up to 1.0TB DDR4 ECC LRDIMM up to 2133MHz (16x 288-pin DIMM sockets) - On-Board : SAS 12Gbps via LSI 3108 controller (HW RAID), IPMI 2.0, 2x 10GBase-T LAN, VGA - Includes : 16x 3.5in Hot-Swap SAS3 Drive Bays, Optional 2x 2.5in Hot-swap HDD bays (rear), 2x Heatsinks, 1000W Redundant 80 Plus Titanium Level Certified Power Supply, X10DRH-CT Motherboard, CSE-829HTS-R1K02LPB 2U Chassis - (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8
4. Dual 10GBase-T LAN w/ Intel® X540
5. 16x 3.5" Hot-swap drive bays: 12x 3.5" Hot-swap SAS3 drive bays and 4x NVMe hybrid drive bays (SAS3/SATA3/NVMe*); 2x 2.5" Hot-swap SATA drive bays (rear)
6. SAS3 via Broadcom 3108 controller, HW RAID
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 4x 8cm hot-swap redundant PWM cooling fans
9. 1000W Redundant Power Supplies Titanium Level
Extra Specifications for Supermicro SSG-6028R-E1CR16T 2U Storage Barebone Dual Processor
| Motherboard | ||

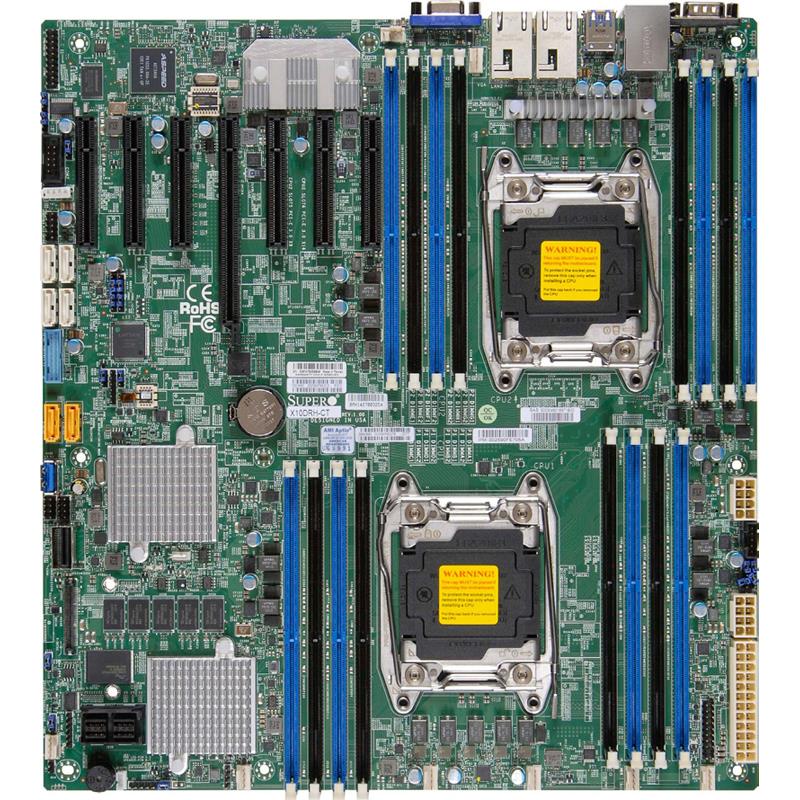

| Motherboard | Super X10DRH-CT | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3108 controllers; HW RAID 0,1,5,6,10,50,60 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1 Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® X540 Dual Port 10GbE | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SAS | 16 SAS3 (12Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| 1 Type A | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-829HTS-R1K02LPB | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.5" (647mm) | |
| Weight | Gross Weight: 58 lbs (26.3 kg) | |
| Net Weight: 34 lbs (15.4 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| 6 PCI-E 3.0 x8 slots | ||
| Drive Bays | ||
| Hot-swap | 16x 3.5" Hot-swap SAS3 drive bays | |
| Optional | 2x 2.5" Hot-swap SATA drive bays (rear) | |
| Backplane | ||
| Backplane | SAS3 expander backplane | |
| System Cooling | ||
| Fans | 4x 8cm hot-swap redundant PWM cooling fans | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6028R-E1CR16T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRH-CT | 1 | Super X10DRH-CT Motherboard | |
| Motherboard / Chassis | CSE-829HTS-R1K02LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-826EL1-N4 | 1 | 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Backplane | BPN-SAS3-829HA-A4 | 1 | 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0568 | 2 | MINI SAS HD,12G,INT,35CM,30AWG | |
| Parts | MCP-220-82609-0N | 1 | Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0048AP4 | 1 | 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32 | |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH | |
| FAN 1 | FAN-0118L4 | 4 | 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot | |
| Drive Tray(s) | MCP-220-00075-0B | 12 | Black 3.5" HDD tray | |
| Drive Tray(s) | MCP-220-82903-0N | 4 | Internal mid tray with handle for SC829H |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 Cache Protection | BTR-TFM8G-LSICVM02BKT-BBU-BRACKET-05 | 11 | SuperCap ModuleMounting PCIe Card | |||
| Drive Kit | MCP-220-82616-0N | $ 112.00 | 1 | 12G 2x 2.5" Drive Kit w/ Status LED (216B/826B/417B/846X/847B) | ||
| 4 NVMe Drives Support | AOC-SLG3-2E4RCBL-SAST-0590MCP-220-00116-0B | 244 | NVMe AOCInternal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s, 70cm3.5" to 2.5" NVMe drive tray | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
